Distances
A Air intake
B Air outlet
C Mounting surface in control cabinet
d
top
Distance top
d
bot
Distance bottom
d
hor
Distance horizontal

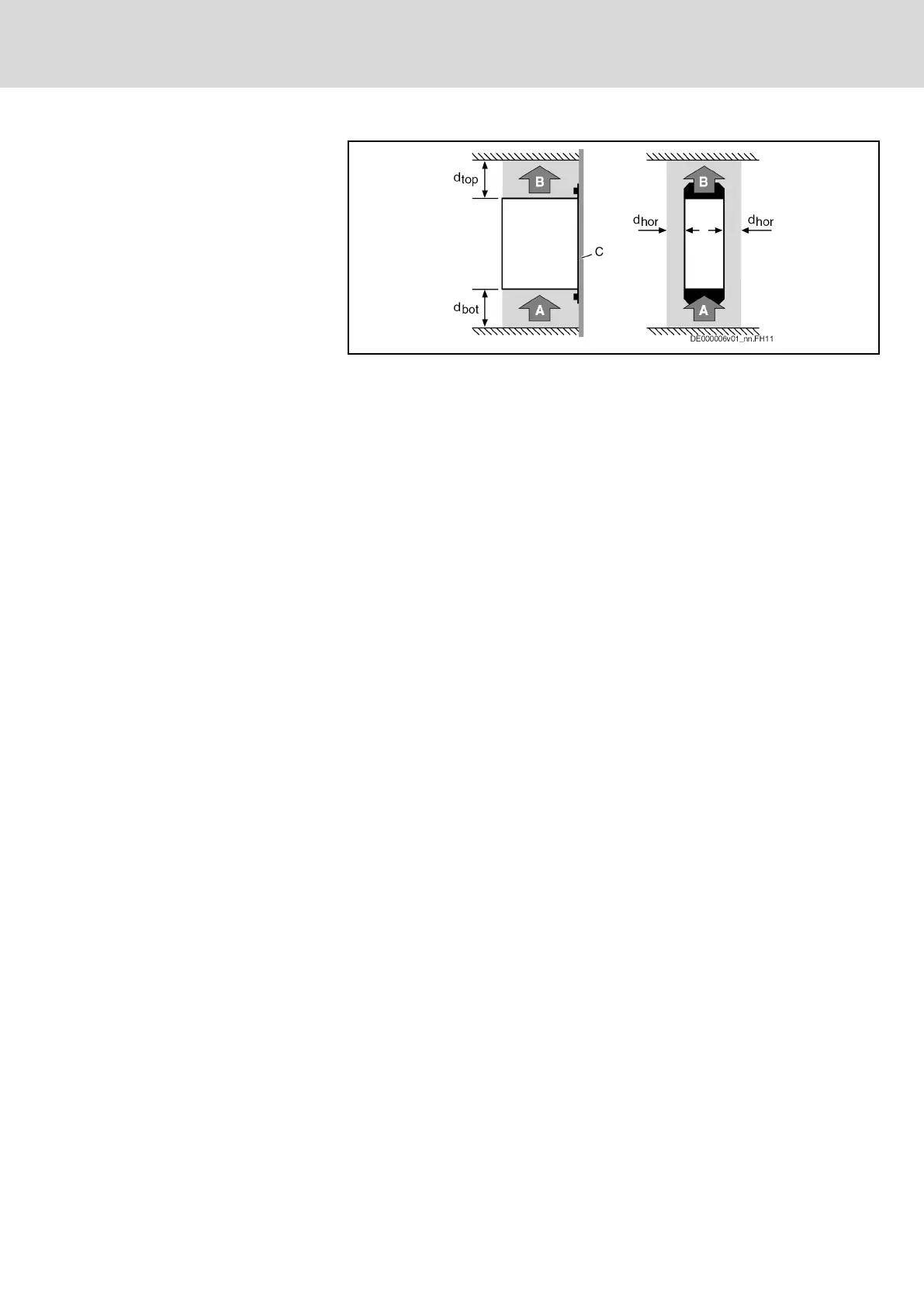

Fig. 2-1: Air intake and air outlet at device
IndraDrive Drive Controllers Power Sections HCS02 7/21
Ratings and dimensions
R911319657_Edition 09 Bosch Rexroth AG
