Bosch Rexroth IndraDrive - Wiring and Connection Details

4.2 Connection
4.2.1 Connection diagram
X1, L+/L- Not available for HCS02.1E-W0012
X9 Not available for HCS02.1E-W0012 and –W0028

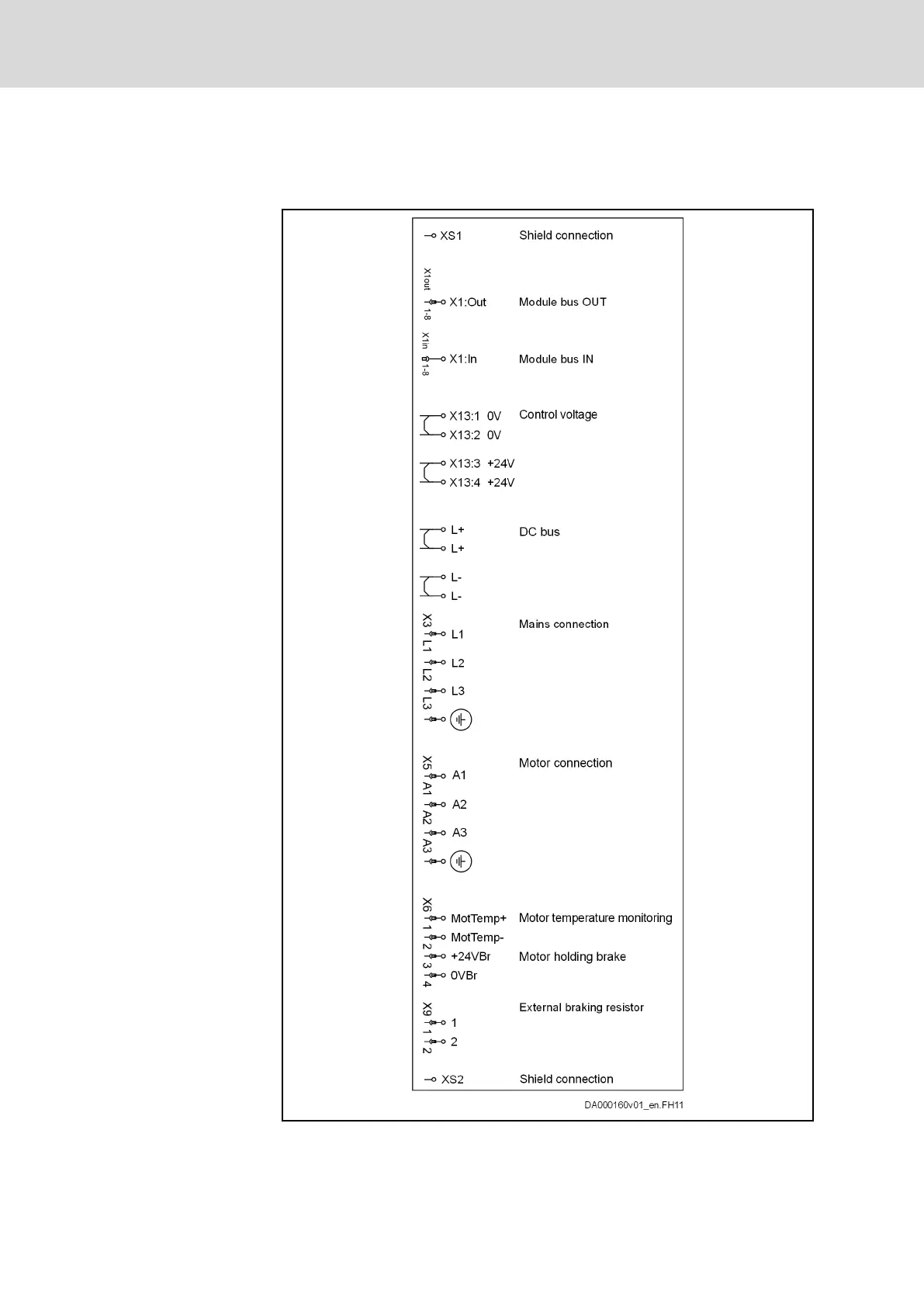

Fig. 4-1: Overall Connection Diagram
14/21
Instructions for use
IndraDrive Drive Controllers Power Sections HCS02
Bosch Rexroth AG R911319657_Edition 09
