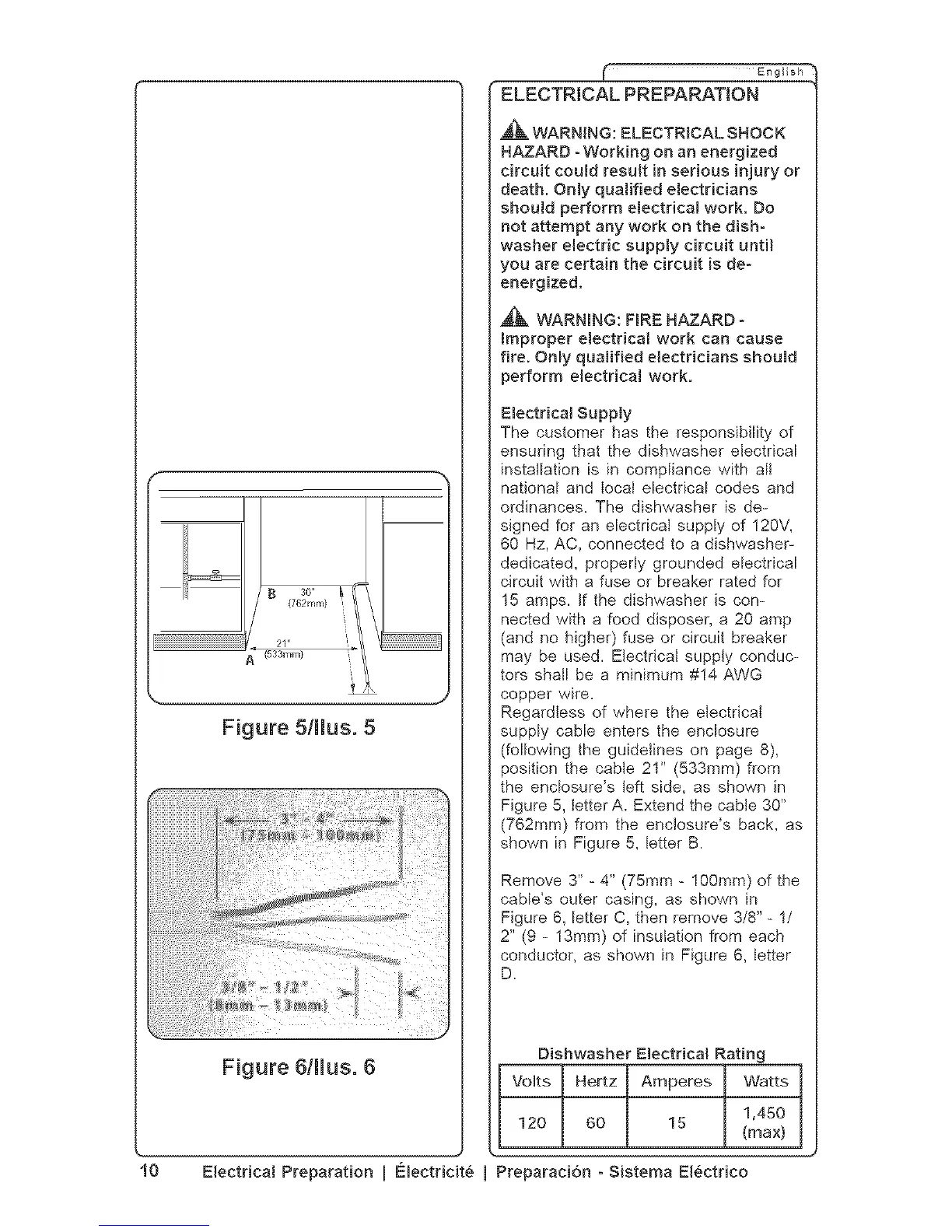

Figure 5/Hus. 5
Figure 6/Hus. 6
I0 Electrical Preparation I [_lectricite
Eog__h
ELECTRICAL PREPARATION
,_ WARNING: ELECTRICAL SHOCK
HAZARD -Working on an energized
circuit could result in serious injury or
death. Only qualified electricians
should perform electrical work. Do
not attempt any work on the dish-
washer electric supply circuit until
€ou are certain the circuit is de-
energized.
,_ WARNING: FmREHAZARD -
_mproper electrical work can cause
fire. Only qualified electricians should
perform electrical work.
Electrical Supply
The customer has the responsibility of
ensuring that the dishwasher electrical
installation is in compliance with all
national and Iocat electrical codes and
ordinances. The dishwasher is de-
signed for an electrical supply of 120V,
60 Hz, AC, connected to a dishwasher-
dedicated, properly grounded electrical
circuit with a fuse or breaker rated for
15 amps. If the dishwasher is con-
nected with a food disposer, a 20 amp
(and no higher) fuse or circuit breaker
may be used. ElectricaJ suppty conduc-
tors shatl be a minimum #14 AWG
copper wire.
Regardless of where the electrical
supply cable enters the enclosure
(following the guidelines on page 8),
_osition the cable 21" (533mm) from
the enclosure's left side, as shown in
Figure 5, Ietter A. Extend the cable 30"
(762mm) from the enclosure's back, as
shown in Figure 5, letter B.
Remove 3"-4" (75mm- 100mm)of the
cable's outer casing, as shown in
Figure 6, letter C, then remove 3/8" - 1/
2" (9 - 13ram) of insulation from each
conductor, as shown in Figure 6, letter
D.
Dishwasher Electrical Rating
Volts Hertz Amperes Watts
120 60 15 1,450
(max}
