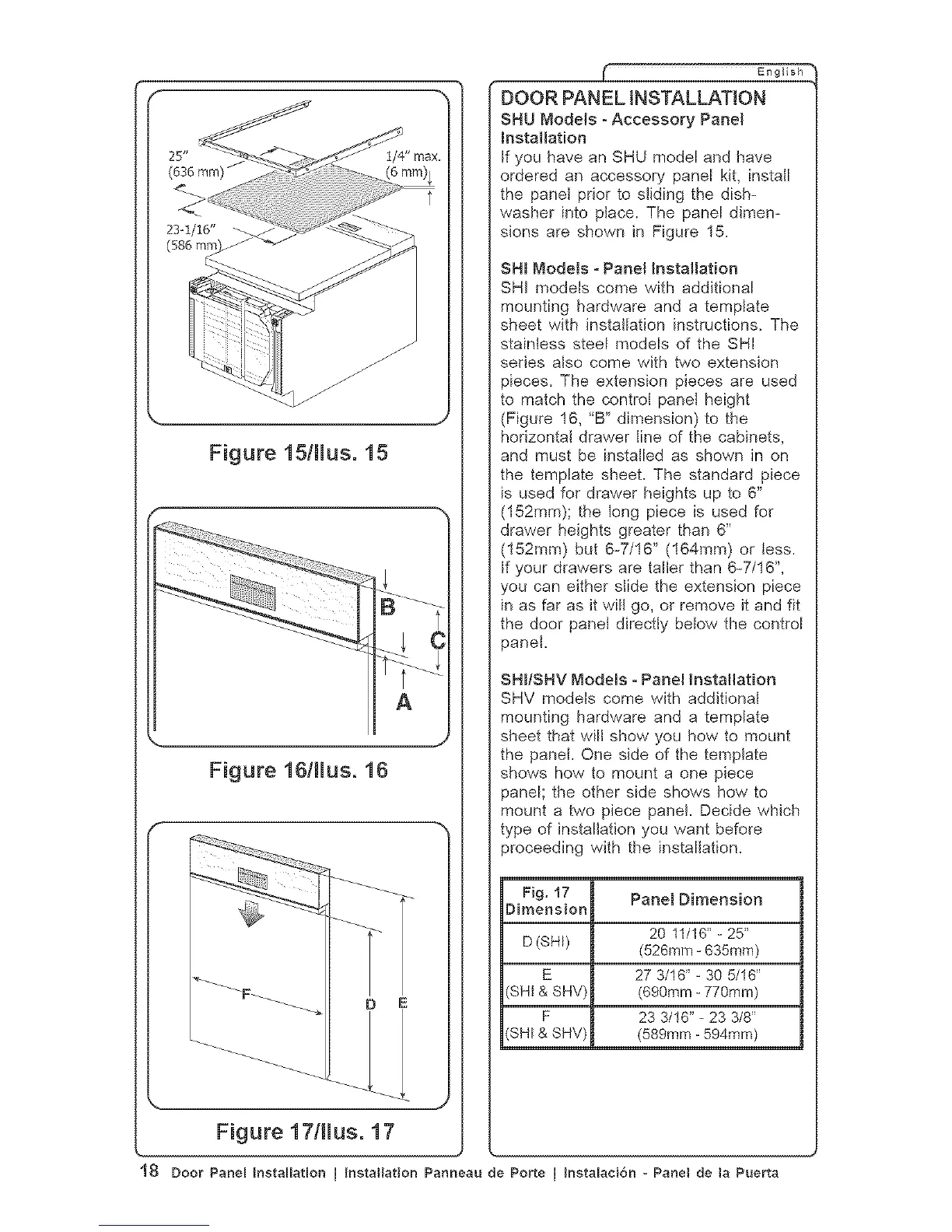

DOOR PANEL INSTALLATION
SHU Models - Accessory Pane_
_nstaHat[on
If you have an SHU model and have
ordered an accessory panel kit, install
the panel prior to sliding the dish-
washer into place. The panel dimen-
sions are shown in Figure 15.
Sill Models oPanel Installation
SIll modets come with additional
mounting hardware and a template
sheet with installation instructions. The
stainless steel models of the SHI
series also come with two extension
3ieces. The extension pieces are used
to match the controt panet height
(Figure 16, "B' dimension) to the
horizontal drawer line of the cabinets,
and must be installed as shown in on
the template sheet. The standard piece
is used for drawer heights up to 6"
(152mm); the tong piece is used for
drawer heights greater than 6"
(t52mm) but 6-7/16' (164mm) or less.
If your drawers are talter than 6-7/t6",
you can either stide the extension piece
in as far as it wilt go, or remove it and fit
the door panet directly below the control
_anel.
SH_/SHV Models - Panel Installation
SHV models come with additional
mounting hardware and a template
sheet that wilt show you how to mount
the panel. One side of the template
shows how to mount a one piece
_anel; the other side shows how to
mount a two piece panel. Decide which
type of installation you want before
proceeding with the installation.
Fig, 17 Panel Dimension
Dimension
20 11/16" - 25"
D(SHI) (526mm - 635mm)
E 27 3/16" - 30 5/16"
(SHt & SHV) (690mm - 770mm)
F 23 3/16" - 23 3/8"
(SHI & SHV) (589mm - 594mm)
Figure 17/talus. 17
