Bosch SHX46A Installation Instructions

Figure 22 Figure 23
Hus. 22 Hus. 23
Figure 24 Figure 25
Hus. 24 Hus. 25

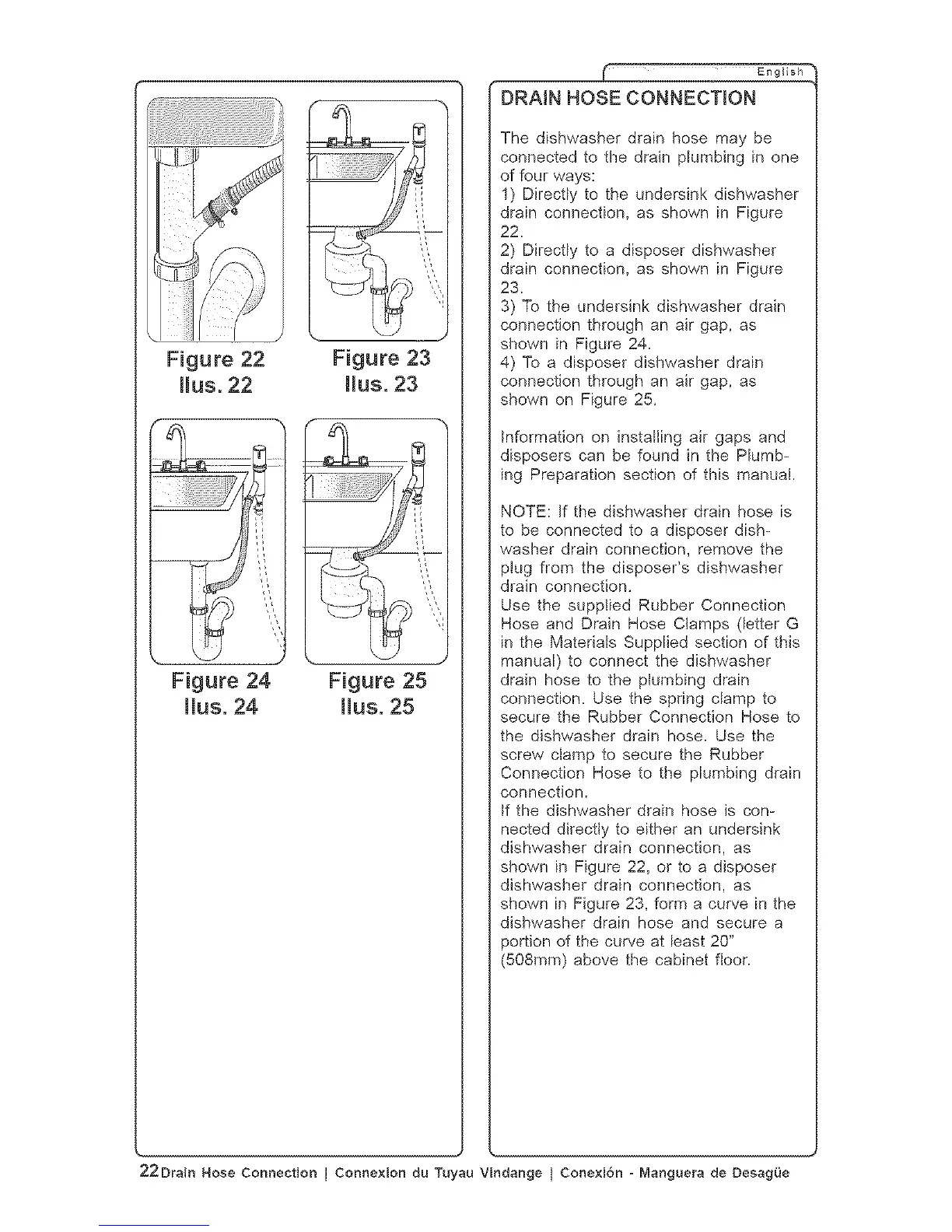

DRAtN HOSE CONNECTION
The dishwasher drain hose may be
connected to the drain plumbing in one
of four ways:
1) Directly to the undersink dishwasher
drain connection, as shown in Figure
22.
2) Directly to a disposer dishwasher
drain connection, as shown in Figure
23.
3) To the undersink dishwasher drain
connection through an air gap, as
shown in Figure 24.
4) To a disposer dishwasher drain
connection through an air gap, as
shown on Figure 25.
Information on installing air gaps and
disposers can be found in the Plumb-
ing Preparation section of this manual.
NOTE: If the dishwasher drain hose is
to be connected to a disposer dish-
washer drain connection, remove the
p!ug from the disposer's dishwasher
drain connection.
Use the supplied Rubber Connection
Hose and Drain Hose Clamps (letter G
in the Materials Supplied section of this
manual) to connect the dishwasher
drain hose to the plumbing drain
connection. Use the spring clamp to
secure the Rubber Connection Hose to
the dishwasher drain hose. Use the
screw clamp to secure the Rubber
Connection Hose to the plumbing drain
connection.
If the dishwasher drain hose is con-
nected directty to either an undersink
dishwasher drain connection, as
shown in Figure 22, or to a disposer
dishwasher drain connection, as
shown in Figure 23, form a curve in the
dishwasher drain hose and secure a
3ortion of the curve at least 20"
(508mm) above the cabinet floor.
22Drain Hose Connection [ Connexion du Tuyau Vindange } Conexi6n - Manguera de Desag_Je
