239/16'
23-5/8' 24-1/4'(600 616mm)
Figure 2/lius, 2
Countertop
Superficie
del Contador
Figure 3/[[us, 3
I \\
Figure 4/talus, 4
8
f Engl sh

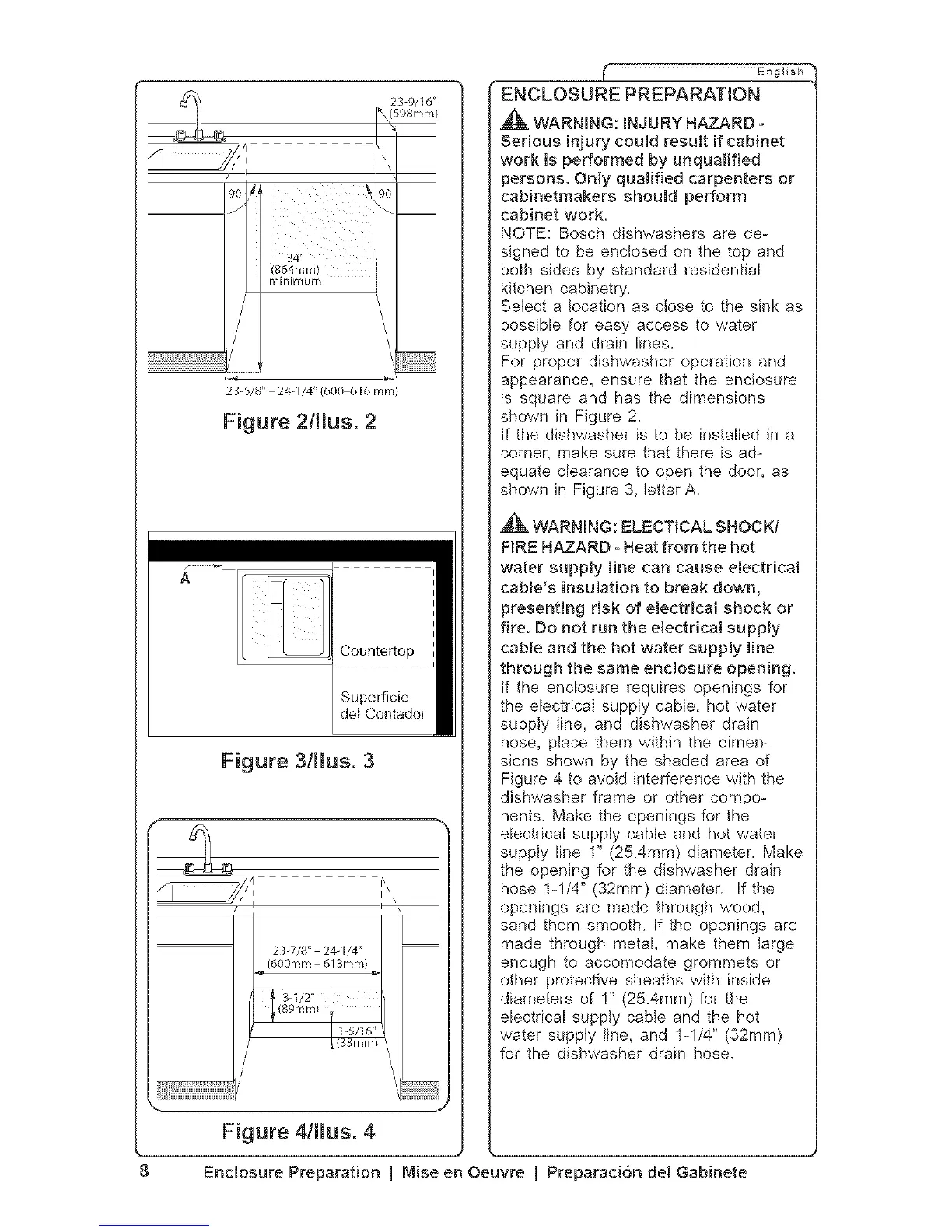

ENCLOSURE PREPARATION
,_ WARNING: [NJURY HAZARD -
Serious injury could result if cabinet
work is performed by unqualified
persons. Only quatified carpenters or
cabinetmakers should perform
cabinet work.
NOTE: Bosch dishwashers are de-
signed to be enclosed on the top and
both sides by standard residential
kitchen cabinetry.
Select a location as ctose to the sink as
3ossible for easy access to water
supply and drain lines.
For proper dishwasher operation and
appearance, ensure that the enclosure
_s square and has the dimensions
shown in Figure 2.
if the dishwasher is to be installed in a
corner, make sure that there is ad-
equate clearance to open the door, as
shown in Figure 3, Ietter A.
WARNING: ELECTICAL SHOCK/
F_RE HAZARD - Heat from the hot
water supply line can cause electrical
cable's insulation to break down,
presenting risk of electrical shock or
fire. Do not run the electrical supply
cable and the hot water supply line
through the same enclosure opening.
If the enclosure requires openings for
the electricaI supply cable, hot water
supply line, and dishwasher drain
hose, place them within the dimen-
sions shown by the shaded area of
Figure 4 to avoid interference with the
dishwasher frame or other compo-
nents. Make the openings for the
electrical supply cable and hot water
supply line 1" (25.4mm) diameter. Make
the opening for the dishwasher drain
hose 1-1/4" (32ram) diameter, if the
openings are made through wood,
sand them smooth. If the openings are
made through metal, make them large
enough to accomodate grommets or
other protective sheaths with inside
diameters of 1" (25.4mm) for the
electrical suppty cable and the hot
water supply line, and 1-1/4" (32mm)
for the dishwasher drain hose.
