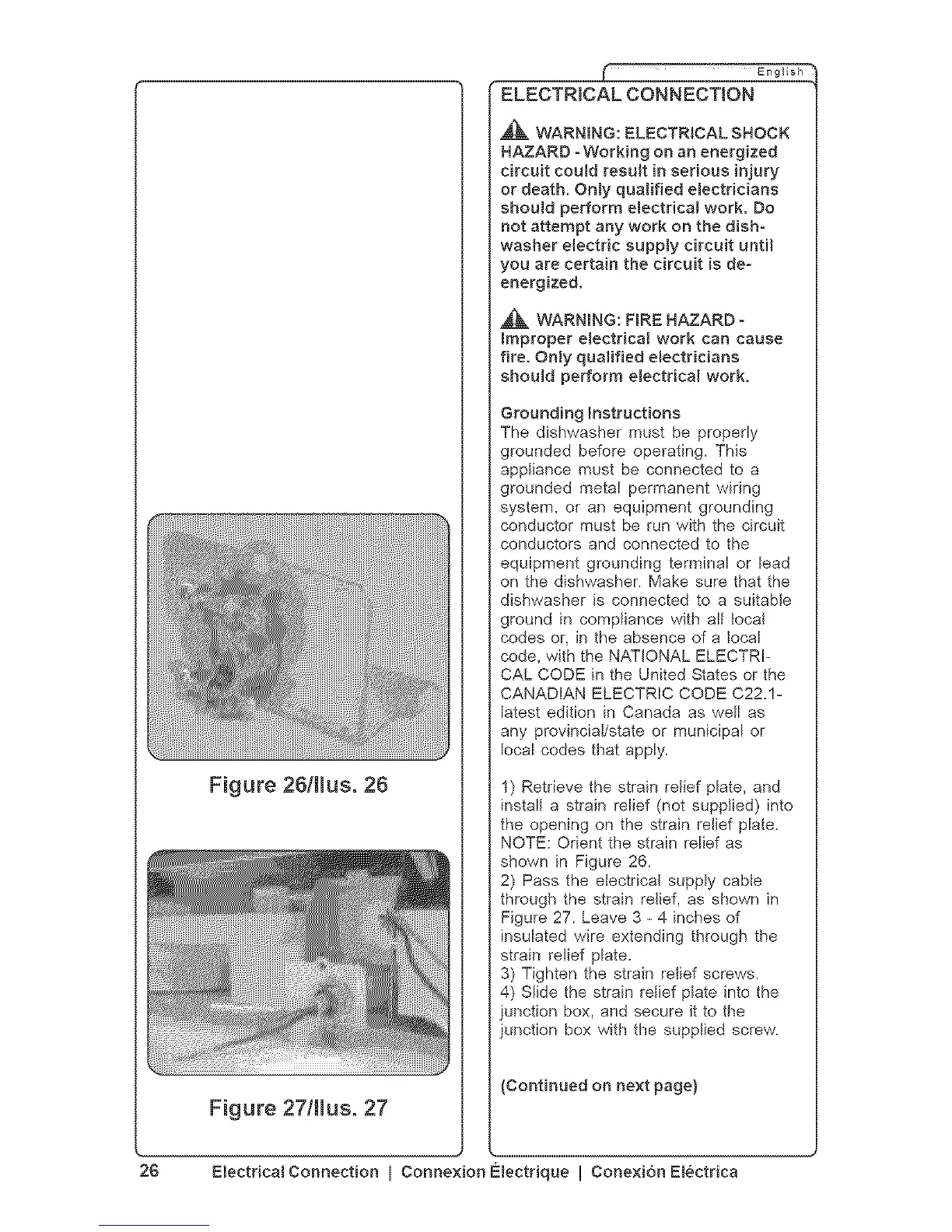

Figure 26/Hus. 26
Figure 27/llus. 27
Engl sh
ELECTRICAL CONNECTION
,_ WARNING: ELECTRICAL SHOCK
HAZARD =Work{rig on an energized
circuit could result in serious injury
or death, Only qualified electricians
should perform electrical work. Do
not attempt any work on the dish=
washer electric supply circuit untit
tou are certain the circuit is de=
energized,
,_ WARNING: FmRE HAZARD =
Improper electrical work can cause
fire, Only qualified electricians
should perform electrical work.
Grounding instructions
The dishwasher must be properly
grounded before operating. This
appliance must be connected to a
grounded metal permanent wiring
system, or an equipment grounding
conductor must be run with the circuit
conductors and connected to the
equipment grounding terminal or lead
on the dishwasher. Make sure that the
dishwasher is connected to a suitabte
ground in compliance with all tocat
codes or, in the absence of a tocal
code, with the NATIONAL ELECTRi-
CAL CODE in the United States or the
CANADIAN ELECTRIC CODE C22.1-
latest edition in Canada as well as
any provincial/state or municipal or
local codes that apply.
1) Retrieve the strain relief plate, and
install a strain relief (not supplied) into
the opening on the strain relief plate.
NOTE: Orient the strain relief as
shown in Figure 26.
2) Pass the electrical supply cabte
through the strain relief, as shown in
Figure 27. Leave 3 - 4 inches of
insulated wire extending through the
strain retief plate=
3) Tighten the strain retief screws.
4) Slide the strain relief plate into the
unction box, and secure it to the
unction box with the supptied screw.
(Continued on next page}
26 Electrical Connection I Connexion Electrique I Conexibn Electrica
