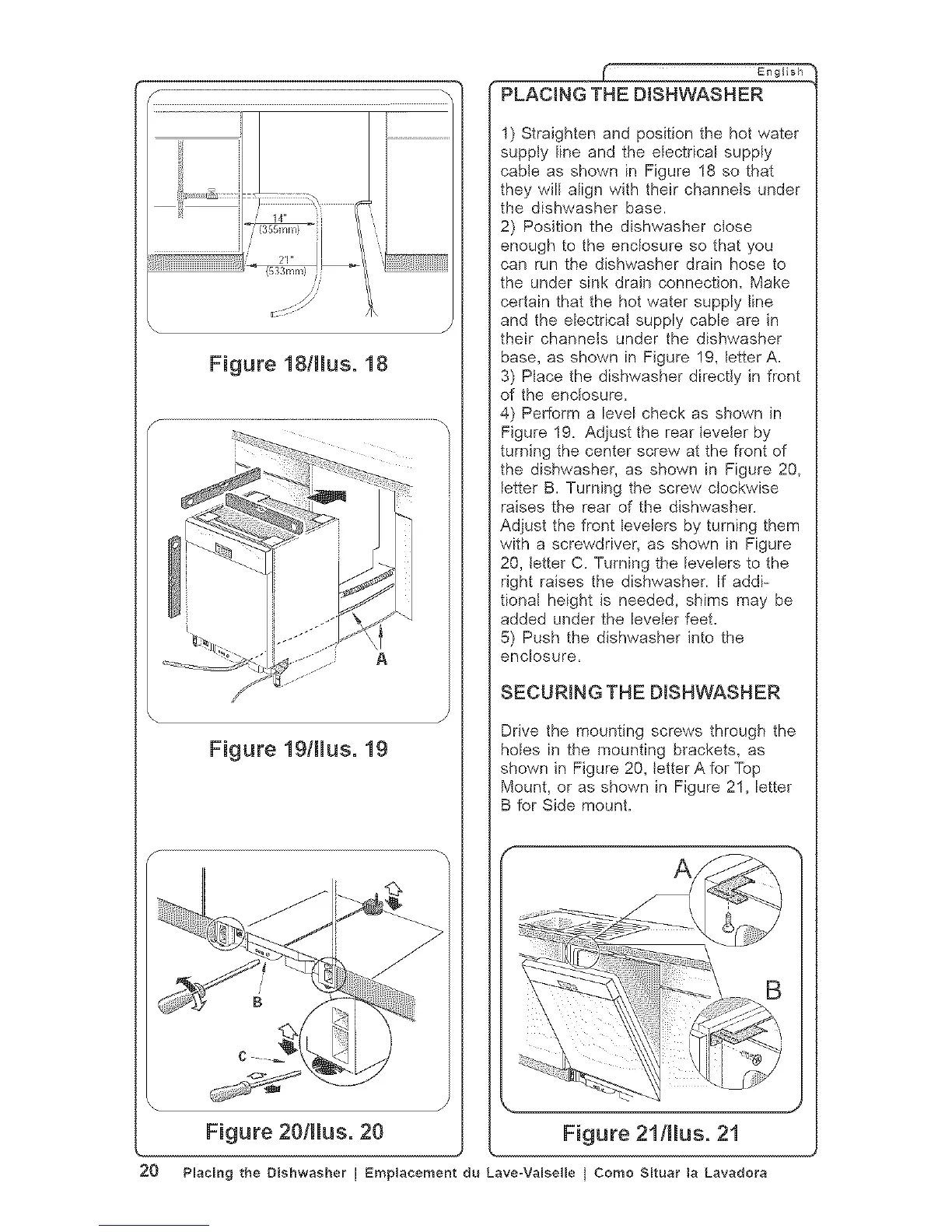

THE DISHWASHER
1) Straighten and position the hot water
supply line and the electrical supply
cable as shown in Figure 18 so that
they will align with their channets under
the dishwasher base.
2) Position the dishwasher close
enough to the enclosure so that you
can run the dishwasher drain hose to
the under sink drain connection. Make
certain that the hot water supply line
and the electrical supply cable are in
their channels under the dishwasher
base, as shown in Figure 19, letter A.
3) Place the dishwasher directly in front
of the enclosure.
4) Perform a level check as shown in
Figure 19. Adjust the rear Ieveter by
turning the center screw at the front of
the dishwasher, as shown in Figure 20,
letter B. Turning the screw clockwise
raises the rear of the dishwasher.
Adjust the front levelers by turning them
with a screwdriver, as shown in Figure
20, letter C. Turning the levelers to the
right raises the dishwasher. If addi-
tional height is needed, shims may be
added under the leveter feet.
5) Push the dishwasher into the
enclosure.
SECURING THE DISHWASHER
Drive the mounting screws through the
holes in the mounting brackets, as
shown in Figure 20, letter A for Top
Mount, or as shown in Figure 21, letter
B for Side mount.
Figure 21/llus. 21
