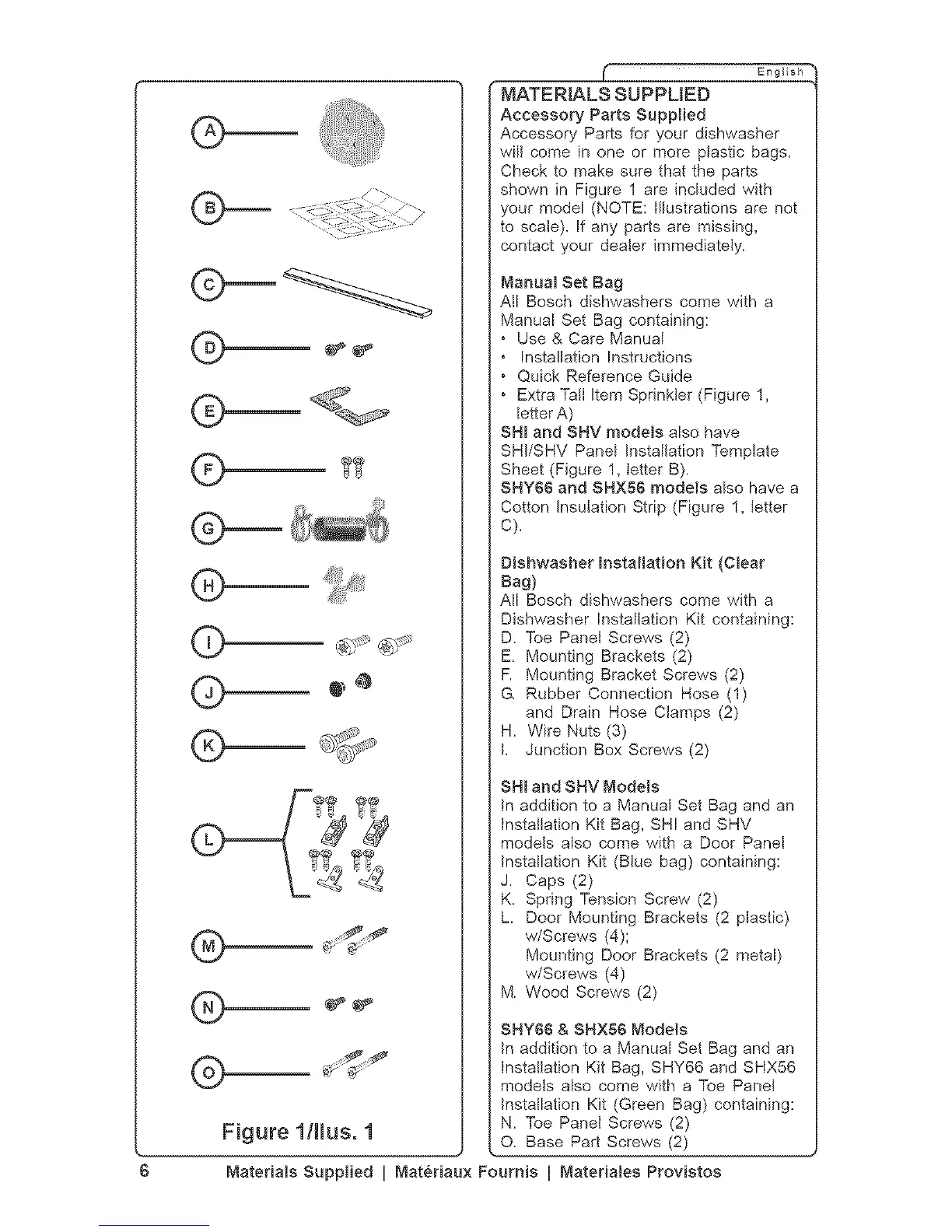

Figure llIIus. I
Eog_,h
MATERIALS SUPPLIED
Accessory Parts Supplied
Accessory Parts for your dishwasher
will come in one or more plastic bags.
Check to make sure that the parts
shown in Figure 1 are included with
your model (NOTE: Illustrations are not
to scale). If any parts are missing,
contact your dealer immediateIy.
Manual Set Bag
All Bosch dishwashers come with a
Manual Set Bag containing:
• Use & Care Manual
• installation Instructions
, Quick Reference Guide
, Extra Talt Item Sprinkler (Figure 1,
letter A)
SIll and SHV models also have
SHI/SHV Panel Installation Temptate
Sheet (Figure 1, letter B).
SHY66 and SHX56 models also have a
Cotton Insulation Strip (Figure 1, letter
C).
Dishwasher Installation Kit (CJear
Bag)
All Bosch dishwashers come with a
Dishwasher Installation Kit containing:
D. Toe Panet Screws (2)
E, Mounting Brackets (2)
F. Mounting Bracket Screws (2)
G. Rubber Connection Hose (1)
and Drain Hose Ctamps (2)
H. Wire Nuts (3)
L Junction Box Screws (2)
SIll and SHV Models
In addition to a Manual Set Bag and an
InstalIation Kit Bag, SHI and SHV
models also come with a Door Panel
Installation Kit (Blue bag) containing:
J. Caps (2)
K, Spring Tension Screw (2)
Door Mounting Brackets (2 plastic)
w/Screws (4);
Mounting Door Brackets (2 metal)
w/Screws (4)
M. Wood Screws (2)
SHY$6 & SHX56 Models
In addition to a Manual Set Bag and an
Installation Kit Bag, SHY66 and SHX56
modets also come with a Toe Panel
Installation Kit (Green Bag) containing:
N. Toe Panel Screws (2)
O. Base Part Screws (2)
Materials Supplied I Materiaux Fournis I Materiales Provistos
