A
Figure 12/Hus. 12
Figure 13/Hus. 13
Figure 14/Hus. 14
English

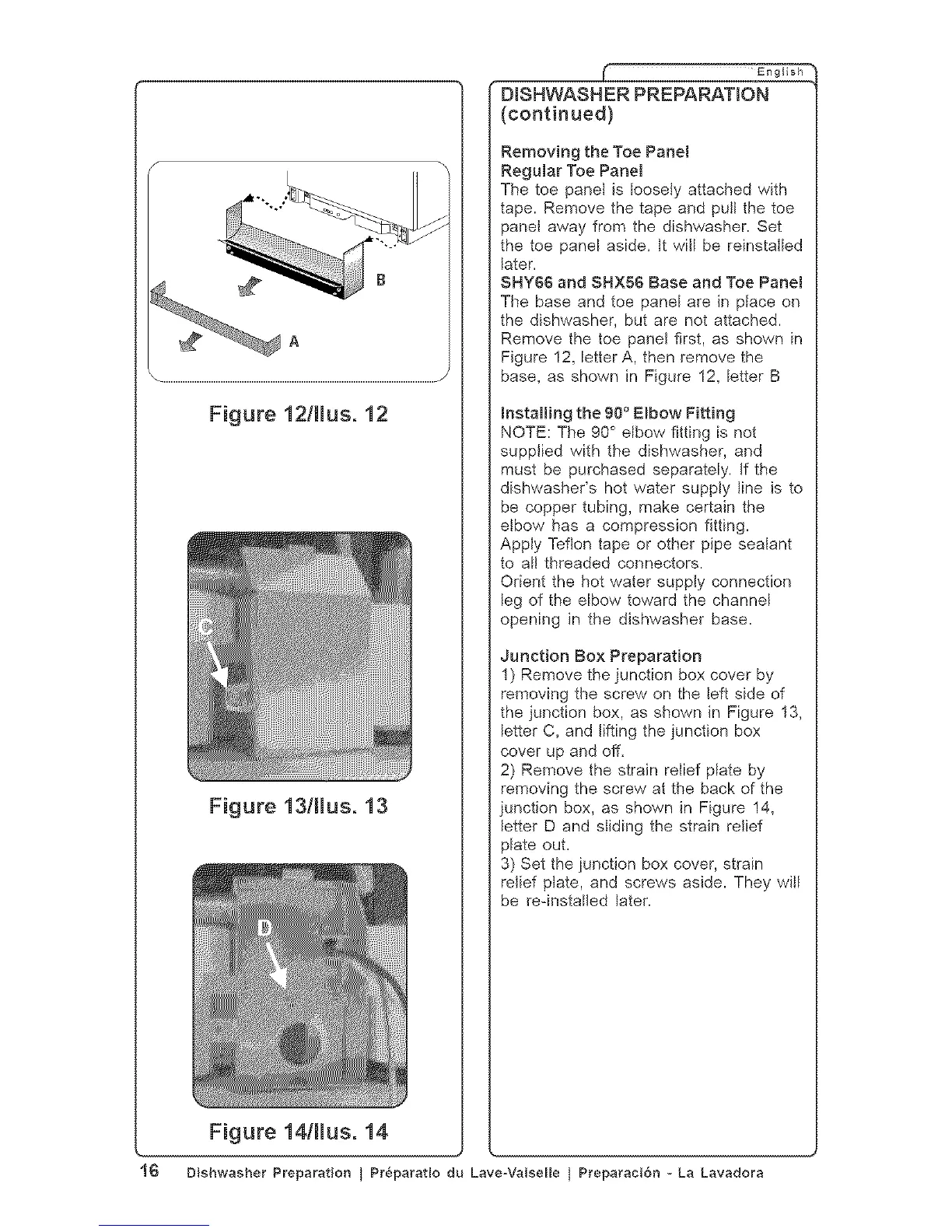

DISHWASHER PREPARATION
(continued)
Removing the Toe Panel
Regular Toe Panel
The toe panel is loosely attached with
tape. Remove the tape and putt the toe
panel away from the dishwasher. Set
the toe panel aside. It will be reinstalled
later.
SHY6$ and SHX56 Base and Toe Panel
The base and toe panel are in place on
the dishwasher, but are not attached.
Remove the toe panel first, as shown in
Figure 12, letter A, then remove the
base, as shown in Figure 12, letter B
_nstalHng the 90 ° Elbow Fitting
NOTE: The 90 ° elbow fitting is not
supplied with the dishwasher, and
must be purchased separately. If the
dishwasher's hot water suppty line is to
be copper tubing, make certain the
elbow has a compression fitting.
Apply Teflon tape or other pipe sealant
to all threaded connectors.
Orient the hot water supply connection
leg of the elbow toward the channel
opening in the dishwasher base.
Junction Box Preparation
1) Remove the junction box cover by
removing the screw on the left side of
the junction box, as shown in Figure 13,
letter C, and lifting the junction box
cover up and off.
2) Remove the strain relief plate by
removing the screw at the back of the
unction box, as shown in Figure 14,
letter D and sliding the strain relief
31ate out,
3) Set the junction box cover, strain
relief plate, and screws aside. They will
be re-installed later.
16 Dishwasher Preparation } Pr¶tio du Lave°Vaiselle } Preparaci6n _ La Lavadora
