8 | Horizontal Configurability

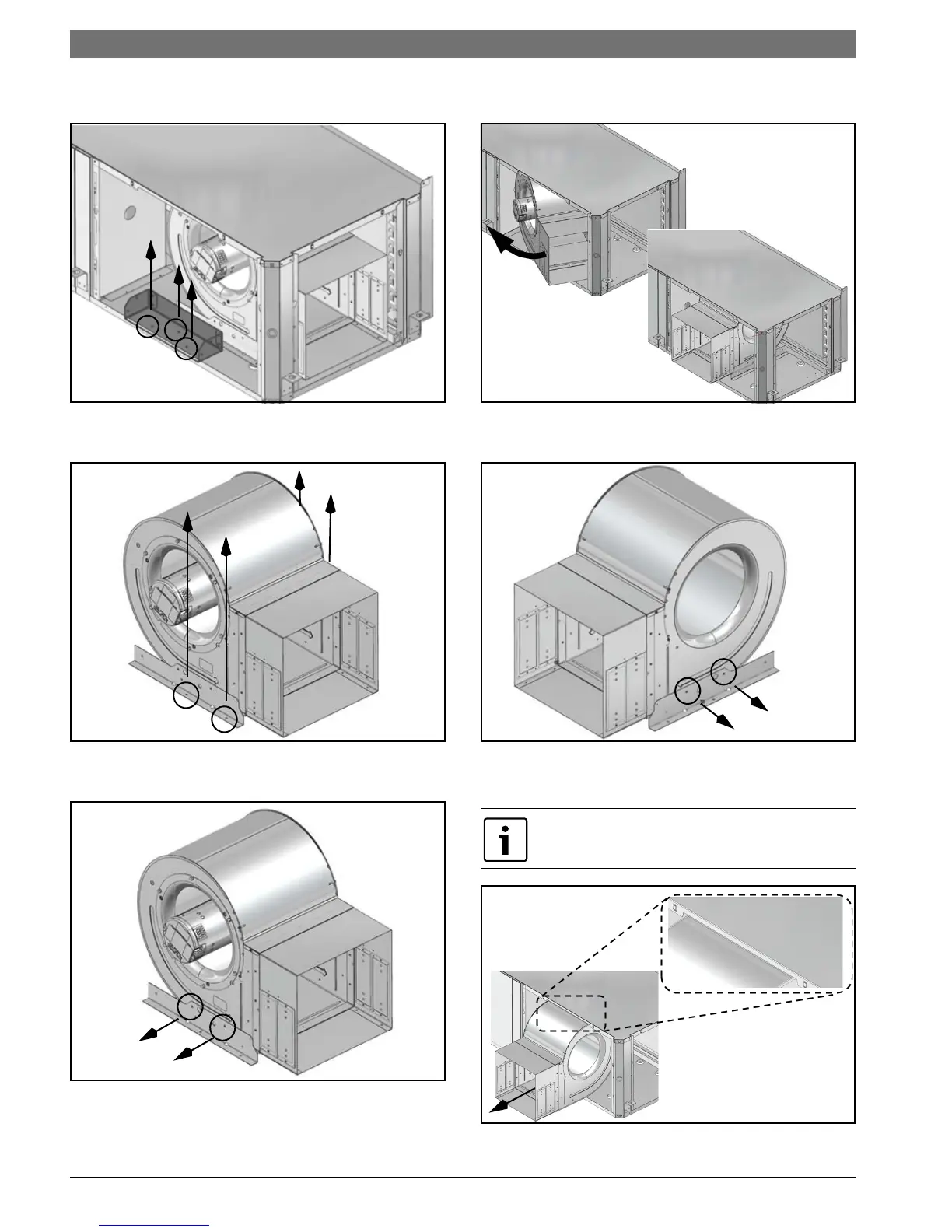

3. Remove and retain bracket by removing (3)
screws. (Figure #8)
Figure # 8
4. Loosen blower assembly by removing (4)
screws. (Figure #9)
Figure # 9
5. Remove and retain bracket by removing (2)
screws. (Figure #10)
Figure # 10
6. Rotate the blower into its new
position.(Figure#11)
Figure # 11
7. Remove and retain remaining bracket by
removing (2) screws. (Figure #12)
Figure # 12
8. Remove the blower assembly by sliding it
forward. (Figure #13)
Figure # 13
Unit top is notched to allow blower to slide
through.
