Commissioning
Greenstar Danesmoor Utility
2022+
and Utility System
2022+
- 6 721 846 263 (2022/01) 43

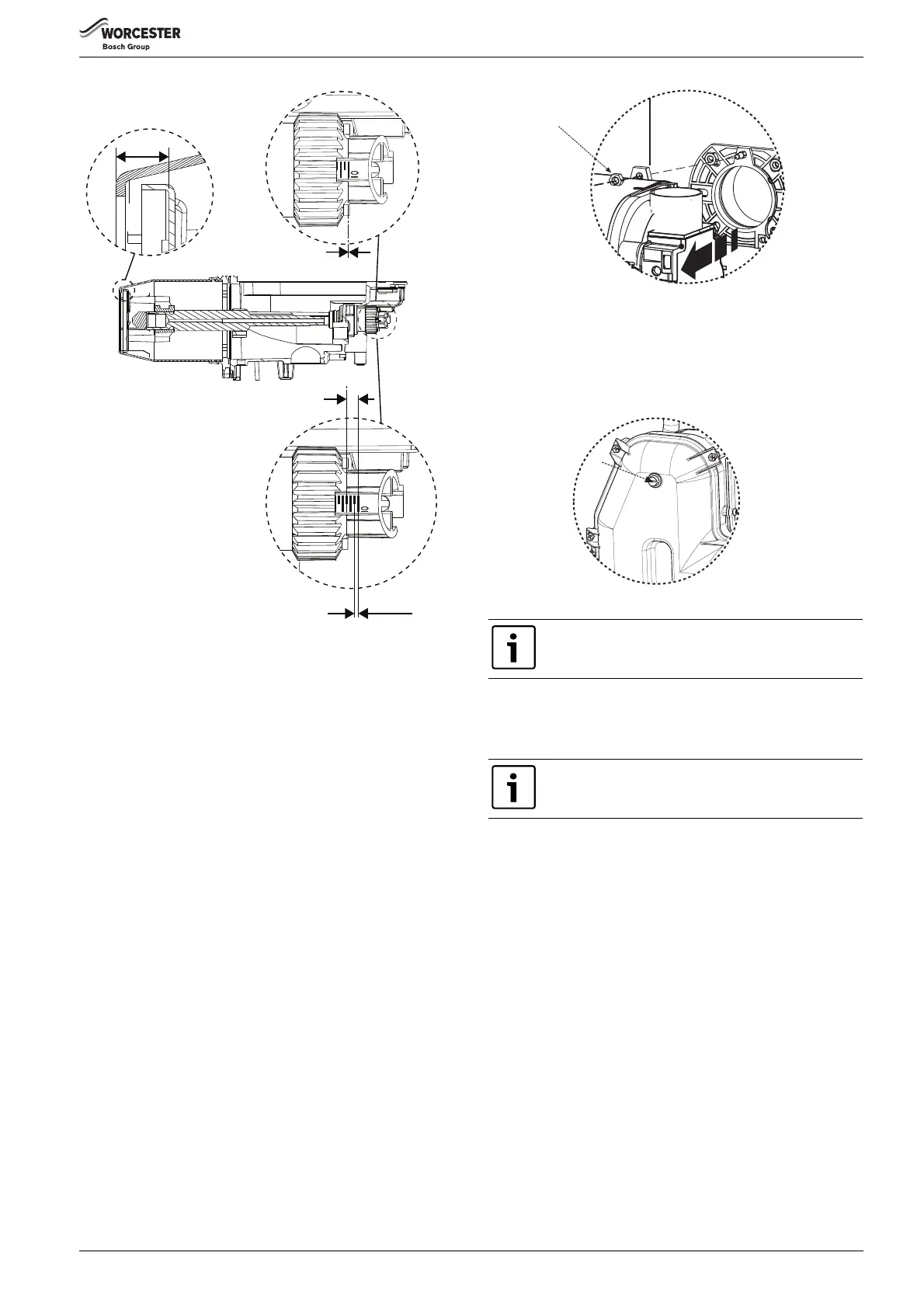

Fig. 67 Burner head adjustment
6.4.5 Boiler lockout indicator on:
If the burner fails to establish a normal firing pattern or flame failure
occurs the flame monitoring photocell mounted in the burner body will
alert the burner control box to shut the burner down and provide a safe
lockout state indicated by the illumination of the lockout indicator (D).
▶ Wait 2 minutes then press the lockout reset button D ( figure 70)
to initiate another start sequence.
▶ Repeat procedure until a flame is established.
1. Start and run for 3 minutes then switch off.
▶ Release the burner retainer nut (F).
▶ Remove the burner.
▶ Check for after-spurting from the nozzle, indicated by oil saturation
on the combustion head (item G, figure 70).
If after-spurting occurs:
▶ Remove the combustion head (G) and electrodes, hold the burner
vertical to unscrew the nozzle and fill the nozzle holder with
kerosene.
▶ Refit nozzle, electrodes, combustion head (G) and the burner.
▶ Restart and run for 3 minute intervals until after-spurting stops.
Fig. 68
6.4.6 Combustion checks
▶ Start and run for 20 minutes
▶ Remove sampling point plug (K) to check the smoke reading is
between 0-1. If the smoke level is above 1, check the combustion
settings are correct and the oil nozzle is in good condition.
Fig. 69
▶Check the CO
2
levels and adjust the air shutter (L) setting according
to table 10.
▶ Check the flue gas temperature is close to the values shown in the
table 10.
▶ Turn off the electrical supply.
▶ Isolate the oil supply to the burner.
▶ Remove the oil pressure gauge.
▶ Refit the blanking plug (A).
▶ Check and rectify any oil leaks.
2. Switch on the oil supply.
▶ Switch on the electrical supply.
▶ Restart the boiler and run for 5 minutes.
▶ Recheck the CO
2
levels and if required, adjust the air shutter setting
(L) to obtain the correct CO
2
level.
▶ Refit the sample point cap (hand tighten only, do not over tighten)
and refit the burner cover.
D
X=0
1 mm
X
6720821683-23.1Wo
Smoke readings may be inaccurate until the smoke from
burning organic binder in the access door insulation has
ceased.
If the flue gas temperature is too high and the baffles are
correctly fitted, then reduce the oil pump pressure (B) 5-
10p.s.i. to compensate for nozzle variations.
2.
K
6720808218-60.1Wo
