Appliance information
Greenstar Danesmoor Utility
2022+
and Utility System
2022+
- 6 721 846 263 (2022/01)10
3.5 Layout and components - 18/25 Regular appliance shown

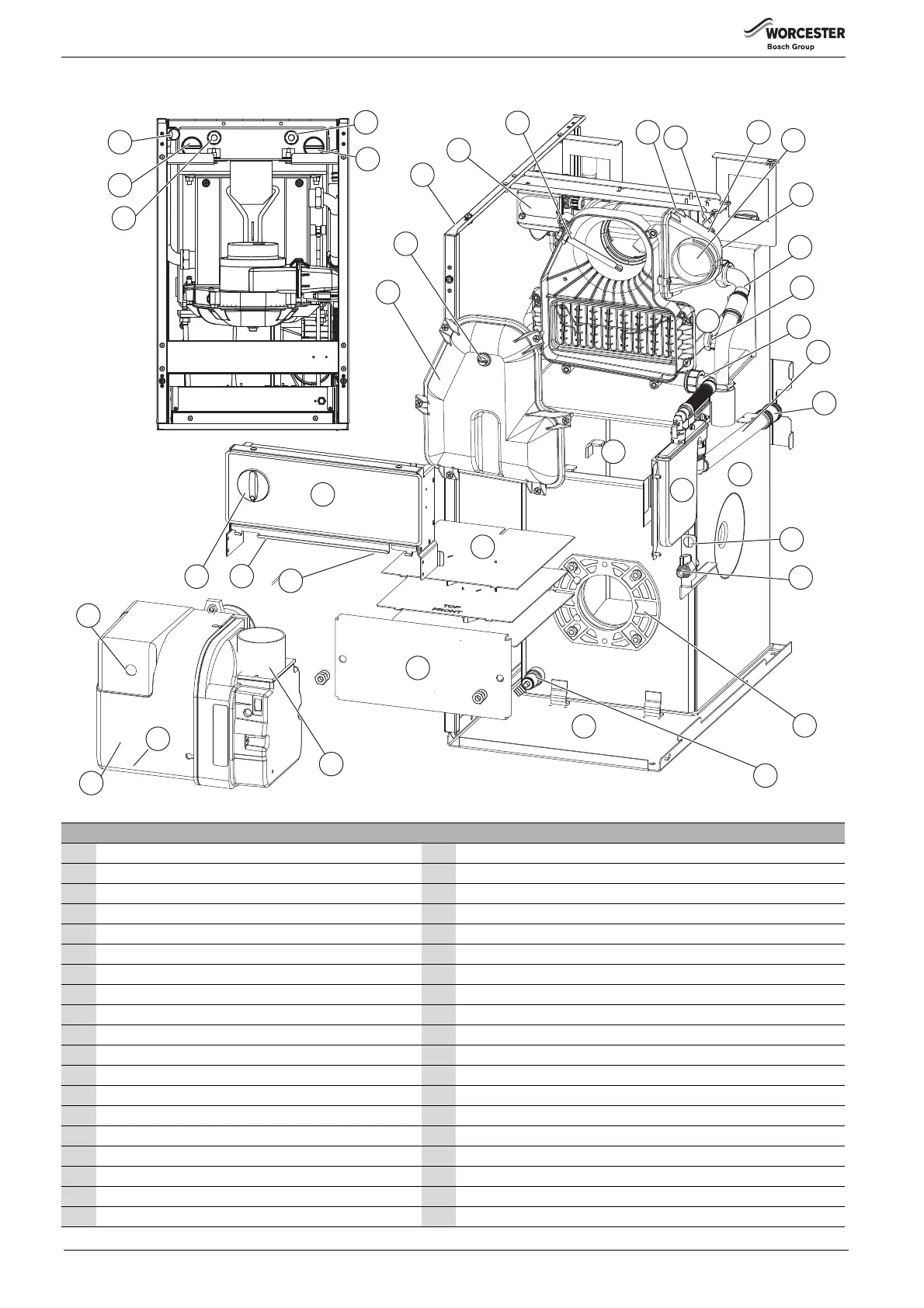

Fig. 4 18/25 Regular appliance shown
Figure 4 does not include the top, front, and right hand side panel.
1 Control box assembly 20 Optional oil return position
2 Flue manifold access cover 21 Oil isolating valve
3Flue gas sampling point 22 Burner mounting plate
4 Casing side panel 23 Primary heat exchanger drain
5 Air pressure switch 24 Base plate and oil drip tray
6 Flue overheat thermostat phial 25 Burner air intake - connected by flexible duct [10] to air inlet casing [9]
7 Power cable clip 26 Burner motor - behind plastic cover
8 Fire valve sensor clip 27 Oil pump - behind plastic cover
9 Air inlet casing 28 Lockout reset button (on front of burner control box)
10 Flexible air duct (connecting to air intake [25]on burner) 29 Combustion chamber access door
11 Secondary heat exchanger bleed point (one on either side) 30 One piece baffle arrangement
12 Heat exchanger flow pipe 31 Combustion chamber
13 Secondary heat exchanger 32 Boiler overheat reset button
14 Secondary heat exchanger drain 33 Flue overheat reset button
15 Flexible condensate drain pipe connection 34 Temperature control knob
16 Condensate drain pipe 35 Control & manual reset overheat thermostat phial
17 Condensate outlet 36 Flow/Optional combined feed and vent
18 Primary heat exchanger 37 Return
19 Condensate trap 38 Auto-reset high-limit thermostat phial
26
27
28
25
2
1
3
4
6
7
8
22
23
20
21
30
31
18
16
17
15
14
12
11
10
9
24
19
13
32
33
34
5
Utility Regular
6720821720-02.2Wo
37
36
35
38
36
29
