23
Note: When replacing the pickup, grease
the main shaft and the U groove of the sub
shaft. After securing the FPC, apply glue to
the end opposite the screw.

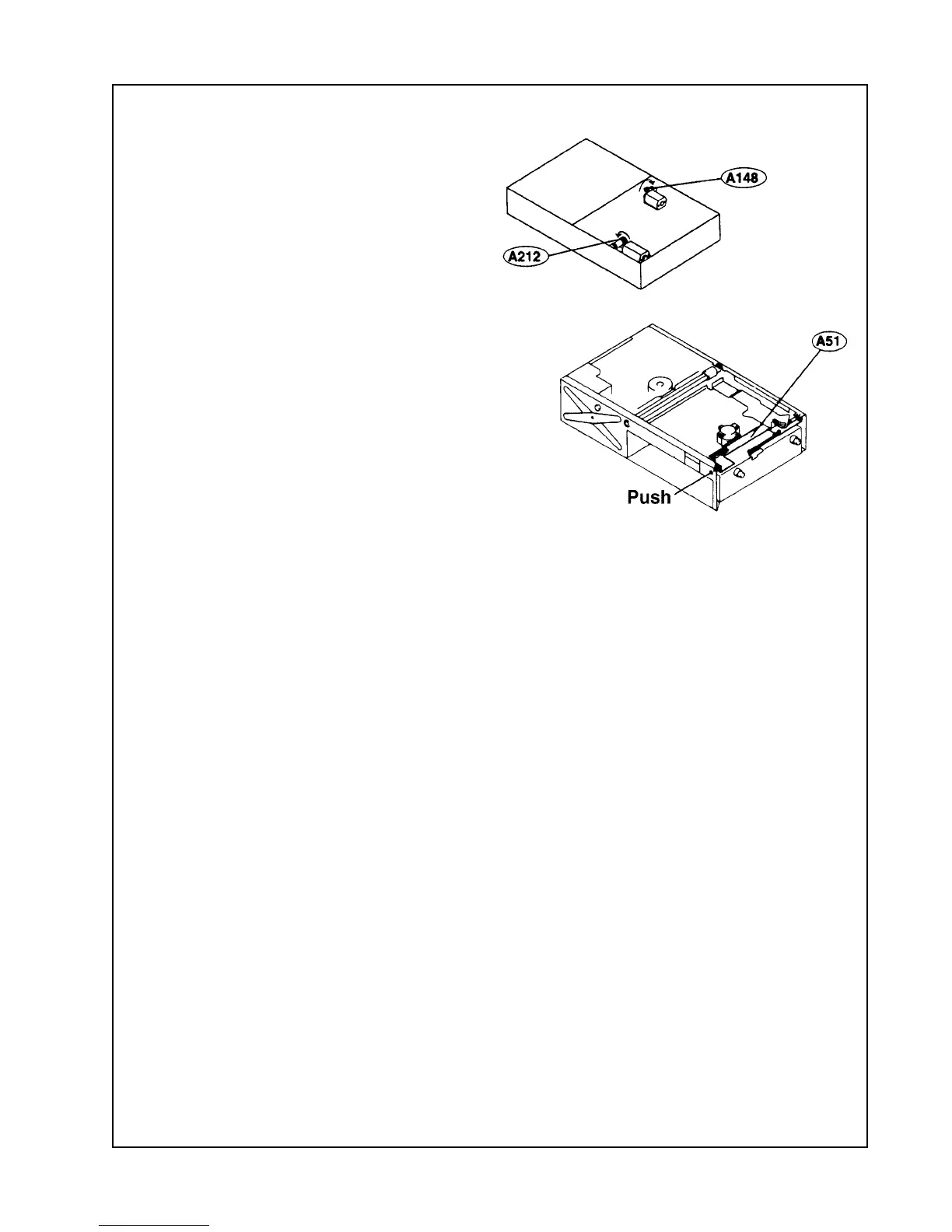

8. Manual Magazine Ejection
8.1 With the disc clamped, rotate the lift
motor worm gear (A148) 25 to 28 turns in
the direction of the arrow to unclamp the
disc.
8.2 With the disc unclamped, rotate the L
wheel worm gear (A212) in the direction of
the arrow to return the disc to the maga-
zine.
Note: If the disc comes in contact with the
separator and can not be returned, push
the edge of the disc up or down so that it
returns without coming into contact with the
separator of the magazine.
8.3 After returning the disc to the magazine,
push the emergency eject plate (A51) with
the tip of a screwdriver to remove the
magazine.
CD MECHANISM DISASSEMBLY PROCEDURES
