Bose CD-20 User Manual

48
ELECTRICAL PART LIST
Reference Designator Description Part Number Note
S700 SWITCH, TACTILE DOME, 160gf 172999-02
S701 SWITCH, TACTILE DOME, 160gf 172999-02
S702 SWITCH, TACTILE DOME, 160gf 172999-02
S703 SWITCH, TACTILE DOME, 160gf 172999-02
S704 SWITCH, TACTILE DOME, 160gf 172999-02
S705 SWITCH, TACTILE DOME, 160gf 172999-02
S706 SWITCH, TACTILE DOME, 160gf 172999-02
S707 SWITCH, TACTILE DOME, 160gf 172999-02
S708 SWITCH, TACTILE DOME, 160gf 172999-02
S709 SWITCH, TACTILE DOME, 160gf 172999-02
S710 SWITCH, TACTILE DOME, 160gf 172999-02
S711 SWITCH, TACTILE DOME, 160gf 172999-02

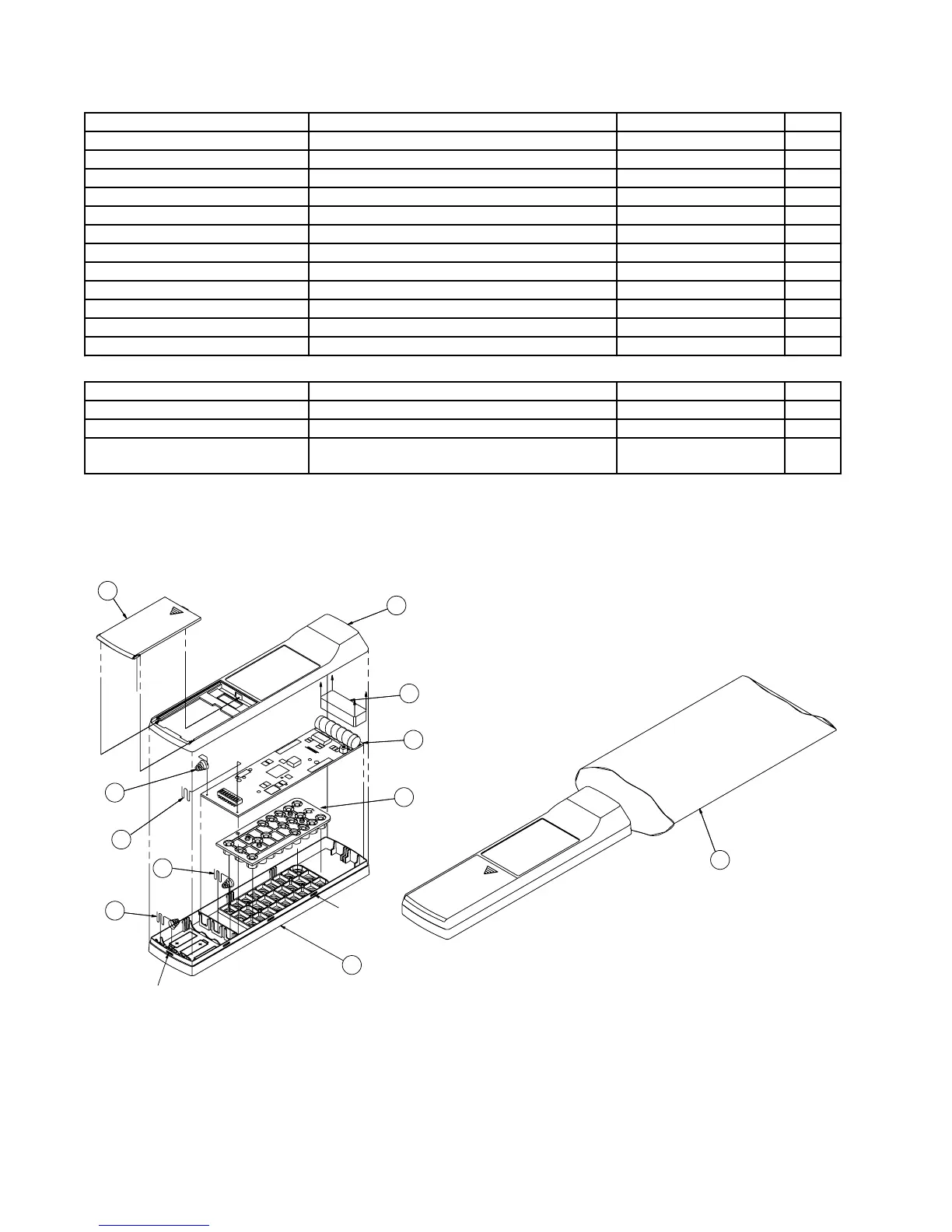

Figure 9. RC-20 Remote Exploded View
Crystals
5
6
7
9
8
4
2
1
10
3
11
CATCHES
CATCHES
Switches
Reference Designator Description Part Number Note
X300 RESONATOR, CERAMIC, 456KHz 147233
X301 CRYSTAL, QUARTZ, 7.2MHz, 50PPM 147223 or 197680 11/02
X401 CRYSTAL, CERAMIC RESONATOR,
8MHz
175627
