SPECIFICATIONS
Expansion Slots
Audio I/O: 8 slots (4 slots occupied)
Control I/O: 2 slots (1 slot occupied) Max 16 inputs/16 outputs
DSP: 1 slot
Audio Channels
Analog: 32 max (all slots full)
Digital (AES3): 64 (all slots full)
Mechanical

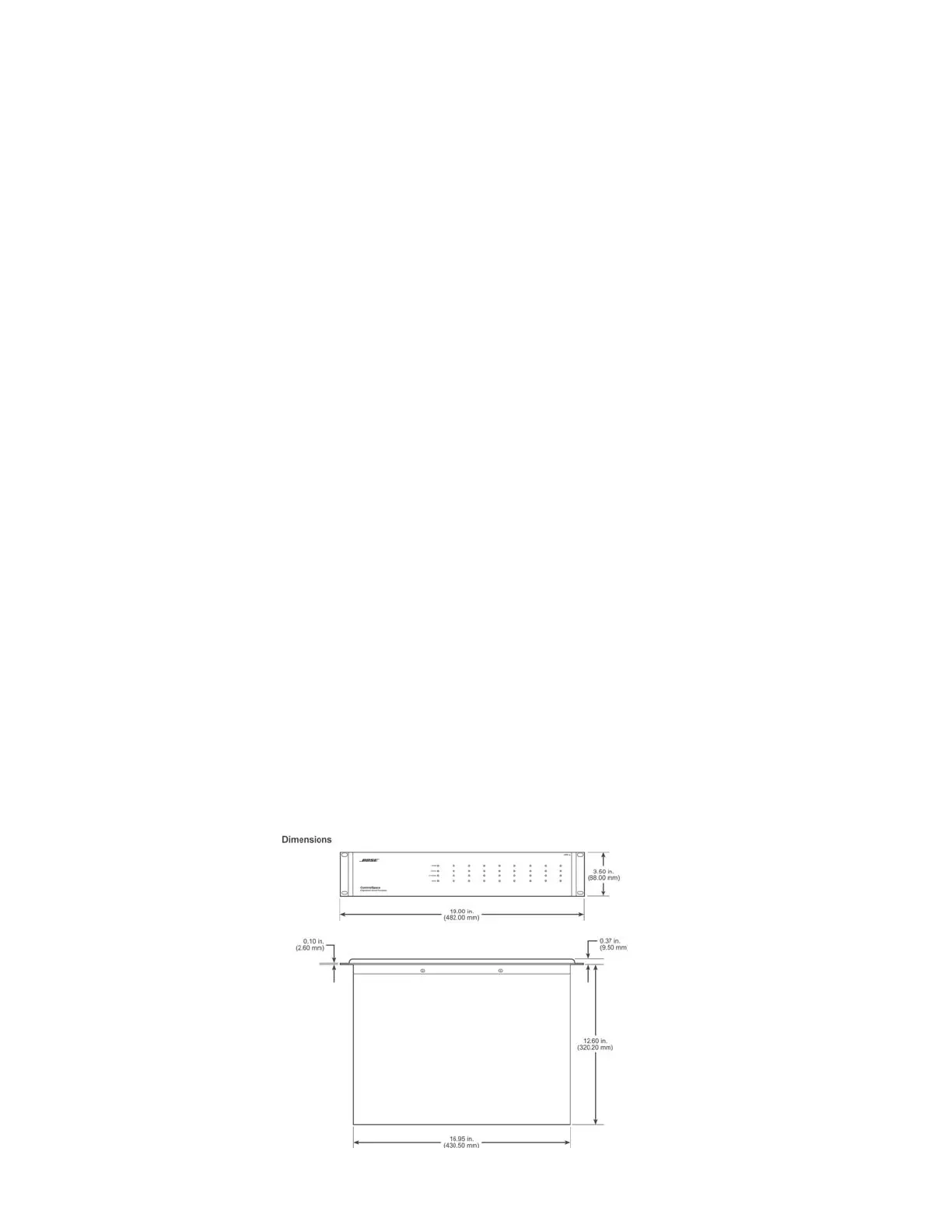

Dimensions: 18.9”W x 3.5”H x 12.6”D (482 x 88 x 320mm)
Weight: 14 lb. (5.3 kg)
Electrical
Mains Voltage: 85 - 264 VAC 50/60 Hz with PFC
Power Consumption: < 35VA
Maximum Power < 70VA (at <35 degrees C ambient)
Consumption:
Environmental
Operating Temperature: < 50 degrees C at less than 35VA / < 40 degrees C at
less than 70VA
Humidity: 80% relative humidity (without condensation)
