78
TEST PROCEDURES

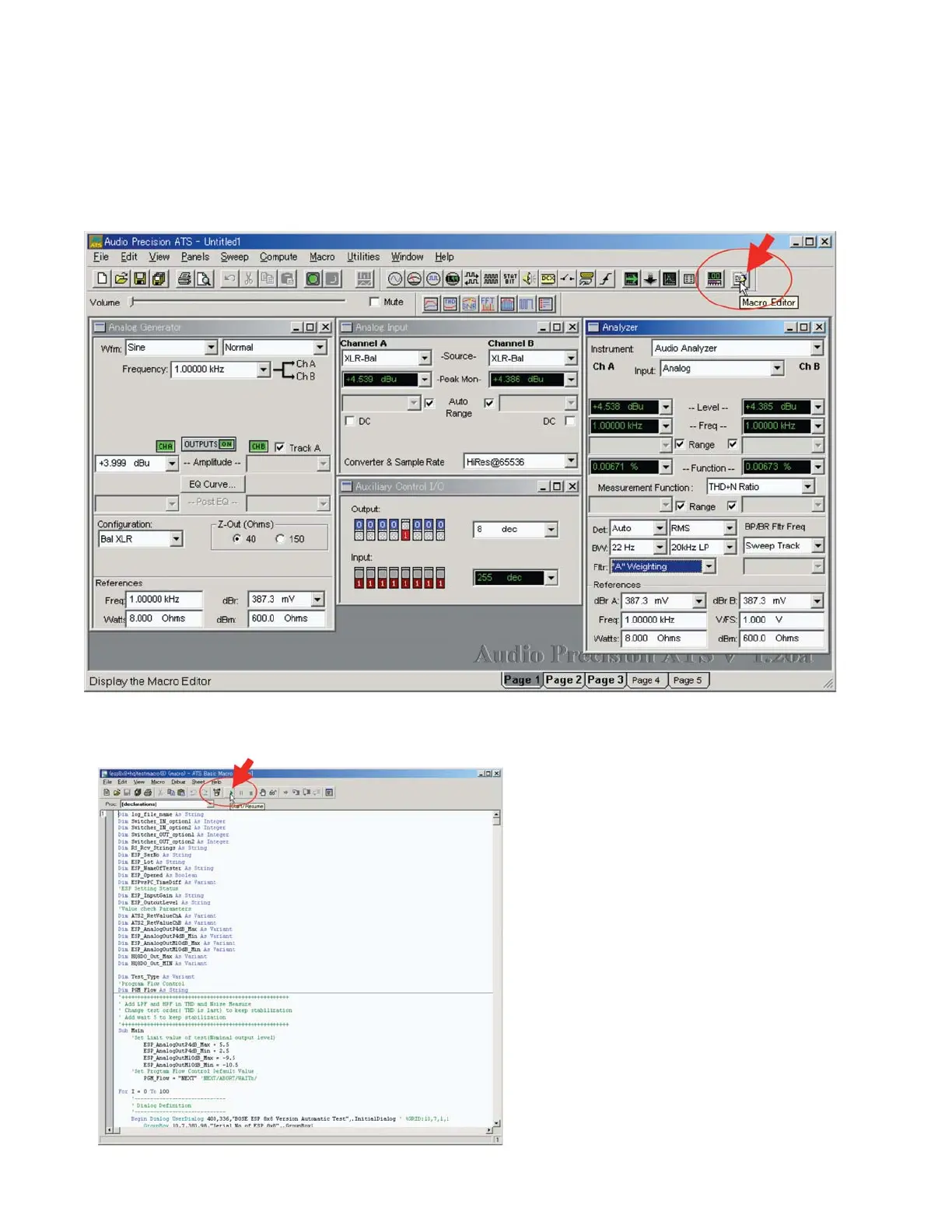

4-5.Automatic test setting on ATS2.
Load the ATS2 macro file “ESP88 TestMacro.atsb”. Click on the Macro Editor button. The Macro
Editor window shown at the bottom of the page will open. CAUTION: Do not change any of the
text in the Macro Editor window, or you will change the test parameters, corrupting the test file
and causing the test to fail.
Click on the START/RESUME button in the Macro Editor window toolbar.
