4-6. About Automatic test setting on ATS2.
This macro file “ESP88 TestMacro.atsb” can
measure all items listed in section 4-3. The
order of testing.
Audio quality can be measured and logged
automatically.

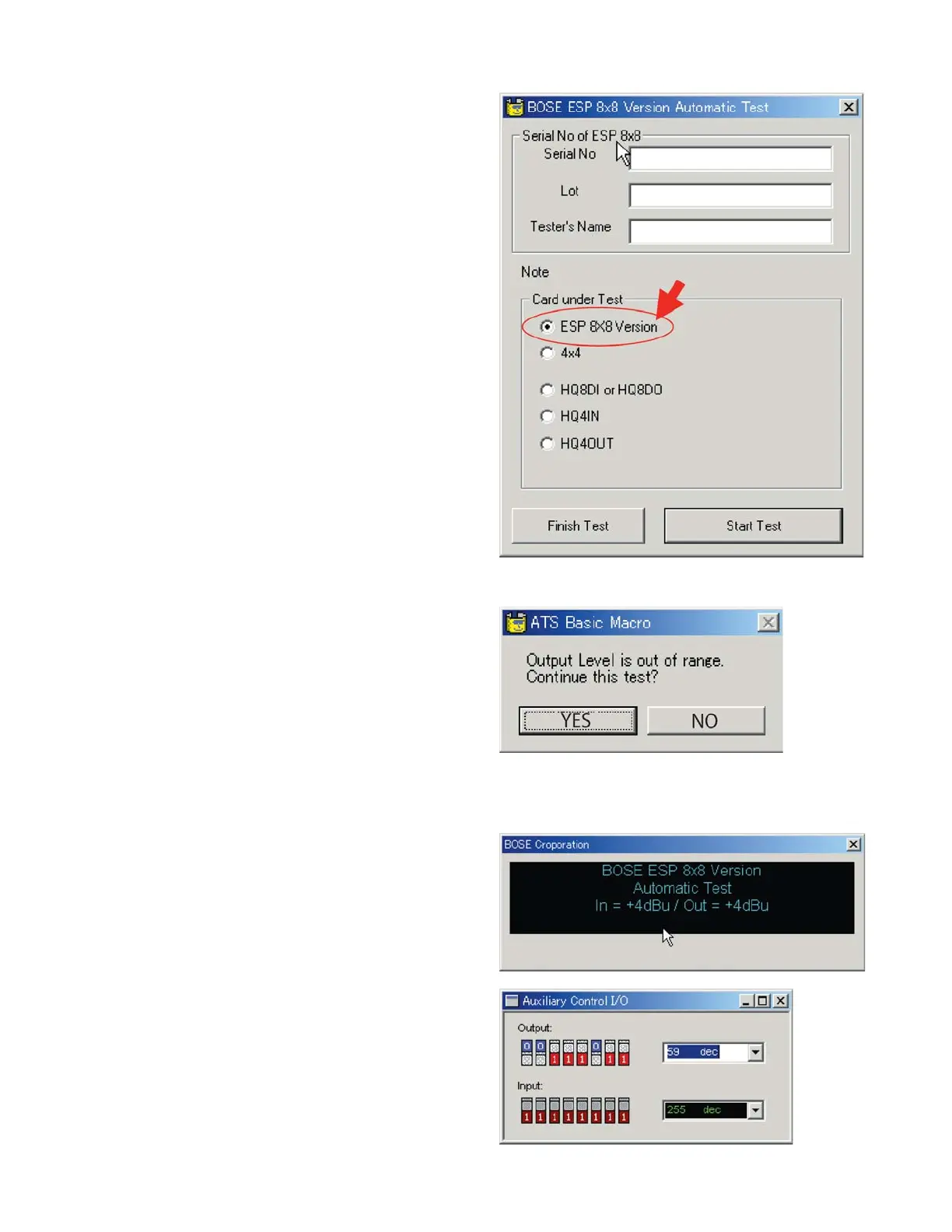

When you click on the START/RESUME
button in the Macro Editor window toolbar,
the dialog box shown at right will appear on
the screen. Make sure the ESP 8X8 Version
radio button is checked. Input the serial
number, lot number, tester’s name and push
START TEST button.
Once you click the start button, the file save
dialog box will appear. The serial number is
used for the file name. There is no need to
change the file name, but if you wish to
change the directory you save to, select the
proper directory.
If a test fails, the dialog box at right will
appear on the screen and ask if you would
like to continue or not.
This message show the ESP that is tested
has a fault. If you would like to get informa-
tion for repair by saving a log file, you can
continue by pushing the YES button to
generate a log file. You can terminate the
test by pushing the NO button to end the
test.
The dialog box at right shows the progress
of the test.
This “Auxiliary Control I/O” dialog box shows
the status of Aubit switcher.
TEST PROCEDURES
