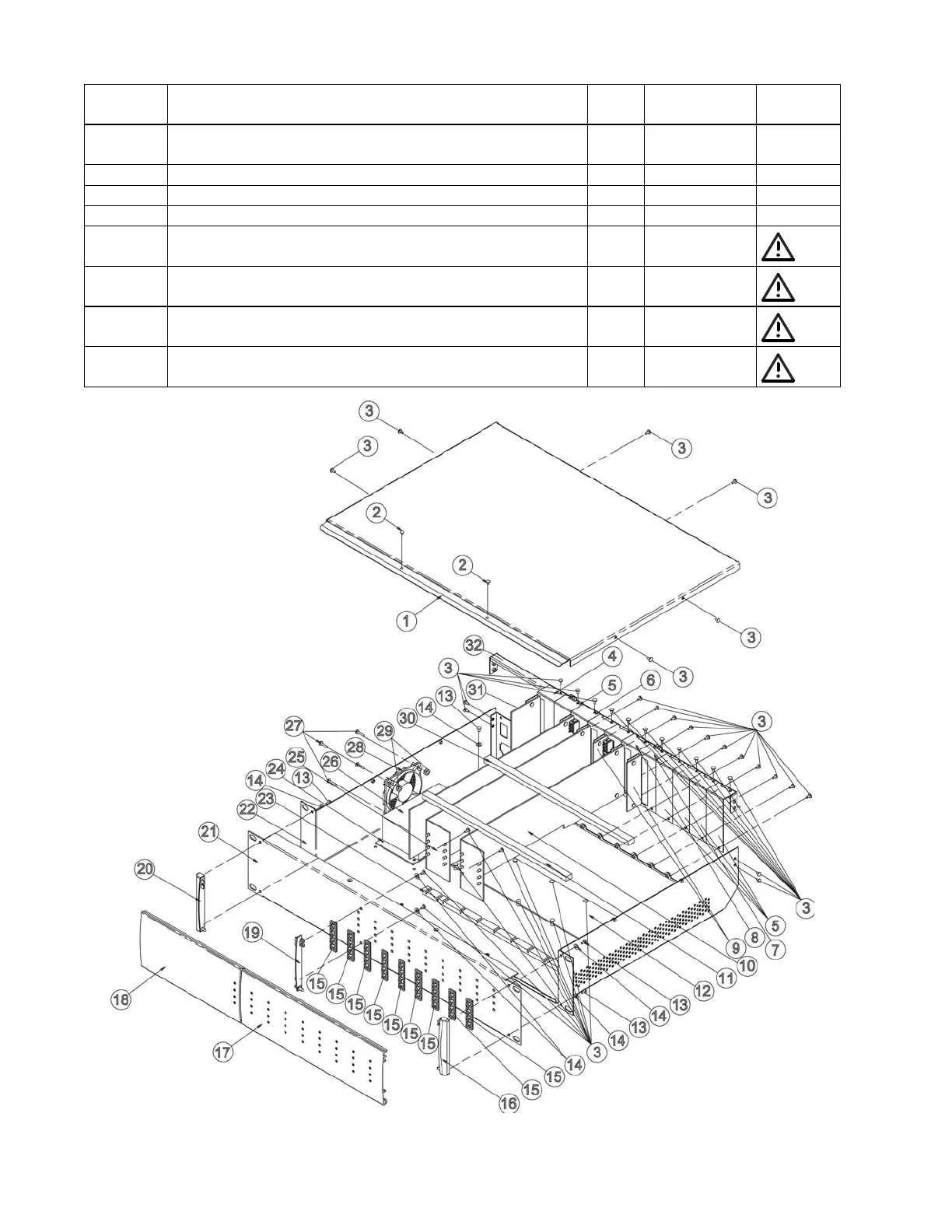

Figure 4. ControlSpace ESP-88C/ESP-00 Chassis Exploded View
MAIN PART LIST
ControlSpace
®
ESP-88C/ESP-00 Chassis (continued)
Item
Number
Description Qty. Part Number
Note
- 4-CH SDR OUTPUT PCB - 041916
- 4-CH MIC/LINE INPUT PCB - 041917
- SURROUND DECODER INPUT PCB - 302210 2
- AC POWER SWITCH, ROCKER, SPST,
125V/15A
1 - 3, 4
- AC SOCKET, IEC, 250V/10A 1 - 3, 4
- Power Supply Harness, Improved, ESP-88C /
ESP-00 (used with the Astec power supply)
1 318935-001S 3
- Power Supply Harness, Improved, ESP-88 /
ESP-88C (used with the IPD power supply)
1 318938-001S 3
