5
PRODUCT DESCRIPTION

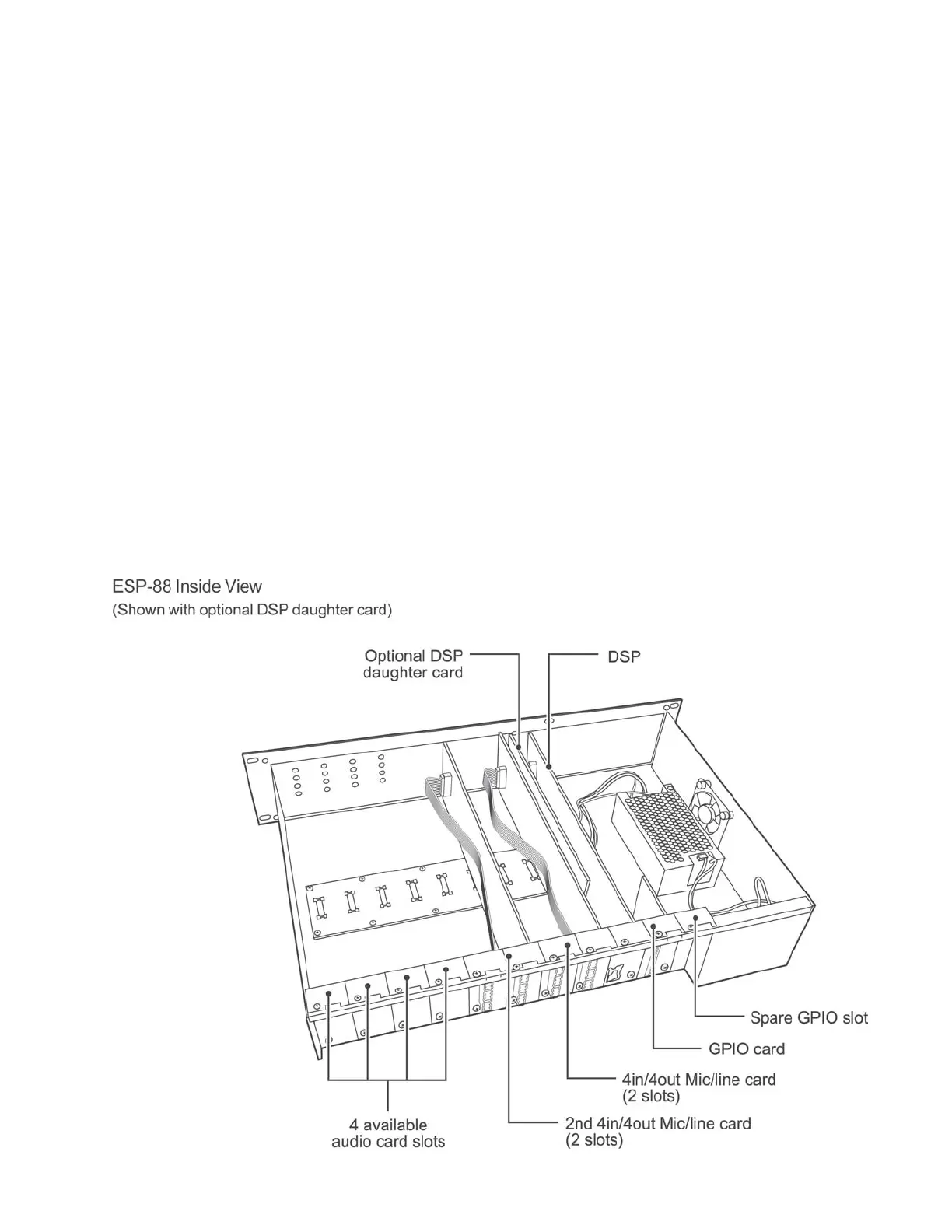

ESP-88 Chassis Overview (continued):
Optional Cards
Audio Cards:
4x4 mic/line card Series II, PC 041915 (not included with the ESP-00)
Occupies two audio slots. Four microphone or line level inputs (software selectable), and four
line level outputs. The ESP-88C includes two 4x4 Mic/line cards. Two 4x4 cards can be added.
EDR line level output card, PC 041763
Occupies one audio slot. Four highest-quality, line level outputs.
EDR line level input card, PC 041764
Occupies one audio slot. Four highest-quality, line level inputs.
AES3 output card, PC 041766
Occupies one audio slot. Eight AES3 outputs (two per output connector).
AES3 Input card, PC 041765
Occupies one audio slot. Eight AES3 inputs (two per input connector).
Surround Sound card, Bose
®
part number 302210
Occupies one audio slot. One optical and one coaxial digital audio inputs.
