Bose ControlSpace SP-24 User Manual

Page 24 Installation and Operating Guide English
Installation and Operating Guide pro.Bose.com

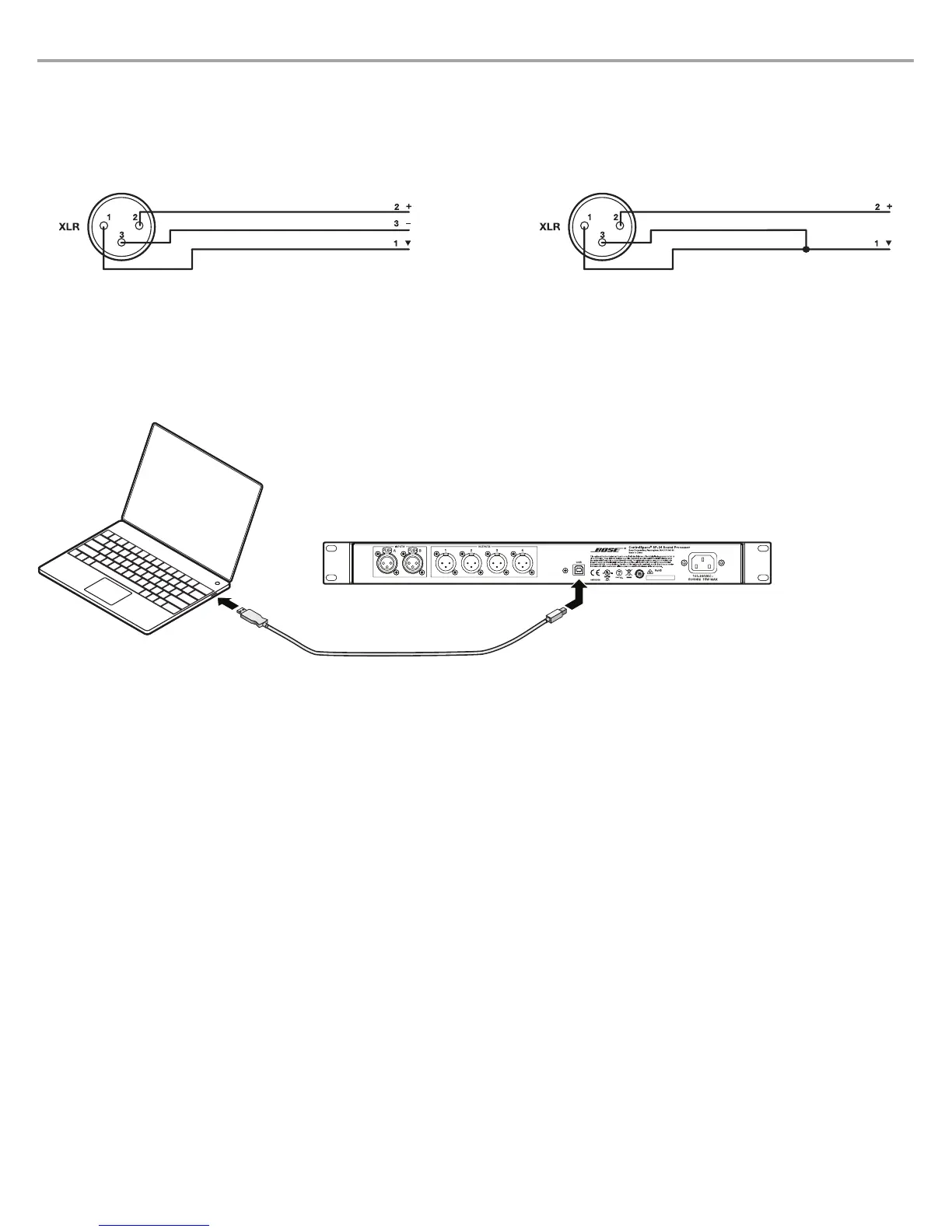

Balanced and Unbalanced Connections
The ControlSpace
®
SP-24 sound processor features balanced XLR connections which can be modified at the cable for use with
unbalanced equipment. Although balanced connections are preferred, an unbalanced connection can be made by tying together
pins 1 and 3.
USB Connection
When using the SP-24 Editor software, connect the supplied USB cable from the SP-24 sound processor to a PC. The USB cable
should be used directly between the SP-24 sound processor and the computer.
Note: Use of docking stations or USB hubs is not recommended.
SP-24 Editor
software
Note: The SP-24 Editor software and User’s Guide are available for download from pro.Bose.com.
System Requirements
The following are the minimum system requirements for the SP-24 Editor software:
• Microsoft
®
Windows
®
XP Professional, Service Pack 2 (or later)
• Microsoft Windows 7 (Professional or Ultimate)
• Intel
®
Pentium
®
4 850 Mhz processor (or better)
• Minimum screen resolution of 1280 x 768
• 512 MB RAM
• 100 MB disk space available
• USB connection
Balanced Unbalanced
