28 - Installation Guide
Installation
pro.Bose.com

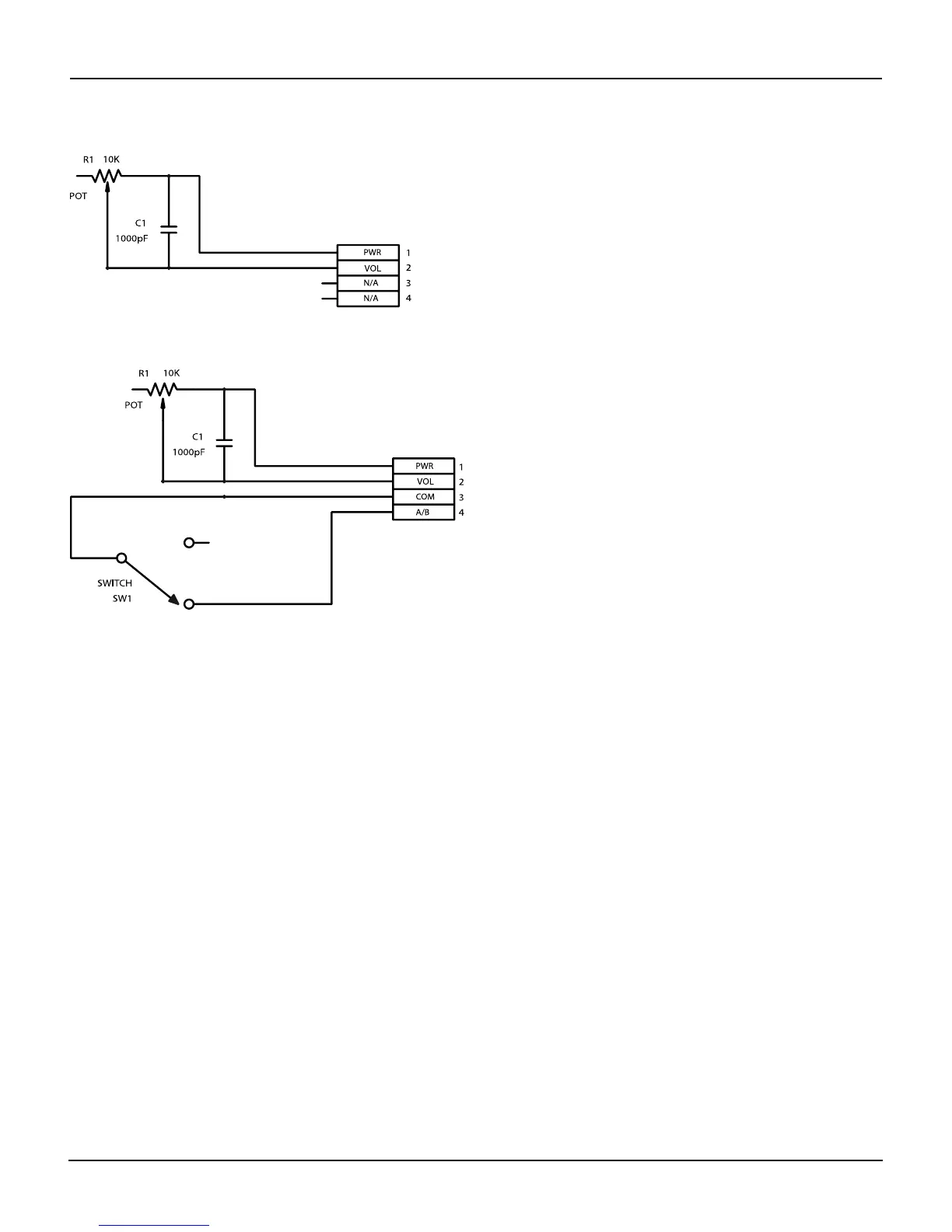

Detailed schematics of user interfaces:
Schematic for volume control user interface
Schematic for volume control with A/B select user interface
Mode user interface requirements
• For Mixer Mode:
Sources can be routed to either or both outputs. Use of one or two volume control user interfaces is optional. No user interfaces
are required.
• For Stereo Select Mode:
Source routing is fixed. This mode supports the use of one user interface in a single zone. Use the volume control with A/B select
user interface.
• For Dual Mono Select Mode:
Source routing is fixed. This mode supports the use of one user interface for each output channel. Use two volume controls with
A/B select user interfaces.
