44 - Installation Guide
Installation
pro.Bose.com

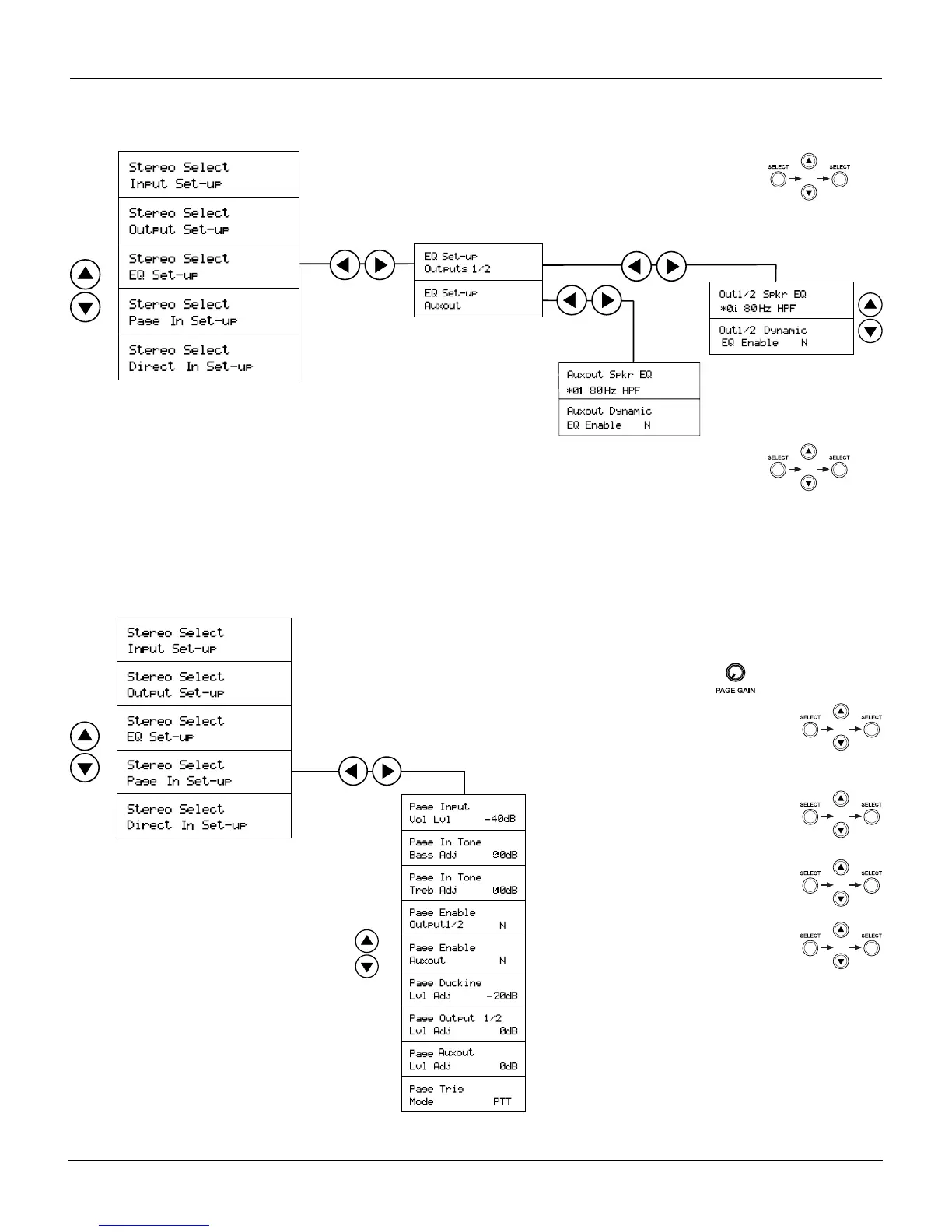

Stereo Select EQ Set-up
Stereo Select Page In Set-up
D
E
• For Spkr EQ
Move up or down to choose
the EQ setting needed
An asterisk (*) marks the selection made
Note: Dynamic EQ maintains tonal balance at all
listening levels. The equalization adjusts automatically
for the output level setting.
• For Dynamic EQ Enable
Choose N (no) or Y (yes)
• For Page Vol Lvl
• For Page Bass Adj
and Page Treb Adj
Adjust the value to
+/- 6 dB in increments of .5 dB
• For Page Enable
Choose N (no) or Y (yes)
• For Page Ducking Lvl Adj
Adjust the value from -50 dB
to 0 dB in increments of 1 dB
• For Output Lvl Adj
Adjust the value to
+/- 20 dB in increments of 1 dB
• For Page Trig Mode
Choose PTT or Auto
Note: In Page Trig Mode, the page output
can be triggered by pushing the button
on a push-to-talk style microphone (PTT),
or triggers automatically when a signal is
detected at the Page input (Auto).
To Next Page
