Installation
pro.Bose.com
Installation Guide - 35
Connecting an IZA 2120-LZ/HZ Amplifier to Multiple Zone Amplifiers
The auxiliary output of the IZA 2120-LZ/HZ can be connected in a star configuration to four zone
amplifiers without experiencing signal loss.
Zone
amplifier 1
Zone
amplifier 2
Zone
amplifier 3
Zone
amplifier 4
IZA 2120-LZ/HZ
AUX OUT
ZA 2120-LZA/HZA
balanced input

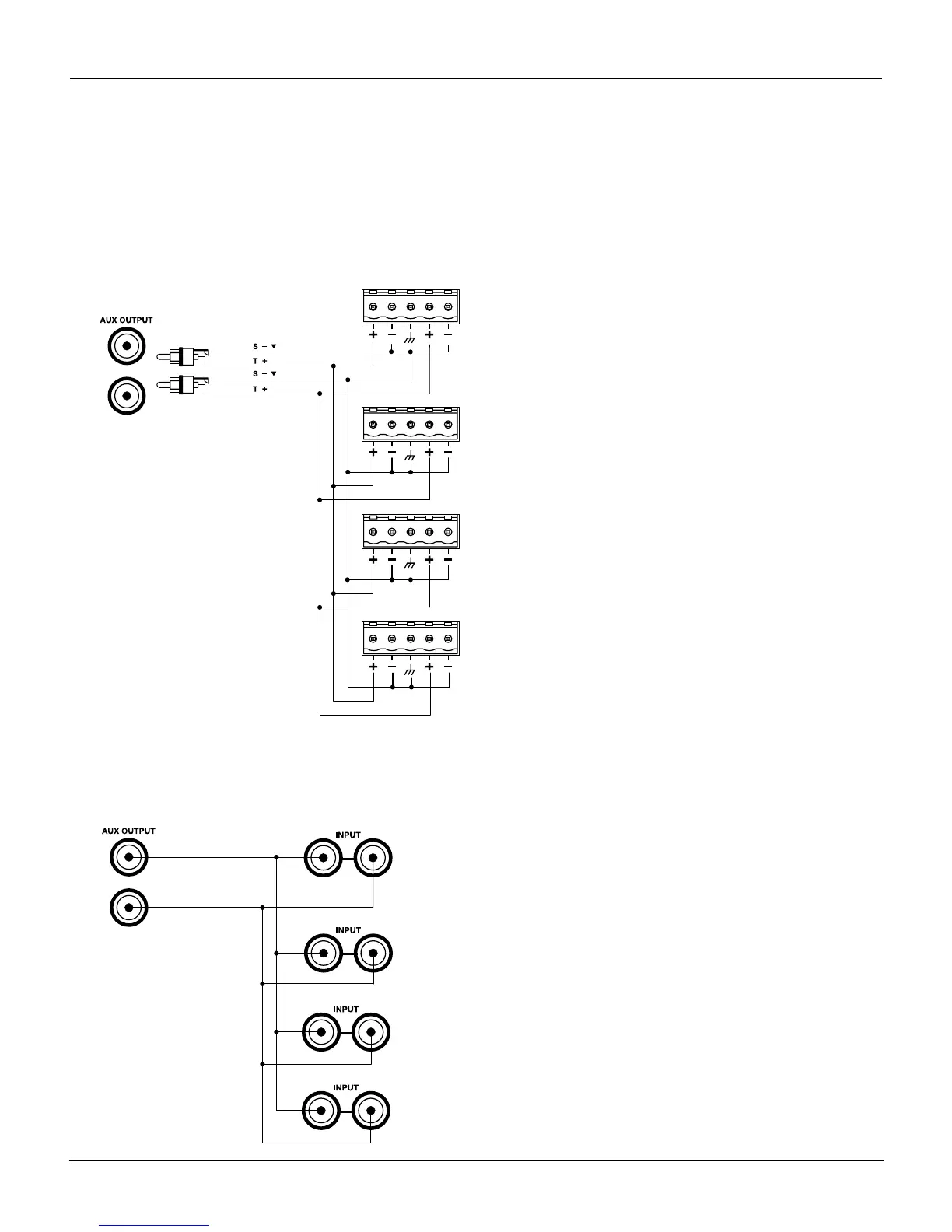

Figure 19. Connecting four zone amplifiers using T/S RCA connectors
Figure 20. Connecting four zone amplifiers using RCA male stackable connector cables
IZA 2120-LZ/HZ
AUX OUT
ZA 2120-LZA/HZA
balanced input
Zone
amplifier 1
Zone
amplifier 2
Zone
amplifier 3
Zone
amplifier 4
