32 - Installation Guide
Installation
pro.Bose.com

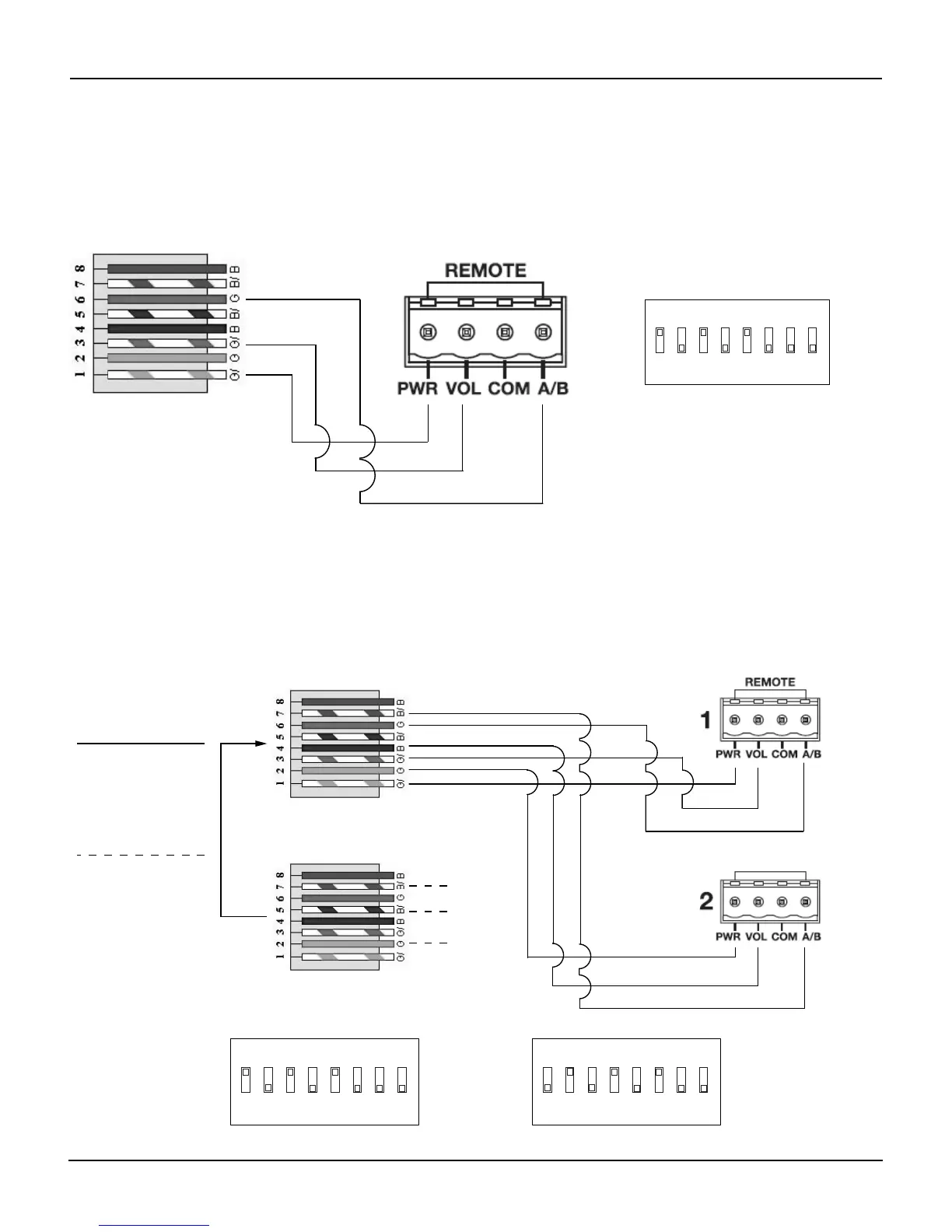

Connecting the CC-2 to a FreeSpace® Amplifier
One CC-2
Connect one CC-2 zone controller to FreeSpace® amplifier models IZA 2120-LZ/HZ.
Either RJ-45
on CC-2
FreeSpace
IZA 190-HZ, IZA 250-LZ,
IZA 2120-LZ/HZ
RJ-45 (Main)
on CC-2 #1
RJ-45 (Chain)
on CC-2 #2
FreeSpace
IZA 2120-HZ
Wiring with
Optional CAT 5
Daisy-Chain
Wiring if Using
Two Home Runs
to IZA 2120-HZ
VOL #2
A/B #2
PWR #2
Two CC-2s
Connect two ganged CC-2 zone controllers to FreeSpace® amplifier model IZA 2120-HZ.
DIPON
1 2 3 4 5 6 7 8
CC-2 Zone Controller
DIPON
1 2 3 4 5 6 7 8
CC-2 Zone Controller #1
DIPON
1 2 3 4 5 6 7 8
CC-2 Zone Controller #2
