30 - Installation Guide
Installation
pro.Bose.com

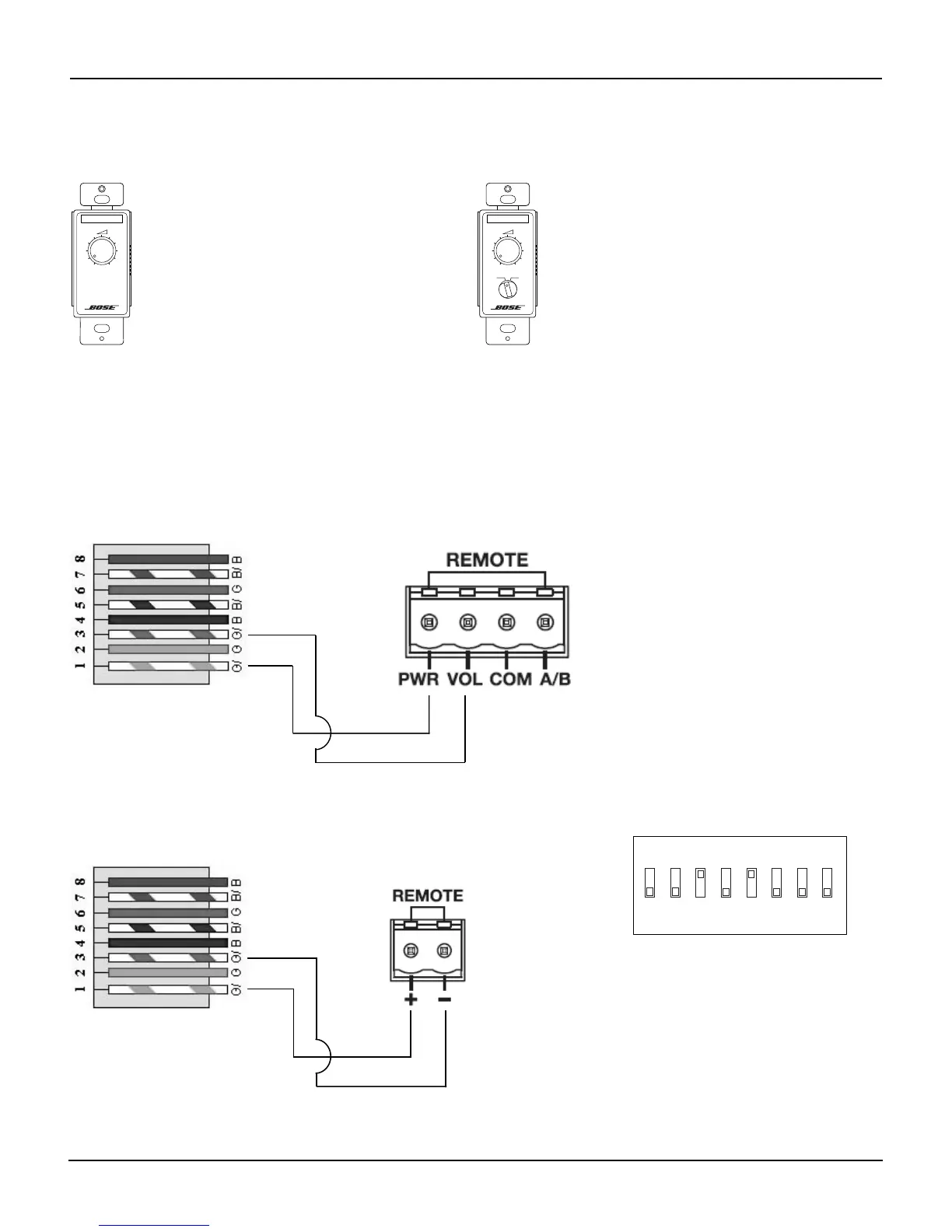

Figure 15. ControlCenter CC-1 and CC-2 Zone Controllers
Connecting a ControlCenter Zone Controller
FreeSpace
ZA 2120-LZ/HZ
Either RJ-45
on CC-1
FreeSpace
IZA 2120-LZ/HZ
Either RJ-45
on CC-1
Either RJ-45
On CC-1
FreeSpace
IZA 2120-LZ/HZ
Connecting the CC-1 to a FreeSpace® Amplifier
One CC-1
Connect one CC-1 zone controller to FreeSpace® amplifier models IZA 2120-LZ/HZ or ZA 2120-LZ/HZ.
DIP switch settings are the same when connecting to the ZA 2120-LZA/HZA.
BA
Bose® ControlCenter CC-1 Zone Controller
provides volume control only.
Bose® ControlCenter CC-2 Zone Controller
provides volume control and A/B source
selection.
DIPON
1 2 3 4 5 6 7 8
CC-1 Zone Controller #1
To Next Page
