PRODUCT DESCRIPTION

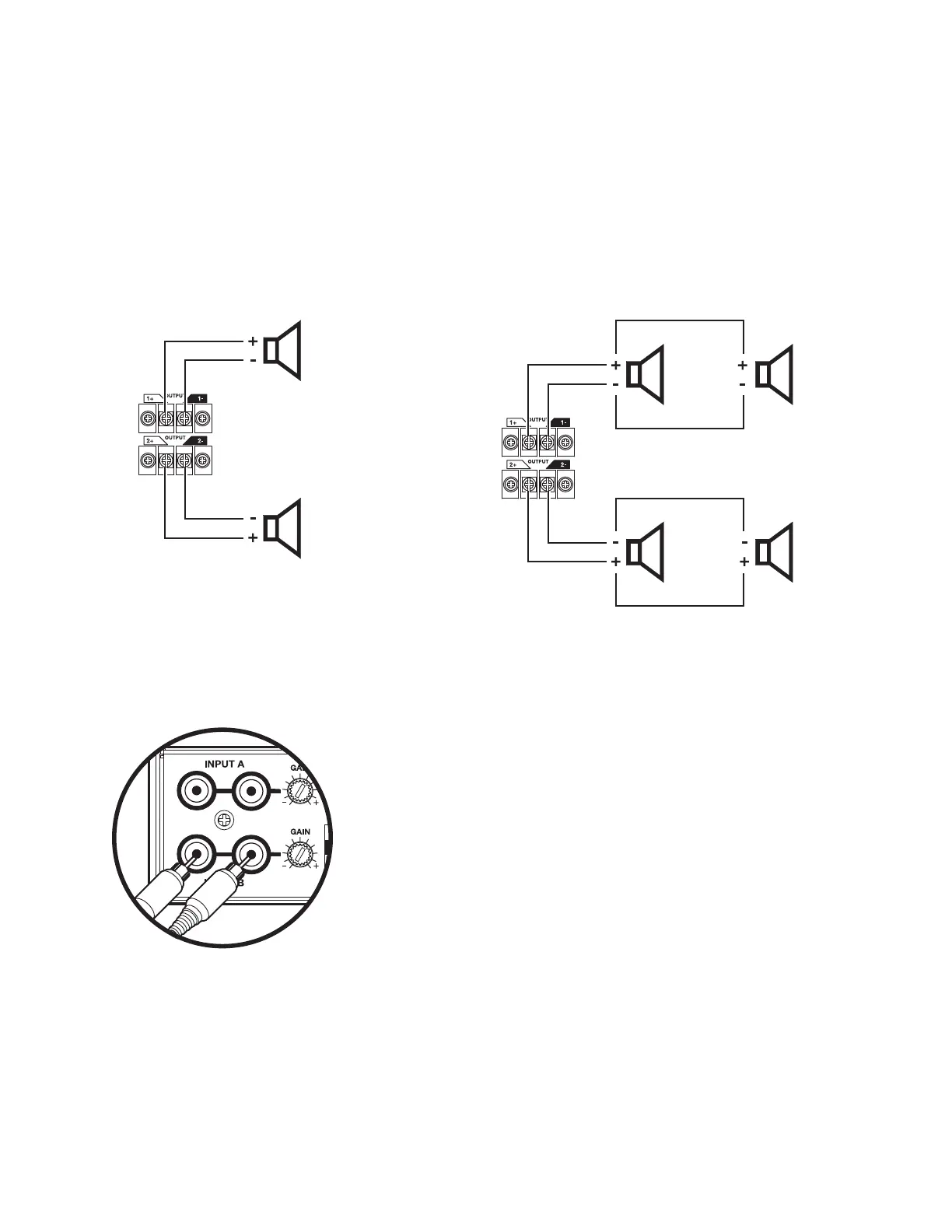

2. Make a single loudspeaker connection or connect two loudspeakers in parallel. When con-
necting the loudspeakers in parallel:
• Connect the wires from the amplifier to the matching positive (+) and negative (–) terminals
on the first loudspeaker.
• Connect the positive (+) and negative (–) terminals of the first loudspeaker to the positive (+)
and negative (–) terminals of the second loudspeaker.
CAUTION: Do not connect more than two loudspeakers together in this manner. Doing so could
damage the amplifier.
Input Connections
RCA input connections
Insert the RCA plugs into the INPUT A or INPUT B connectors.
Single 4-8 ohm loudspeaker Two 8 ohm loudspeakers in parallel

Bose FreeSpace IZA 250-LZ Specifications

General

Amplifier class	D
Frequency range	40 - 20000 Hz
RMS rated power	100 W
Output impedance	400 Ω
Audio output channels	- channels
Peak power per channel	- W
Signal-to-Noise Ratio (SNR)	- dB
Total Harmonic Distortion (THD)	0.3 %
XLR in	Yes
Line inputs (RCA)	2
Line outputs (RCA)	1
Speakers connectivity type	RCA
Product color	Silver
Rack capacity	1U
Volume control	Rotary
Connectivity technology	Wired
AC input voltage	230 V
AC input frequency	50 - 60 Hz
Power protection features	Overheating, Overload
Power consumption (typical)	15 W
Package weight	3000 g

Weight and Dimensions

Depth	310 mm
Width	214 mm
Height	45 mm
Weight	2200 g
