Bose L1 Pro16 Service Manual

19
Main Part List
L1 Pro16 Extension (see Figure 5)
Item
Number
Description
Bose Part
Number
Vendor Part
Number
Notes
1 SCREW, T3XL12 - T153301230610-02
2 EXTENSION, REAR - T100426100100
3 CABLE, EXTEND, 6PIN,MOLEX - T641700170900V
4 EXTENSION, FRONT - T100426000100
5
NON WOVEN, SHEET_BLACK_
ADHESIVE, DS1
- T182900003170
6 ARRAY LABEL - T911700056740
Note: The array extension is not repairable. The above parts are listed for reference only.
Bose part number is 833350-0110 (EXTENSION ASSY) as listed in the packaging parts list.
1
234
5
6

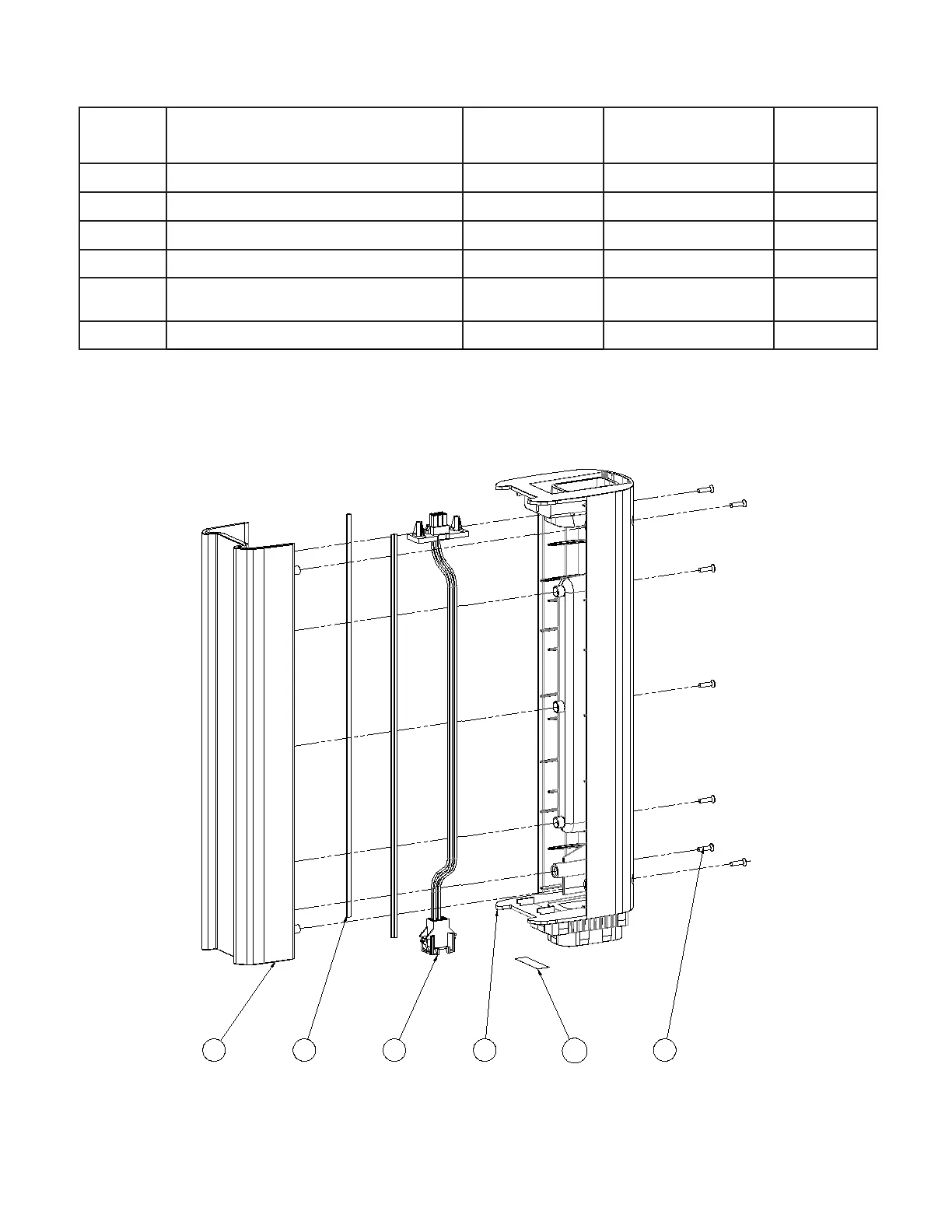

Figure 5. L1 Pro16 Extension Exploded View

Bose L1 Pro16 Specifications

General

Amplifier class	D
Frequency range	- Hz
RMS rated power	1250 W
Subwoofer peak power	1000 W
Sound pressure level (max)	124 dB
Amplifier	Built-in
Speaker type	-
Number of drivers	16
Built-in subwoofer	Yes
Subwoofer driver diameter (imperial)	18 \
Type	Freestanding Public Address (PA) system
Mounting type	Floor
Product color	Black
Volume control	Rotary
Number of mixer channels	3 channels
Connectivity technology	Wired & Wireless
6.35 mm (1⁄4-inch) input	1
Power source type	AC

Weight and Dimensions

Depth	456 mm
Width	355 mm
Height	2012 mm
Weight	24800 g
