Bose L1 Pro16 Service Manual

9
Packaging Part List
L1 Pro16 (includes Array) (see Figure 1)
Item
Number
Description
Bose Part
Number
Vendor Part
Number
Notes
1 CARTON 857754-0010 T302001480000
2 EXTENSION ASSY 833350-0110 T910000080320
3 CARRY BAG, BLACK 856994-0110 T310000077000
4 MANUAL BAG 865047-0010 -
5 FOAM EPE TOP WHITE 25KG/M3 857744-0010 -
6 FOAM EPE BOTTOM 857752-0010 -
7 CARDBOARD SUPPORT 857746-0010 -
8 SAFETY SHEET 857139-0010 -
9 QSG 857138-0010 -
10
SHEET,USER SOFTWARE UPDATE
GUIDE
865083-0010 -
11
CABLE, LINE CORD, IEC C13, NA 350745-0010 T640100016600
3
CABLE, LINE CORD, EC C13, EU 350747-0010 T640100015400
CABLE, LINE CORD, IEC C13, JP 350749-0020 T640100015500
CABLE, LINE CORD, IEC C13, UK 350748-0010 T640100015200
CABLE, LINE CORD, IEC C13, AU 350746-0010 T640100021100
2
3
11
1
6
5
7
10
98
4

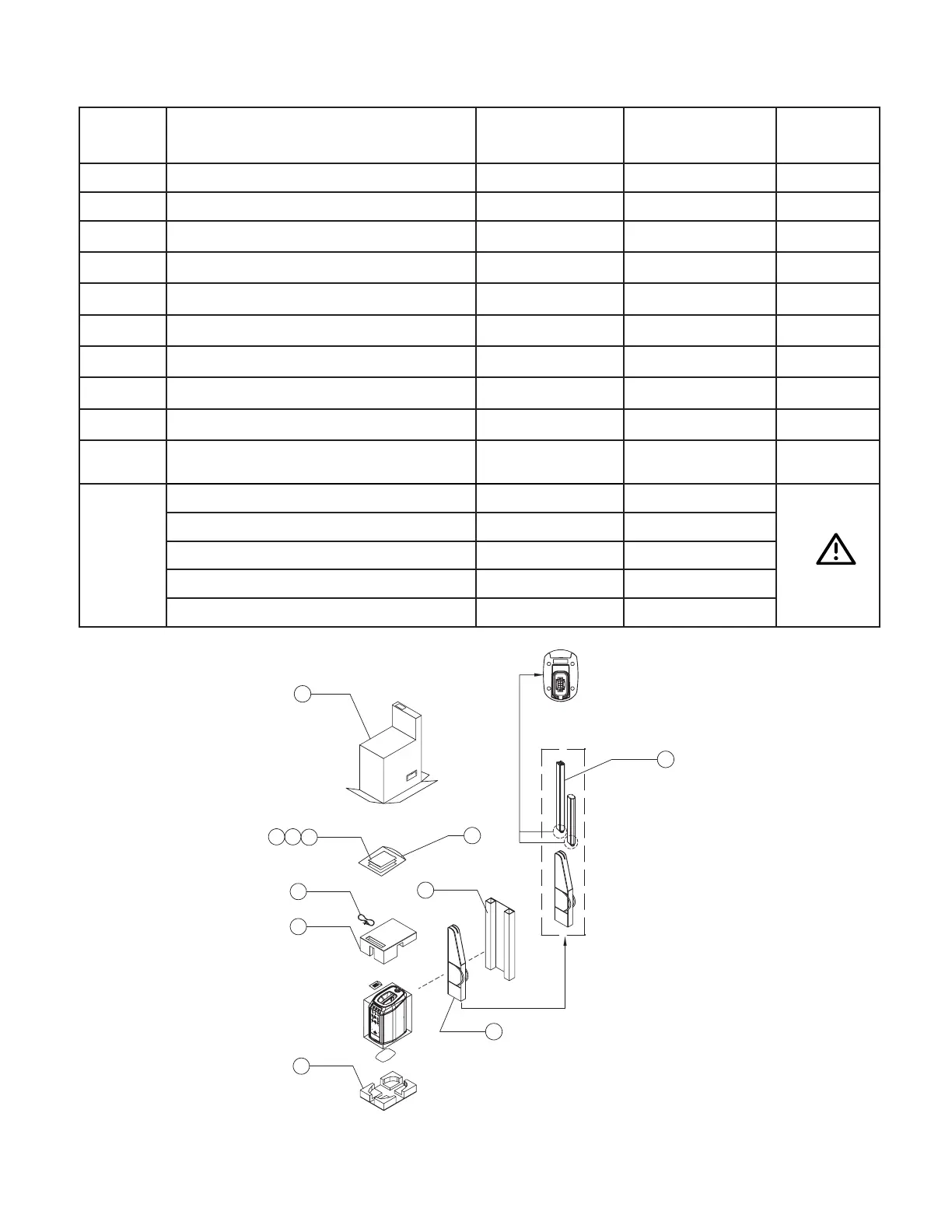

Figure 1. L1 Pro16 Packaging Exploded View

Bose L1 Pro16 Specifications

General

Amplifier class	D
Frequency range	- Hz
RMS rated power	1250 W
Subwoofer peak power	1000 W
Sound pressure level (max)	124 dB
Amplifier	Built-in
Speaker type	-
Number of drivers	16
Built-in subwoofer	Yes
Subwoofer driver diameter (imperial)	18 \
Type	Freestanding Public Address (PA) system
Mounting type	Floor
Product color	Black
Volume control	Rotary
Number of mixer channels	3 channels
Connectivity technology	Wired & Wireless
6.35 mm (1⁄4-inch) input	1
Power source type	AC

Weight and Dimensions

Depth	456 mm
Width	355 mm
Height	2012 mm
Weight	24800 g
