Bose PS602 - Distributed CC-1 Zone Controller Connection to the Amplifier

Installation Guide
English 27
Remote Volume Control
pro.Bose.com
Distributed CC-1 Zone Controller Connection to the Amplifier
For installations using multiple CC-1 zone controllers, you can also connect the zone controllers to the CV41 4-to-1
Converter, then create a single home run from the CV41 back to the amplifier. Create these connections using CAT 5 cables
and RJ-45 connectors.
The CV41 connects two CC-1 zone controllers to a PS602, or up to four CC-1 zone controllers to a PS604. Each zone
controller can be independently configured to control any output, or combination of outputs.
If only one CC-1 is used to control all outputs, then the CV41 is not required, as the PS602 and PS604 can accept one RJ-45
connection.
CAT 5 cable
609 m (2000 ft) max
CAT 5 cable
7.6 m (25 ft) max
Adaptable Power Amplifier
LIMIT
SIGNAL
12 34
PowerShare
PS604
POWER

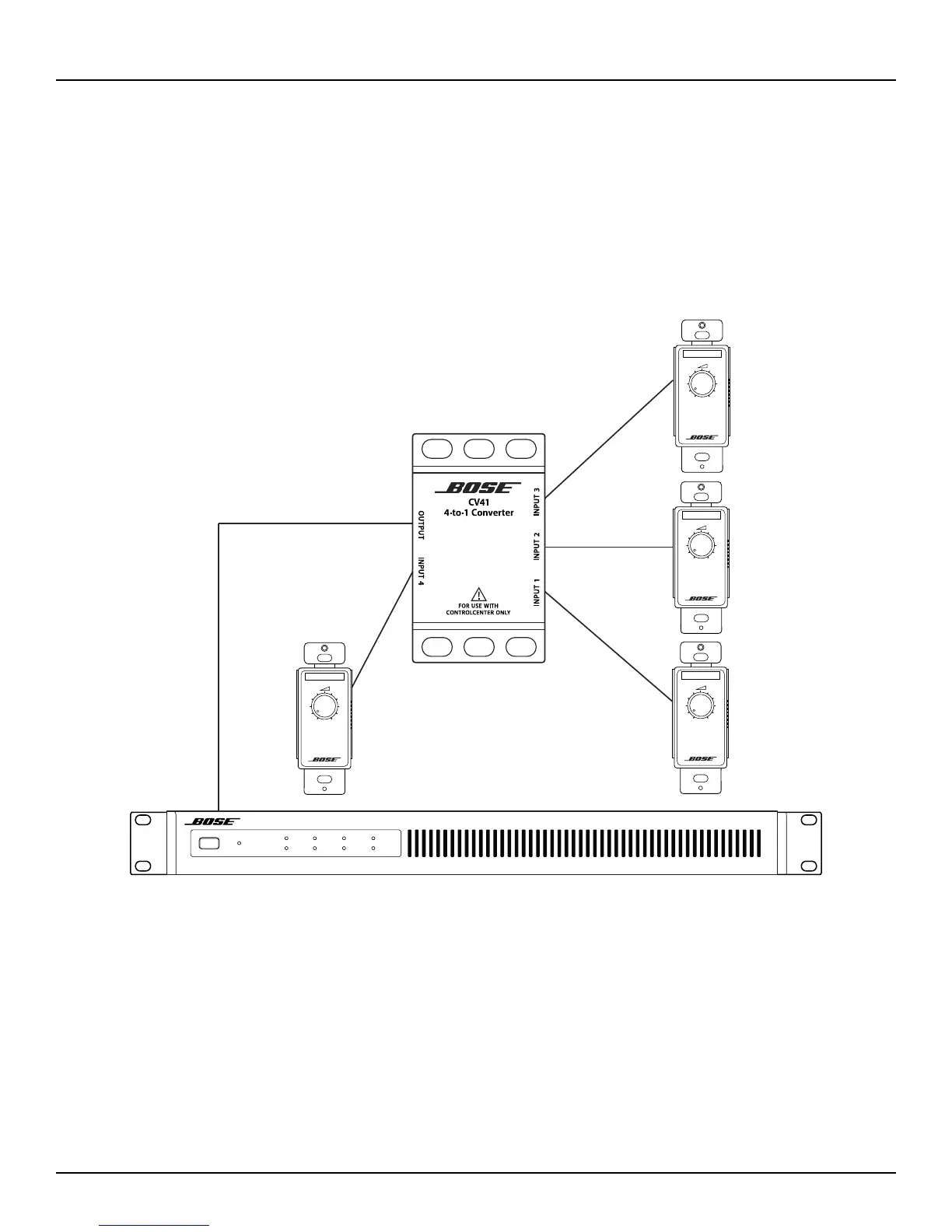

Figure 11. Distributed CC-1 ControlCenter zone controller connection to amplifier
