Bose ShowMatch DeltaQ SM5 User Manual

12
MAIN PART LIST
ShowMatch
TM
SMS118 Subwoofer (refer to Figure 4)
Item
Number
Description Part Number Qty. Note
1 CONN, SPEAKON, 4 POS, MALE, 240V, 30A, BLK, SVCE 298548 1
2 GASKET, CONNECTOR, NL4MP, SVCE 751086-011S 1
3 ASSY, GRILLE, SVCE 757729-011S 1
4 GASKET, GRILLE - 2
5 SCREW, WOOFER, SOCKET HEAD CAP, M6 – 1.0 X 25 - 8
6 WOOFER, 18 INCH, B&C SPKRS, 18SW115, SVCE 344052-001S 1
7 SCREW, INSERT, RIGGING, BLK 367239-0110 8
8 SCREW, M5 X 25, PAN HEAD - 4
9 GASKET, GRILLE, PORT WALL - 2
10 FOOT, NESTING, SVCE 740899-011S 4
11 SCREW, FOOT, M6 X 20, PAN HEAD - 4
12 SCREW, M5 X 20, PAN HEAD - 4
13 SCREW, M5 X 30, PAN HEAD - 4
14 ASSY, END CAP, SVCE 768875-012S 2
15 PIN, QUICK RELEASE, 8MM DIA, 16MM LGTH, SVCE 757313-001S 8
16 ASSY, RIGGING, LEF
T
- 2
17 ASSY, PANEL, I/O, SUB, SVCE 748626-011S 1
18 ASSY, RIGGING, RIGHT - 2
19 SCREW, M5 X 40, PAN HEAD - 8
20 SCREW, M6 X 40, FLAT HEAD - 4
21 PLATE, POLE MOUNT, M1551 - 1
22 GASKET, POLE MOUNT PLATE - 1
1
2
3
4 2x
5 8x
6
4x 8
9
2x
4x 10
4x 11
2x 12
2x 13
14
14
18
19 4x
15 2x
15 2x
16
17
20
4x
21
22
7 4x
16
19 4x
15 2x
14
14
15 2x
12 2x
18
2x 13

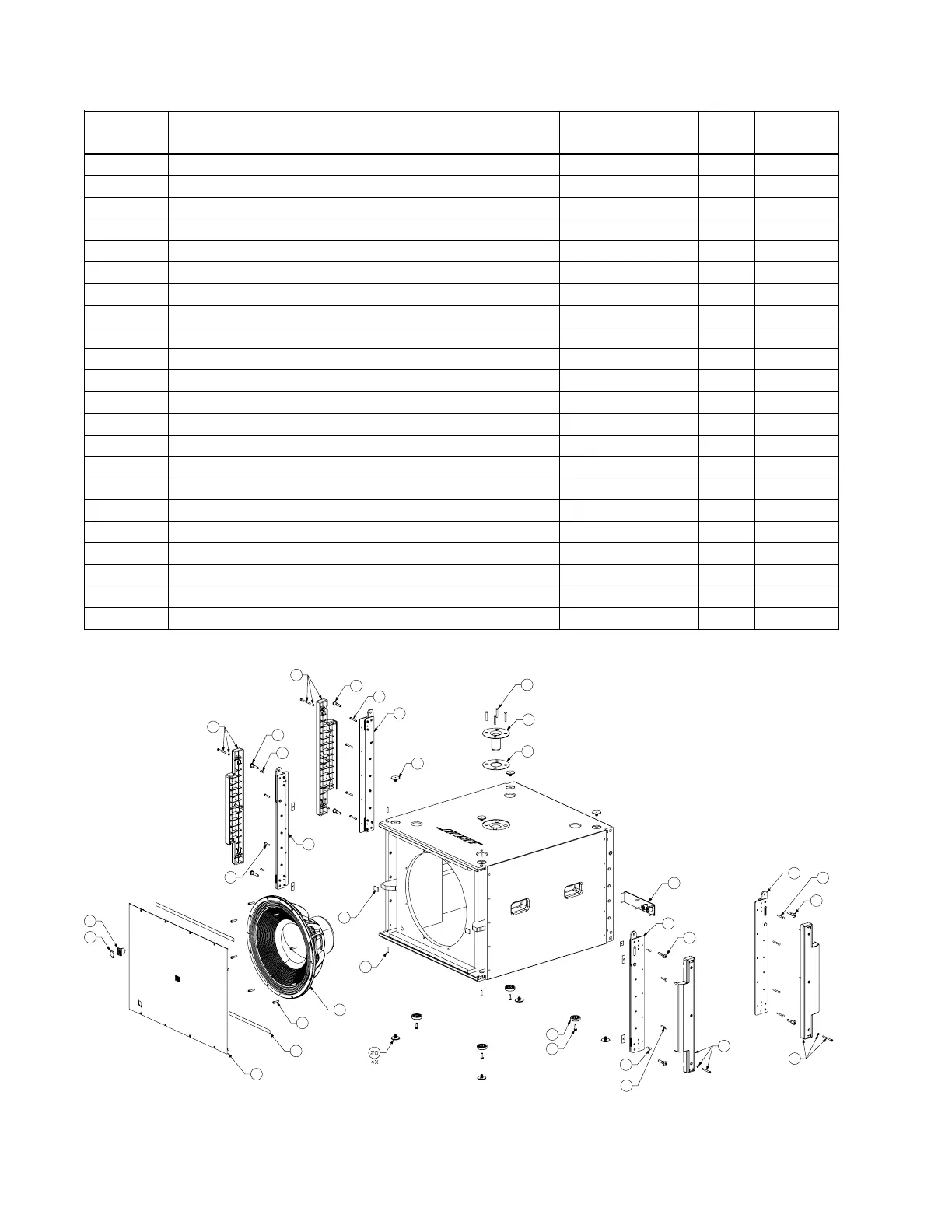

Figure 4. ShowMatch
TM
SMS118 Subwoofer Exploded View
