17
DISASSEMBLY PROCEDURES
SMS118 Subwoofer

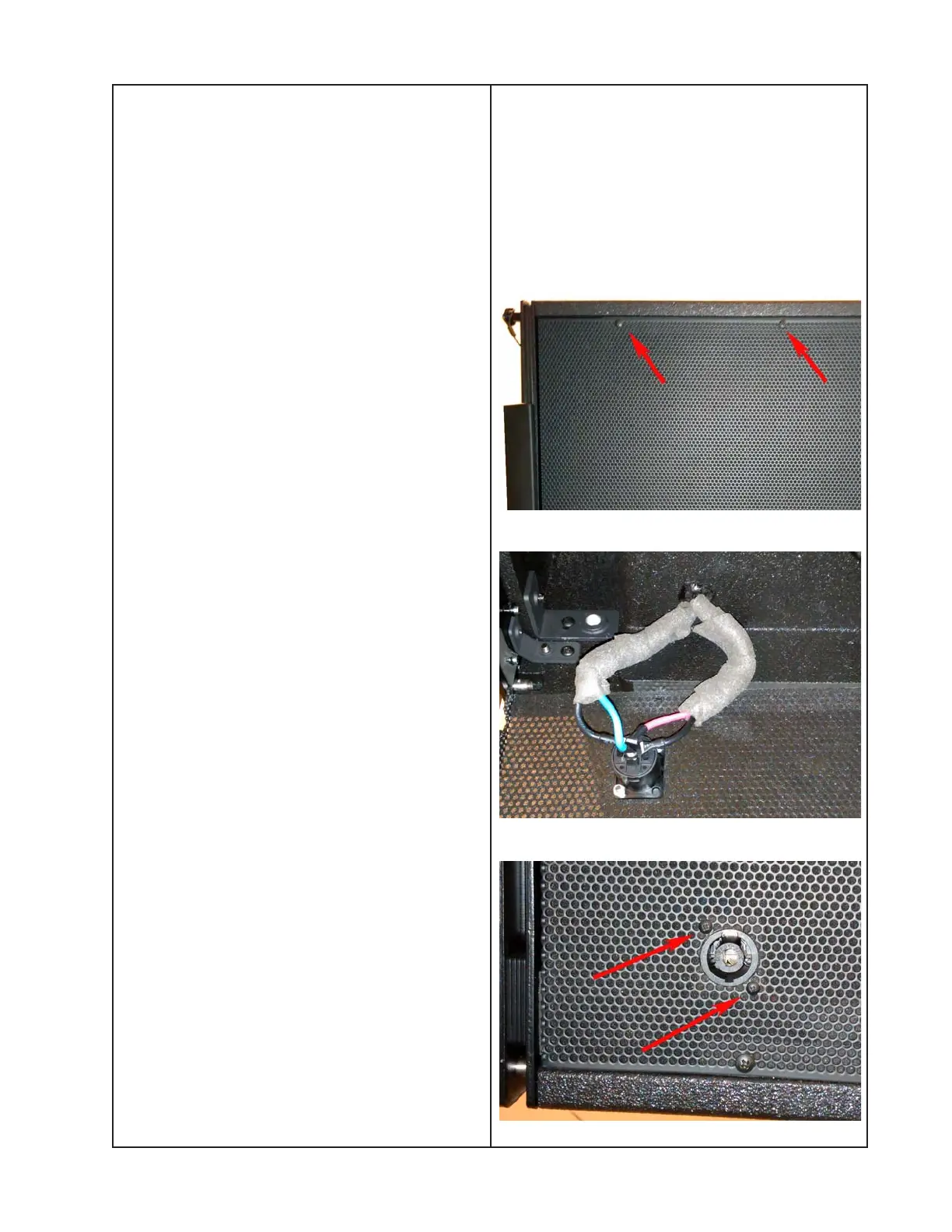

Refer to Figure 4 for the following
procedures.
CAUTION: During re-assembly, be sure to
use blue Loctite on all fasteners. Failure to
do so could cause a safety issue or buzz.
The screws used to secure the grille are
wood screws and do not require Loctite.
1. Grille Removal
1.1 Remove the eight screws that secure the
grille to the enclosure. Lift off the grille.
Note: Take care to not damage the front
Neutrik
®
connector or wiring harness during
removal.
2. Front Neutrik Connector Removal
2.1 Perform procedure 1 to remove the grille.
Take care to not damage the wiring for the
front Neutrik connector.
2.2 Make a note of the wiring configuration
and disconnect the Faston connectors from
the Neutrik connector.
2.3 Remove the two screws that secure the
connector to the grille. Lift off the connector.
Retain the gasket for re-use.
Waveguide Screw Locations
Front Neutrik Jack Screw Locations
Front Neutrik Jack Screw Locations
