DISASSEMBLY PROCEDURES
DeltaQ
TM
Array Loudspeaker
Refer to Figure 3 and the photos at right for
these procedures.
CAUTION: During re-assembly, be sure to
use blue Loctite on all fasteners. Failure to
do so could cause a safety issue or buzz.
1. Grille Removal
1.1 Remove the six screws located on the
top and bottom of the enclosure that secure
the grille to the enclosure. These screws are
located near the front edge of the enclosure.
Lift off the grille.
2. Horn Panel Removal
2.1 Perform procedure 1.
2.2 Remove the four screws on the outside
of the enclosure that secure the horn panel.
See photos at right. Lift out the horn panel.
Note: There are 2 screws on the top and 2
on the bottom of the enclosure.

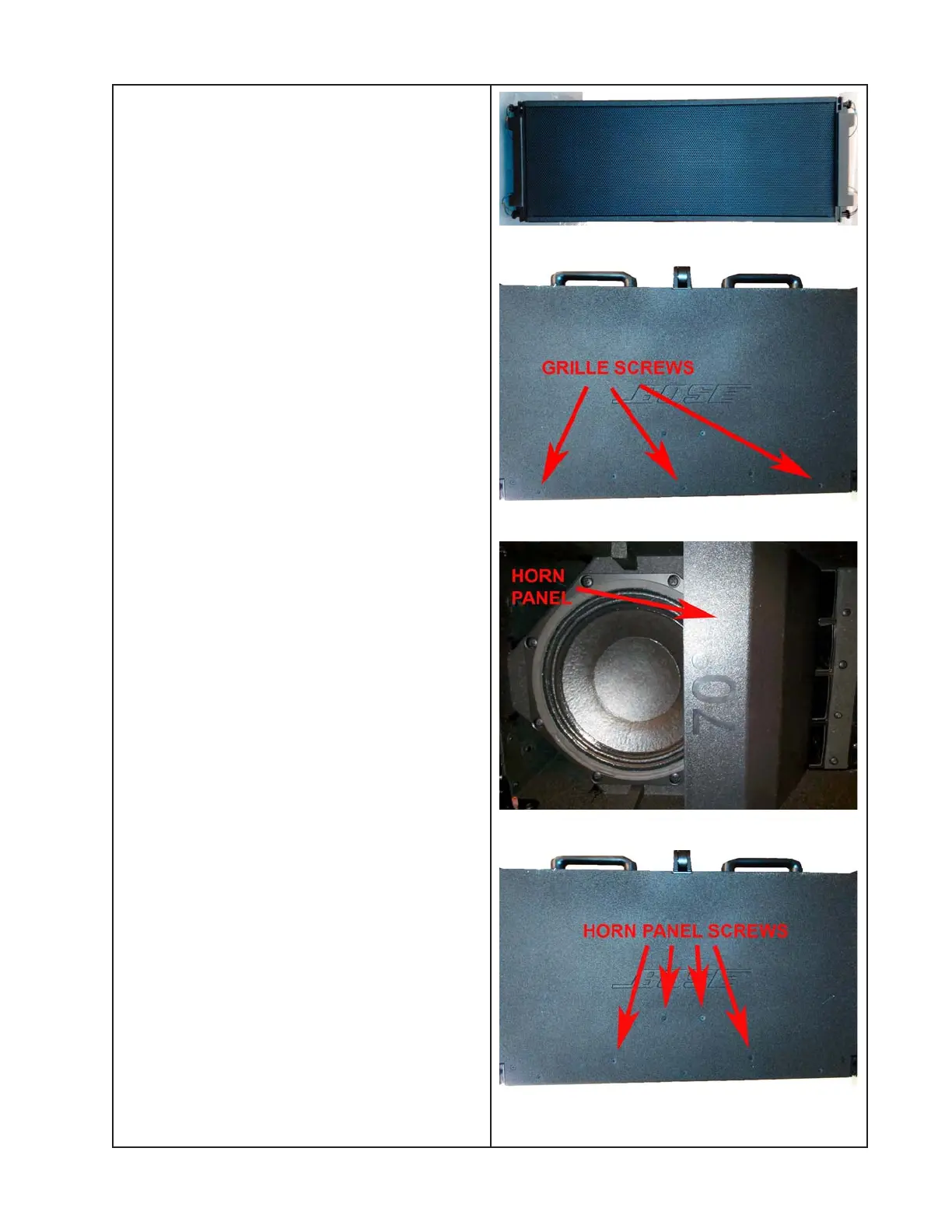

Grille Front View
Grille Screw Locations
Horn Panel Location
Horn Panel Screw Locations
