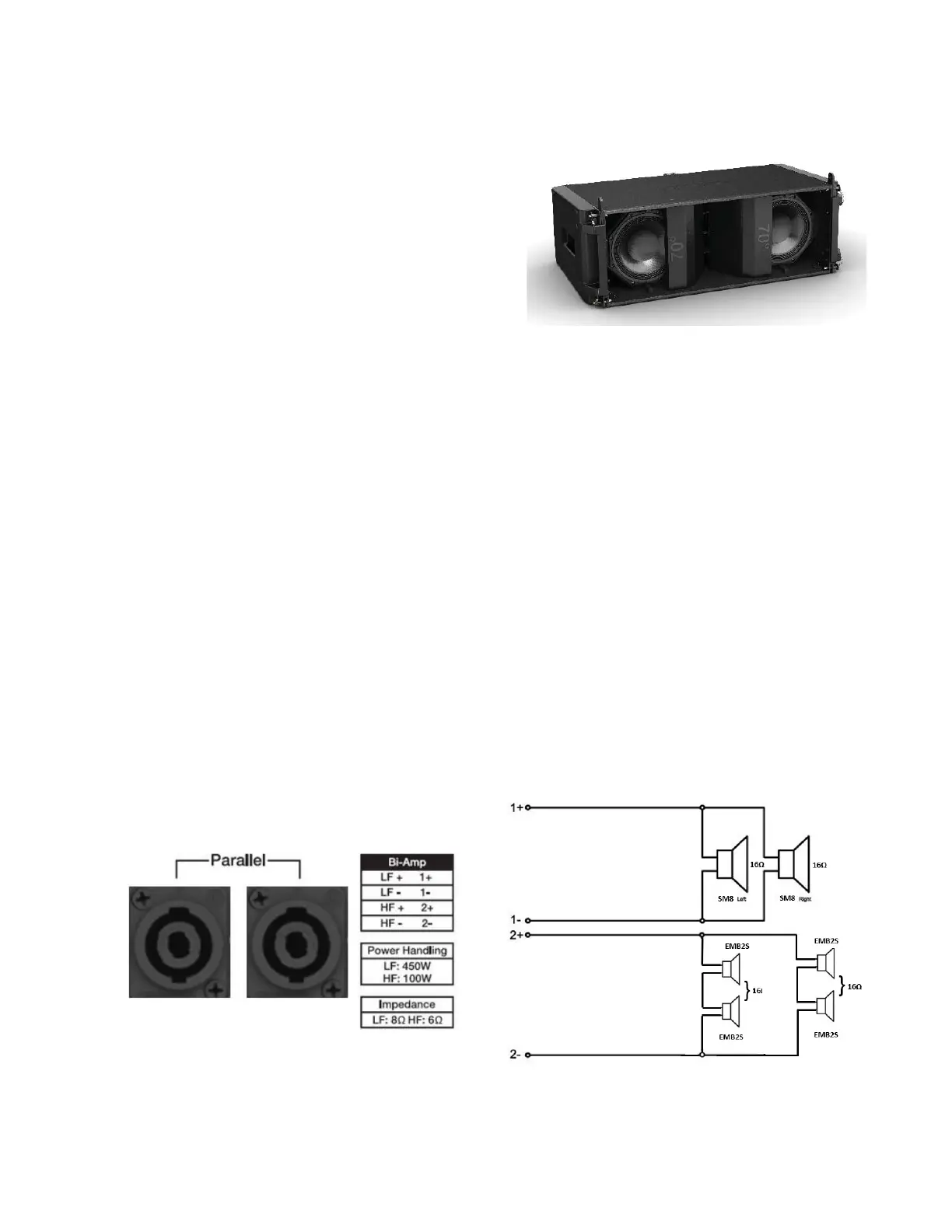

Product Description
ShowMatch
TM
DeltaQ™ Array Loudspeakers
Bose
®
ShowMatch DeltaQ array loudspeakers
maximize versatility with field-changeable
waveguides in compact, lightweight enclosures
featuring removable side caps that optimize both
installation and portable applications. Available in
5°, 10°, and 20°vertical coverage, ShowMatch
modules can form DeltaQ arrays, constant
curvature, or traditional J-array configurations to
maximize versatility for a wide range of audience
areas and budgets. Matching subwoofer and
rigging accessories available.
Key Features
• DeltaQ technology is the next-generation line-array design that allows “Q” (directivity) to
vary with each module in the array for more consistent coverage over wide frequency range, re-
duced array weight and cost, and outstanding vocal clarity
• Changeable waveguides – includes both 70°and 100°waveguides to adjust horizontal
coverage. Largest-in-class size provides superior coverage control and vocal clarity. Change
single panel for asymmetrical patterns. Optional 55°waveguides for SM5.
• Compact, portable enclosure – Versatile design allows both fixed install and portable applica-
tions, from small clubs and houses of worship to the largest performing arts centers and AV
productions.
• Tour-sound output level – 4x Bose EMB2S compression drivers, improved with more HF
output, and 2x 8-inch neodymium high-power woofers allow array output up to 145 dB SPL.
• 3-point “quick pin” rigging - Fast, easy setup with up to 24 full-range modules and 10:1
safety factor.
• Removable side rigging-guard/handles – provides rigging guard and hand holds for portable
applications. Easily removed for permanent installs for reduced width and cleaner visual appear-
ance.
• Rigging overlap angle adjustment - only on SM5 modules, coverage overlap or “splay” can
be adjusted from 0 to 5°, in 1°increments, to provide long throw distance and high SPL.
12Ω
12Ω
