18
DISASSEMBLY PROCEDURES
3. Woofer Removal
3.1 Perform procedure 1, grille removal.
3.2 Remove the eight screws that secure the
woofer to the enclosure. carefully lift out the
woofer.
3.3 Disconnect the two Faston connectors
from the woofer.
4. Input / Output Panel Removal
4.1 Remove the six screws that secure the
input panel to the enclosure. Lift off the I/O
panel.
4.2 Make a note of the wiring configuration
and disconnect the woofer wiring harness
from the input panel.
5. Pole Mount Removal
5.1 Remove the four screws that secure the
pole mount to the enclosure. Lift out the pole
mount.
6. End Cap Removal
6.1 Remove the three hex head cap screws
that secure the end cap to the rigging as-
sembly. Lift off the end cap.
CAUTION: The rigging assemblies are not
removable due to safety concerns. Do not
attempt to remove them from the enclosure.
7. Foot Removal
7.1 Remove the one screw that secures the
foot to the enclosure. Lift off the foot.

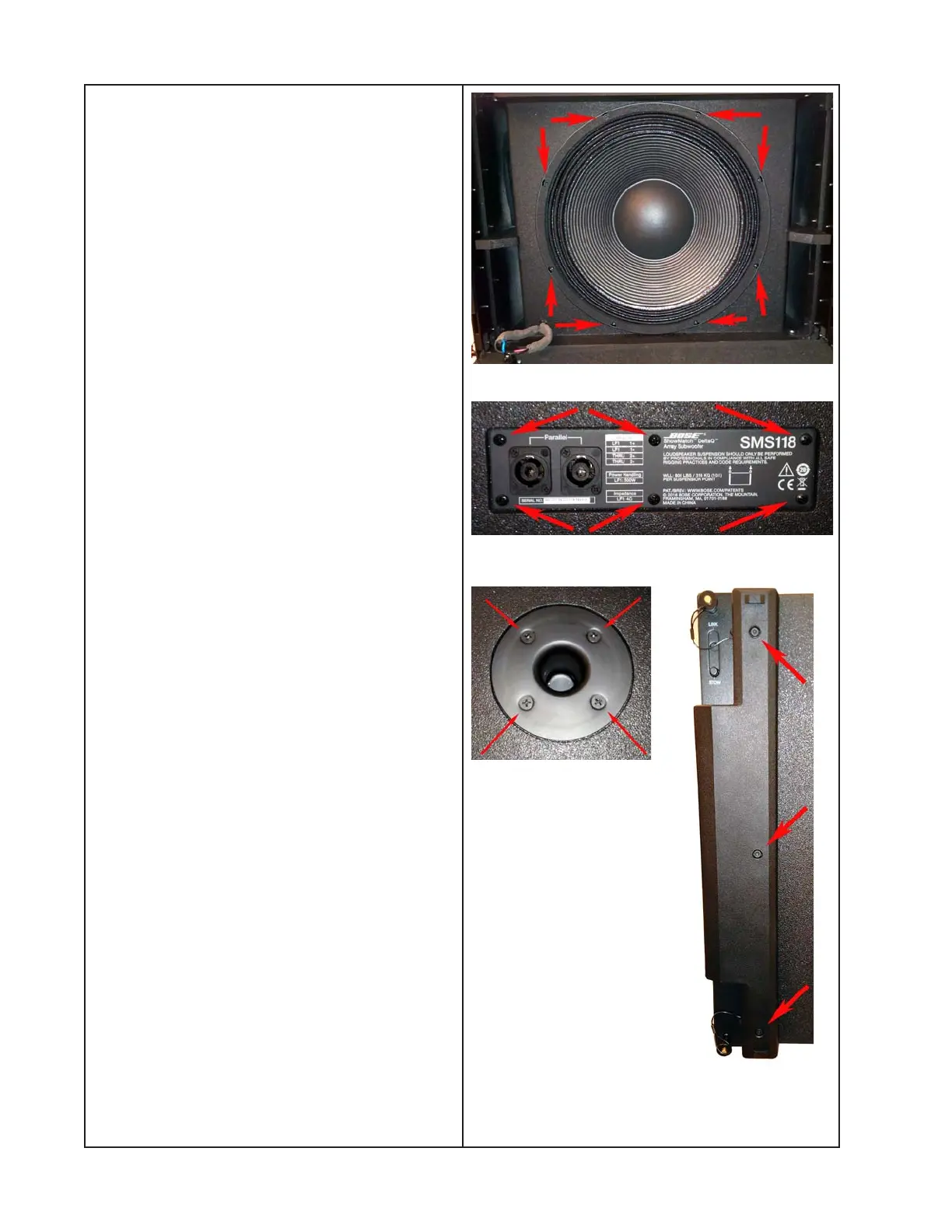

I/O Panel Screw Locations
End Cap Screw
Locations
Woofer Screw Locations
Pole Mount Screw
Locations
