CONTROL DETAILS - CONTINUED

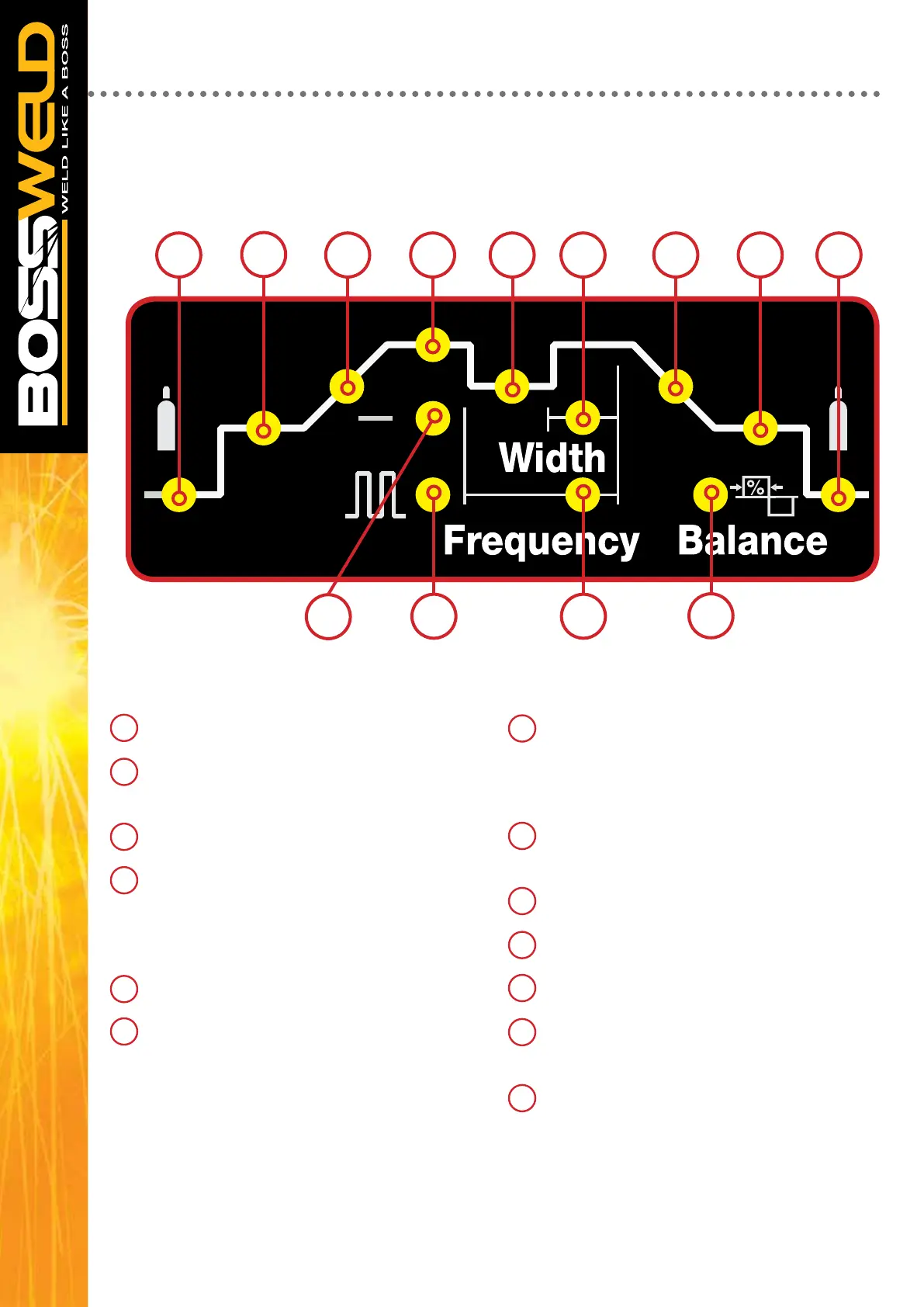

The labeled gure and the corresponding table explain in detail the components of the control panel.
Where an indicator is lit on the control panel, the LCD panel will show the value
of that indicator.
1
2
3 4 7 8 10 12 13
5
6 9
11
1 Gas Pre-Flow Time
Seconds 0.0 – 2.0
2 Starting Current (4T)
Amps DC 10 - 170
AC 10 - 200
3 Upslope Time
Seconds 1.0 – 10.0
4 Welding Peak Current
Amps TIG DC 10 - 170
TIG AC 10 - 200
MMA DC 10 - 200
MMA AC 10 - 200
5 No Pulse Weld
On or off
6 Pulse Weld
On or off
7 Welding Base Current
Amps TIG DC 10- 170
TIG AC 10- 200
MMA DC 10- 200
MMA AC 10 – 200
8 Ratio of pulse Duration to Base Current
Duration
% 5-95
9 Pulse Frequency
Hz 0.5 – 200
10 Downslope Time
Seconds 0 - 10
11 Balance (TIG AC only)
-5- +5
12 Crater Arc Current
Seconds DC 10- 170
AC 110 – 200
13 Gas Post Flow Time
Seconds 0.1 – 10
