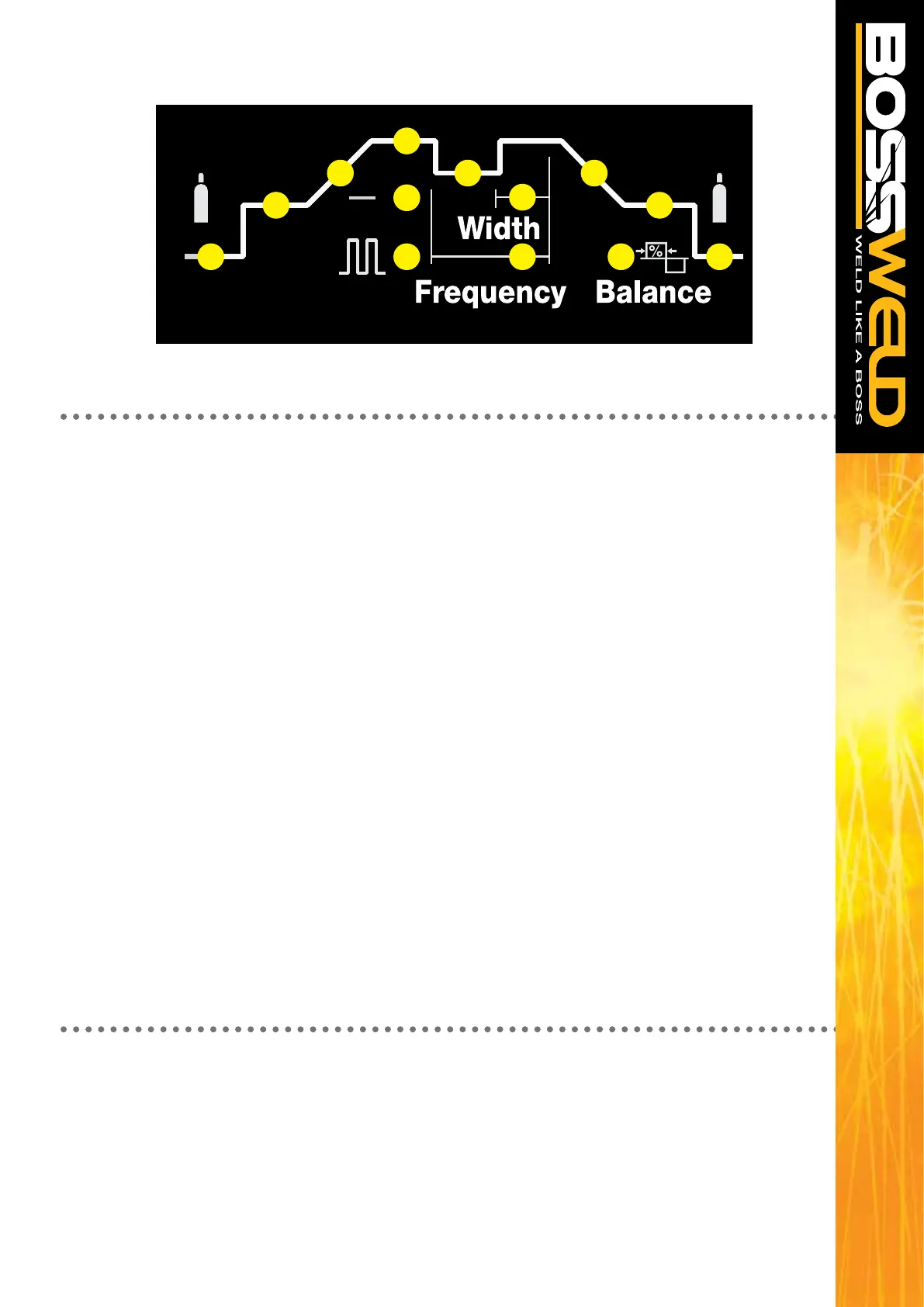

BASIC WELD CYCLE EXPLANATION
Pre Gas
Selection for gas ow time prior to the arc starting.
Start Current
Selection for the amount of amps required at the start of the weld.
Upslope
Selection for the transition time from Start Amperage to Peak Amperage.
Peak Current
Selection for the Maximum Welding Amperage required during welding.
Pulse
Selection for Pulse or No Pulse.
Base Current only when Pulse is Selected
Selection for the Base Welding Amperage required during welding.
Downslope
Selection for the transition time from Peak Amperage to Finish Amperage.
Crater Arc Current Selection for the amount of ll at the end of the weld
Post Gas
Selection for gas ow time after the arc nishes.
AC WELDING ONLY
Balance
Selection to adjust the balance of the AC wave form in AC TIG mode. Adjustment of
the arc to be balanced, penetrating or oxide cleaning during AC TIG welding
