-11-
QUICK RELEASE DOOR
Always disconnect air supply: 1.) Before making adjustments; 2.) When servicing the tool;
3.) When clearing a jam; 4.) When tool is not in use; 5.) When moving to a different work
area, as accidental actuation may occur, possibly causing injury.
Models T50S2, T50S4 and T50S5 contain a Quick Release Door feature. The door is designed to “pop” open
if a jam occurs providing easy access for removing a jammed fastener.

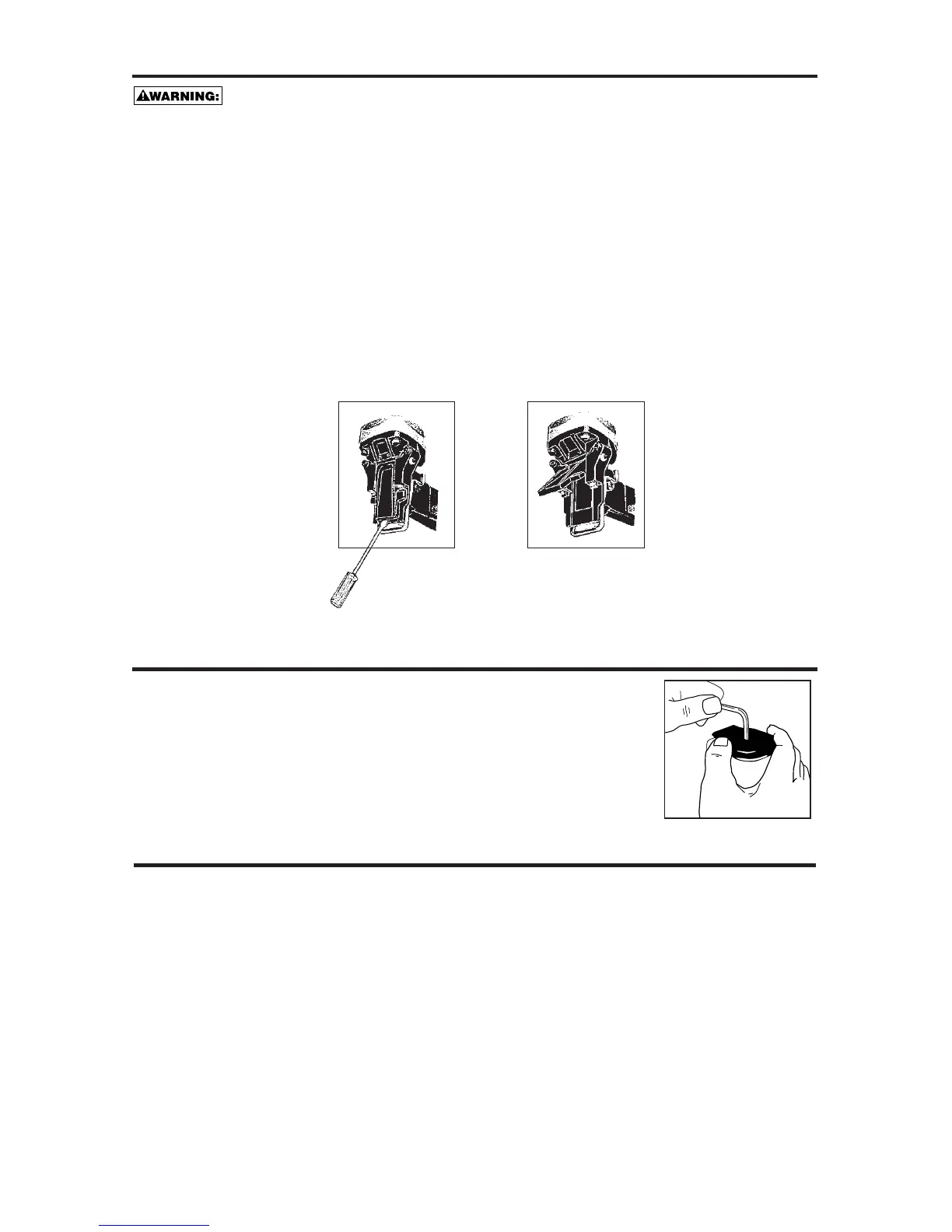

If the door does not “pop” open when a jam occurs, it can easily be opened with a screwdriver, as shown in
FIG. 1. Use a firm twist on the screwdriver to open the door, see FIG. 2.
The door will not open completely if the driver is still down. To open the door completely the driver must be
pushed back into the tool.
The “Quick Release Door” makes cleaning the nose and front portion of the magazine a rapid and easy
operation with a minimum of effort.
To close the door simply press the door firmly against the edge of the work table or suitable stationary object
until the two latch pins snap into a locked position.
CAUTION: Do not use your hands to close the door as injury may occur if skin is pinched
between the door and nose when the latch pins engage.
DIRECTIONAL EXHAUST DEFLECTOR
Loosen screw as shown. Adjust to desired exhaust direction and tighten screw.
ACCESSORIES AVAILABLE
BC601 4 oz. Bostitch Air -Tool Lubricant
BC602 1 pint Bostitch Air -Tool Lubricant
BC603 1 pint Bostitch “Winter-Formula” Air-Tool Lubricant
BC604 1 quart Bostitch Air -Tool Lubricant
100679 O-Ring Lube (1lb. can)
851325 Locite Grade 271 (.02 oz.)
851385 Locite Grade 242 (.02 oz.)
N80K2 Remote Control Kit
ORK1 O-Ring Kit
BK6 Bumper Kit
107704 Foot, Contact Arm
CNTK2 Kit, Contact Trip Conversion (Black Trigger)
TVA6 Trigger Valve Assembly
FIG. 1
FIG. 2
