32
BJ2430N
19. Pr

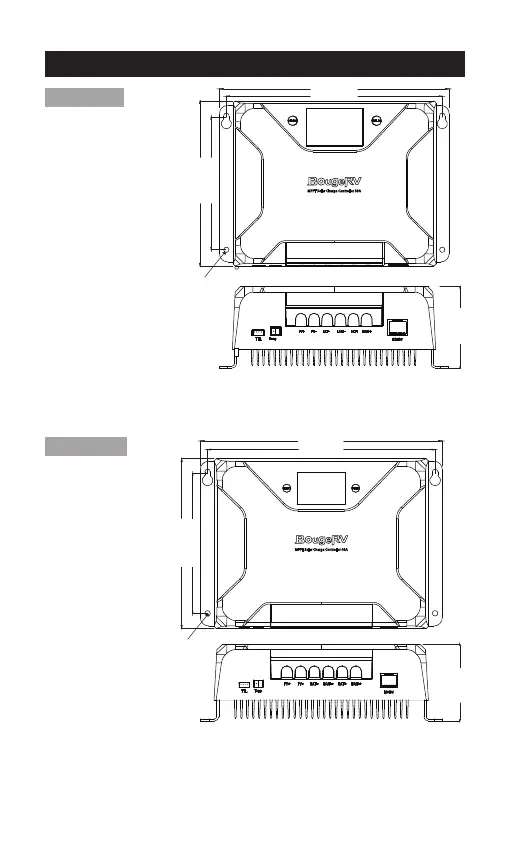

oduct Dimensions
Model: BJ2430N
Product dimension: 185*133*75mm
Fixed hole position:
φ
5mm
185mm
172mm
133mm
107mm
75mm
Model: BJ2440N
Product dimension: 227*159.6*75mm
Fixed hole position:
φ
5mm
BJ2440N
227mm
214mm
159.6mm
132mm
75mm
φ
5mm
φ
5mm
35
37
Table of Contents
Table of Contents
3
Safety Instructions
5
Technical after Services
6
Identification of Parts
7
LCD Display Interface Overview
8
System Wiring
9
Wiring Instructions
9
LCD Display Interface
11
Menu Display Icon
11
Key Operation
11
Working Mode
13
Working Mode 1: Load Mode
13
Working Mode 2: no Load Mode
14
Working Mode 3: Viewing Mode
15
Bluetooth Module
16
Parameter Setting Menu
17
Menu 1: Battery Type Setting(Mode 1, Mode 2)
17
Menu 2: System Voltage(Mode 1, Mode 2)
18
Menu 2.1: Boost Charging Voltage(Mode 1, Mode 2)
18
Menu 2.2: Floating Charging Voltage(Mode 1,Mode 2)
19
Menu 2.3: Boost Charging Reconnect Voltage(Mode 1,Mode 2)
19
Menu 2.4: Equalizing Charging Voltage(Mode 1,Mode 2)
19
Menu 2.5: Over-Discharge Voltage(Mode 1)
19
Menu 2.6: Over-Discharge Delay(Mode 1)
20
Menu 2.7: Over-Discharge Reconnect Voltage(Mode 1)
20
Menu 3: Solar Panel Output Voltage(Mode 1,Mode 2,Mode 3)
20
Menu 4: Solar Panel Output Current(Mode 1,Mode 2,Mode 3)
21
Menu 5: Generated Energy of the Day
21
Menu 6: Load Current(Mode 1,Mode 3)
21
Menu 7: Discharge Energy of the Day(Mode 1, Mode 3)
22
Menu 8: the Controller Temperature(Mode 1, Mode 2, Mode 3)
22
Menu 9: the Battery Temperature(Mode 1, Mode 2,Mode 3)
22
Menu 10: Load Mode(Mode 1)
23
Menu 10.1: Light Control Mode + Duration Mode(Mode 1)
24
Menu 11: Lithium Battery Low Temperature Charging Protection (Mode 1, Mode 2)
24
Menu 12: Load Short Circuit Protection(Mode 1)
25
Menu 13: Charging Current(Mode 1, Mode 2)
25
Menu 14: Constant Voltage Output of Lead Acid Battery(Mode 1, Mode 2)
25
Menu 15: Light Control Voltage(Mode 1)
26
Menu 16: Light Control Delay(Mode 1)
26
Menu 17: Error Code(Mode 1, Mode 2, Mode 3)
26
System Restart & Factory Reset
27
Menu 18: System Restart(Mode 1, Mode 2, Mode 3)
27
Menu 19: Factory Reset(Mode 1, Mode 2, Mode 3)
27
Error Code
28
Base Specification
30
Battery Charge Parameter
32
TTL Communication
33
Rs485
33
CAN Communication(Optional)
33
Charging
34
Charging of Lead-Acid Battery
34
Charging of Lithium Battery
35
Product Dimensions
36
