BÖWE P25 - Maintenance Points

38
11 Maintenance 11

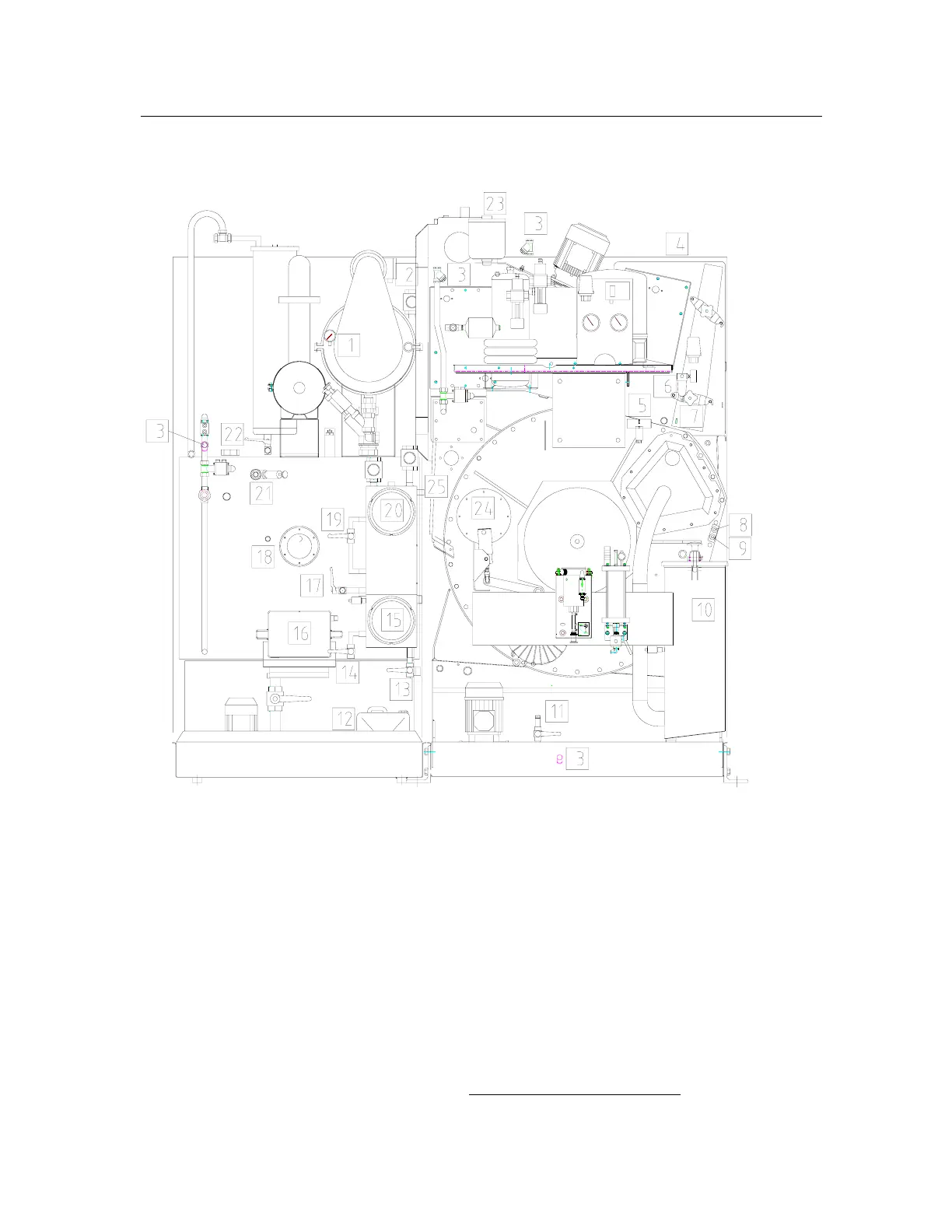

11.2 Maintenance Points 11.2
703903-07A
1 Filter pressure gauge 14 Process water drain valve
2 Sight-glass, filter circuit: 15 Sight-glass, safety separator
3 Strainer 16 Still rake-out door
4 Inspection cover for air cooler 17 Drain valve, water separator:
5 Drying controller 18 Sight-glass, still
6 Compressed air drain 19 Water drain valve
7 Insertion filter 20 Sight-glass, water separator
8 Grease nipple, fan 21 Gas displacement line connection
9 Grease nipple, cage 22 Condenser drain valve
10 Button trap 23 Venting and aeration filter
11 Solvent filling valve 24 Inspection cover, cage flange
12 Process water collecting tank 25 Inspection cover, air channel (on the side)
13 Safety separator drain
Additional maintenance points:
- Tank sight-glass (front side)
- V belt
- Overfill sensor, disposal vessel
P25/P30
