BÖWE P25 - 10 Operating and Monitoring Systems

35
10 Operating and Monitoring Systems 10
703903-06-A

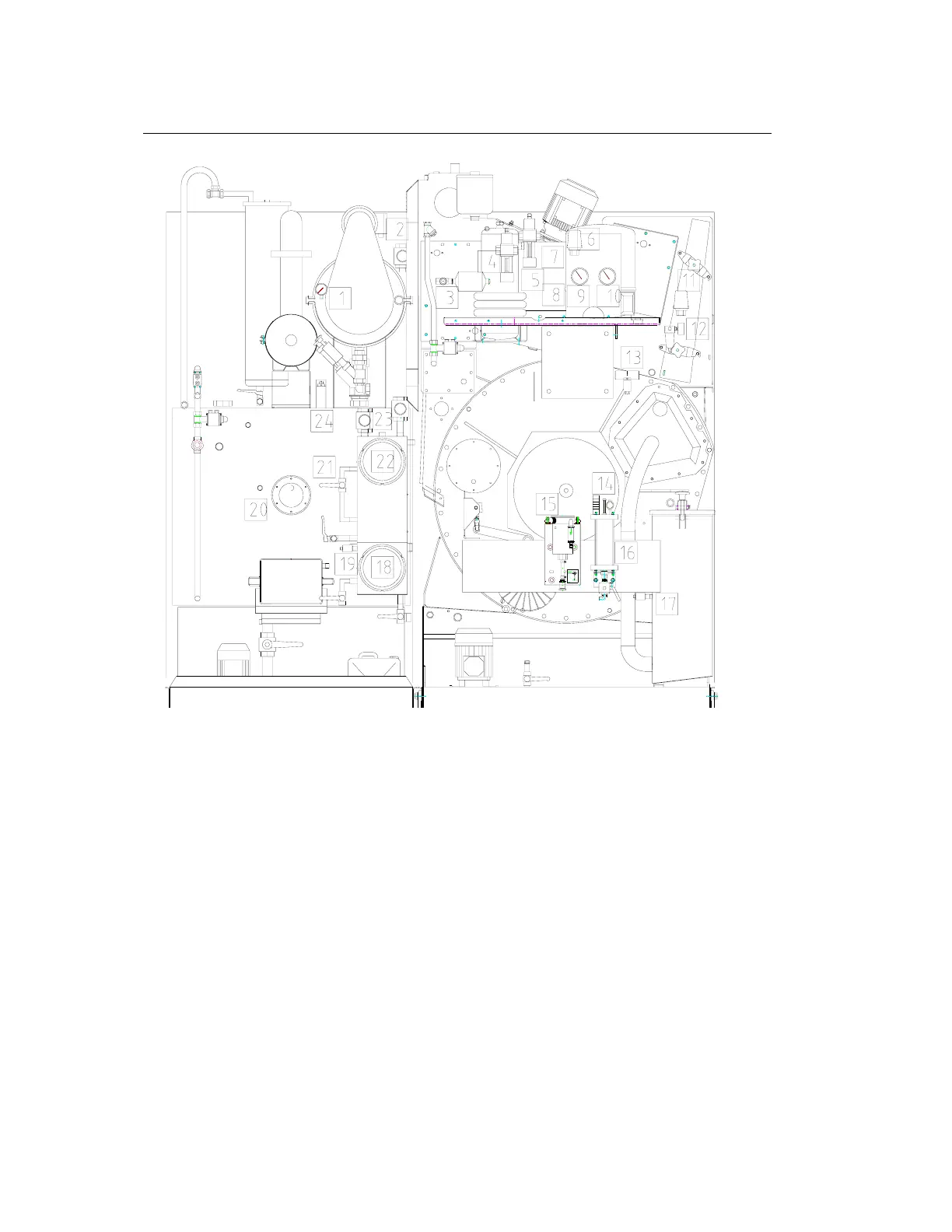

1 Filter pressure gauge 16 Dosing unit
2 Sight-glass, filter circuit: 17 Sensor, high level
3 Sight-glass, refrigeration unit 18 Sight-glass, safety separator
4 Cooling water regulator, distillation 19 Overfill sensor, safety separator
5 Cooling water regulator,
refrigeration unit
20 Sight-glass, still
6 Low cooling water level switch 21 Water drain valve
7 High pressure control switch
(refrigerating):
22 Sight-glass, water separator
8 Low pressure control switch
(refrigerating):
23 Sight-glasses, inlet to water separator
9 Low pressure gauge (refrigerating) 24 Distillation overfill preventer
10 High pressure gauge
(refrigerating)
11 Low air pressure switch Additional operating and monitoring systems:
12 Compressed air display (pressure
gauge)
- Sensor, solvent detergent solution
13 Drying controller - Sight-glasses tanks 1, 2 + 3 (front side):
14 Pushbutton, dosing unit - Overfill sensor, disposal vessel
15 Dosing pump for antifoaming agent
/neutralization agent
P25/P30
