10

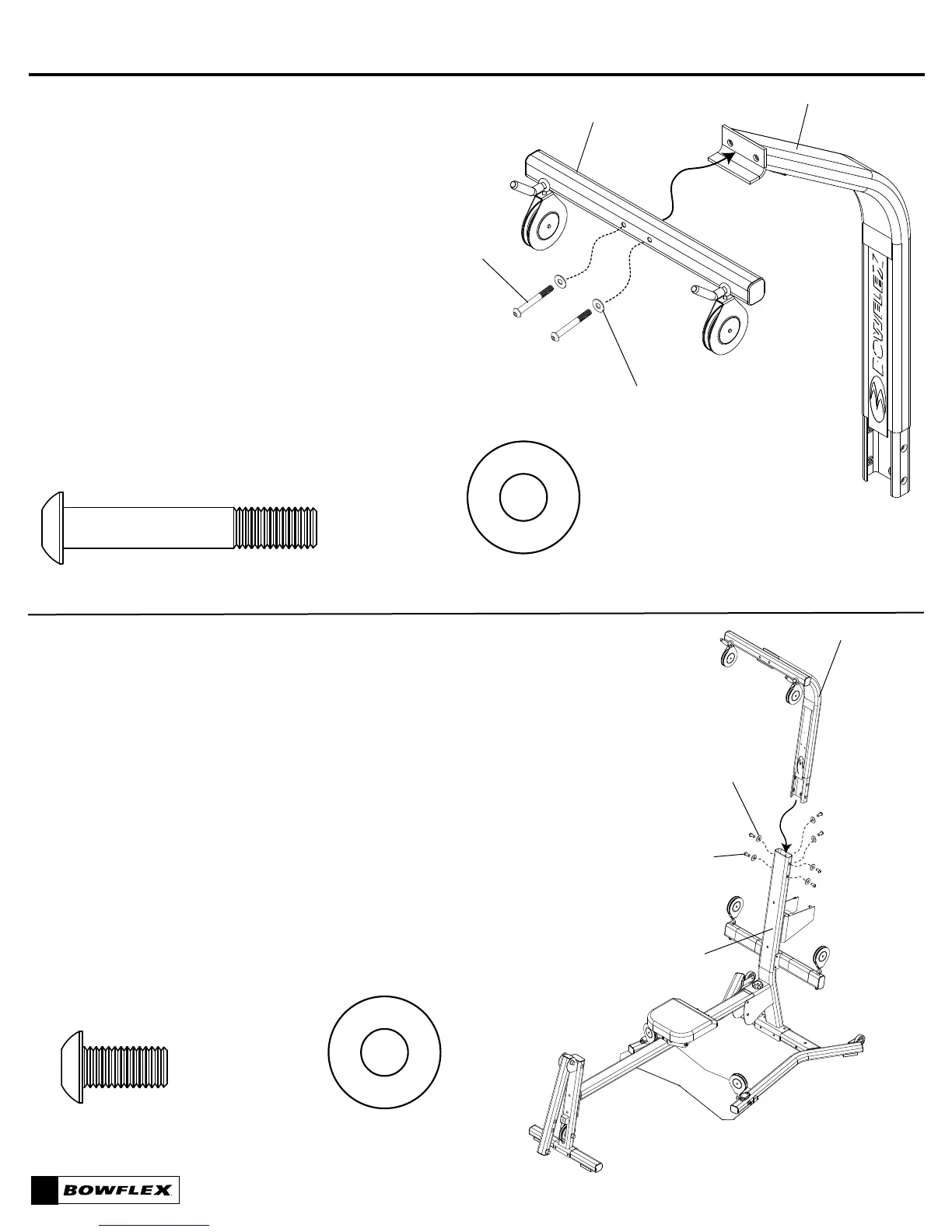

Step 9 Attach Lat Crossbar to Upper Tower
Parts:
• Upper Tower
• Lat Crossbar
Tools:
• 7/32” Allen wrench
9-1 Make sure hooks on Lat Crossbar are
pointing up and Align holes in Lat Bar with
holes in Upper Tower.
9-2 Install and completely tighten hardware.
Step 10 Attach Upper Tower Assembly (from step 9)
Parts:
• Upper Tower Assembly
Tools:
• 7/32” Allen Wrench
10-1 Insert Upper Tower into Lower Tower.
10-2 Install and completely tighten hardware.
Hardware (1:1):
2 Button Head Screw (3/8” X 2 1/2”)
6 Button Head Screw (3/8” X 3/4”)
6 Washer (3/8”)
Hardware (1:1):
2 Washer (3/8”)
3/8”x 2 1/4”
Button Head
Screw
3/8” Washer
Lat Crossbar
Upper Tower
3/8”x 3/4”
Button Head
Screw
3/8” Washer
Lower Tower
Upper Tower
Assembling Your Bowflex Conquest
™
Home Gym
