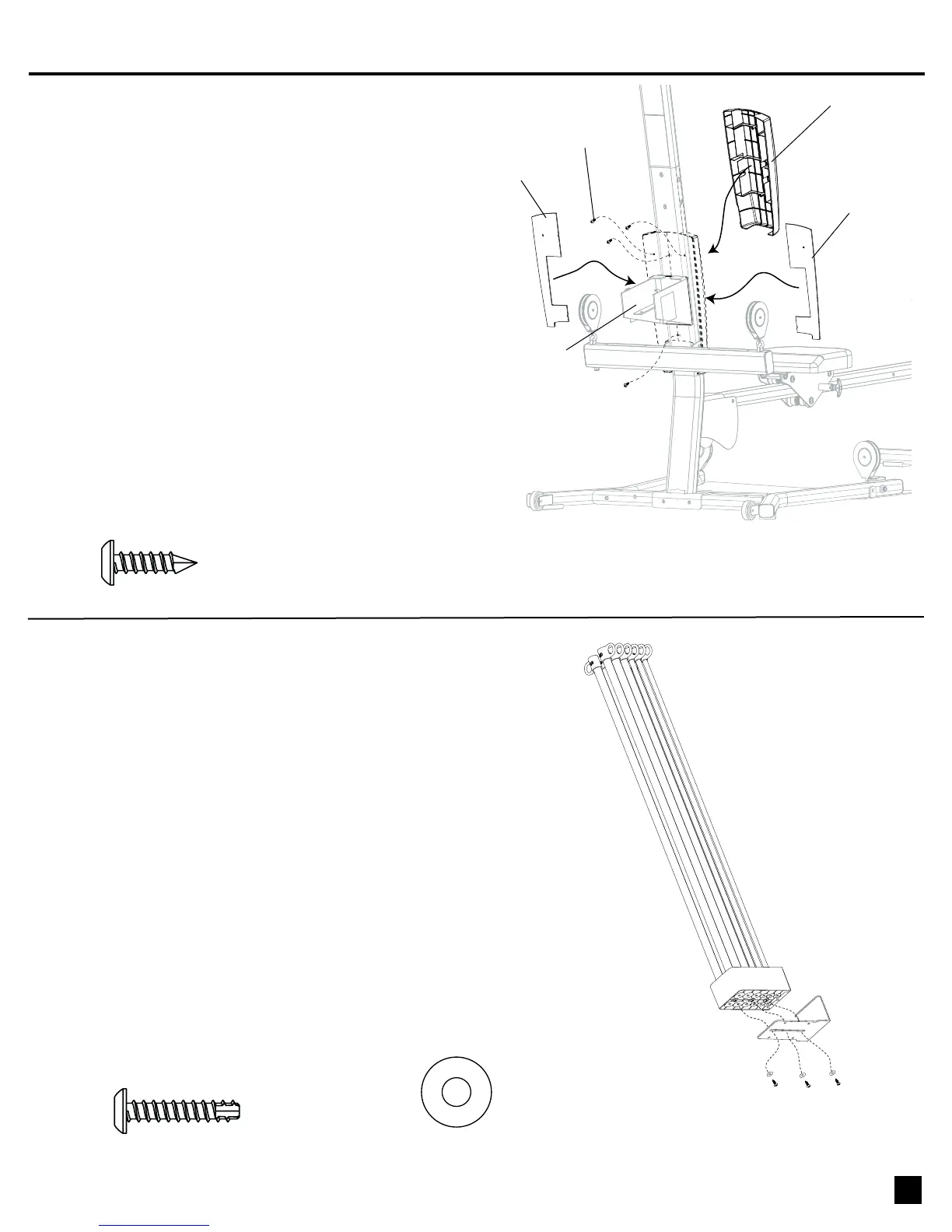

Step 11 Attach Face Plate and Back Panels
Parts:
• Face Plate
• Back Panels
Tools:
• Phillips Head Screwdriver
11-1 Place the Face Plate against the
Lower Tower.
11-2 Position the Back Panels against the back
of the Lower Tower and around the Rod Box.
11-3 Install and completely tighten the hardware.
Face Plate
Back Panel
Back Panel
Rod Box
#10 x .75” Self
Threading
Screw
Hardware (1:1):
4 Self Threading Screw ( #10 x .75” )
Step 12 Attach Rod Box Mount
Parts:
• Rod Pack
• Rod Box Mount
Tools:
• Phillips Head Screwdriver
12-1 Place the Rod Box Mount on the bottom of the
Rob Pack.
12-2 Install and completely tighten the hardware.
Hardware (1:1):
3 Self Threading Screw ( #10 x 1” )
3 Washer (1/4”)
