Step 7 Attach Lower Tower to Base Assembly
Parts:
• Seat Rail Assembly (from step 5)
• Leg Extension Assembly (from step 6)
Tools:
• 7/32” Allen wrench
• 9/16” Wrench or Adjustable Wrench
7-1 Align the holes in the Seat Rail with the
holes in the Leg Extension Assembly.
7-2 Install and completely tighten
the hardware
Hardware (1:1):
3 Washer (3/8”)
2 Button Head Screw (3/8” X 2 3/4”)
1 Nylock Nut (3/8”)
Step 8 Attach Seat Rail
Parts:
• Seat Rail Assembly (from step 7)
• Locking Knob
Tools:
• 7/32” Allen wrench
• 9/16” Wrench or Adjustable Wrench
8-1 Remove twist tie holding bushings
in seat rail.
8-2 Align bushings in Seat Rail with
holes in Seat Rail Bracket.
8-3 Install hardware and tighten but allow seat rail to pivot freely.
8-4 Install Locking Knob.
Hardware (1:1):
2 Washer (3/8”)
1 Button Head Screw (3/8” X 4 1/4”)
1 Nylock Nut (3/8”)

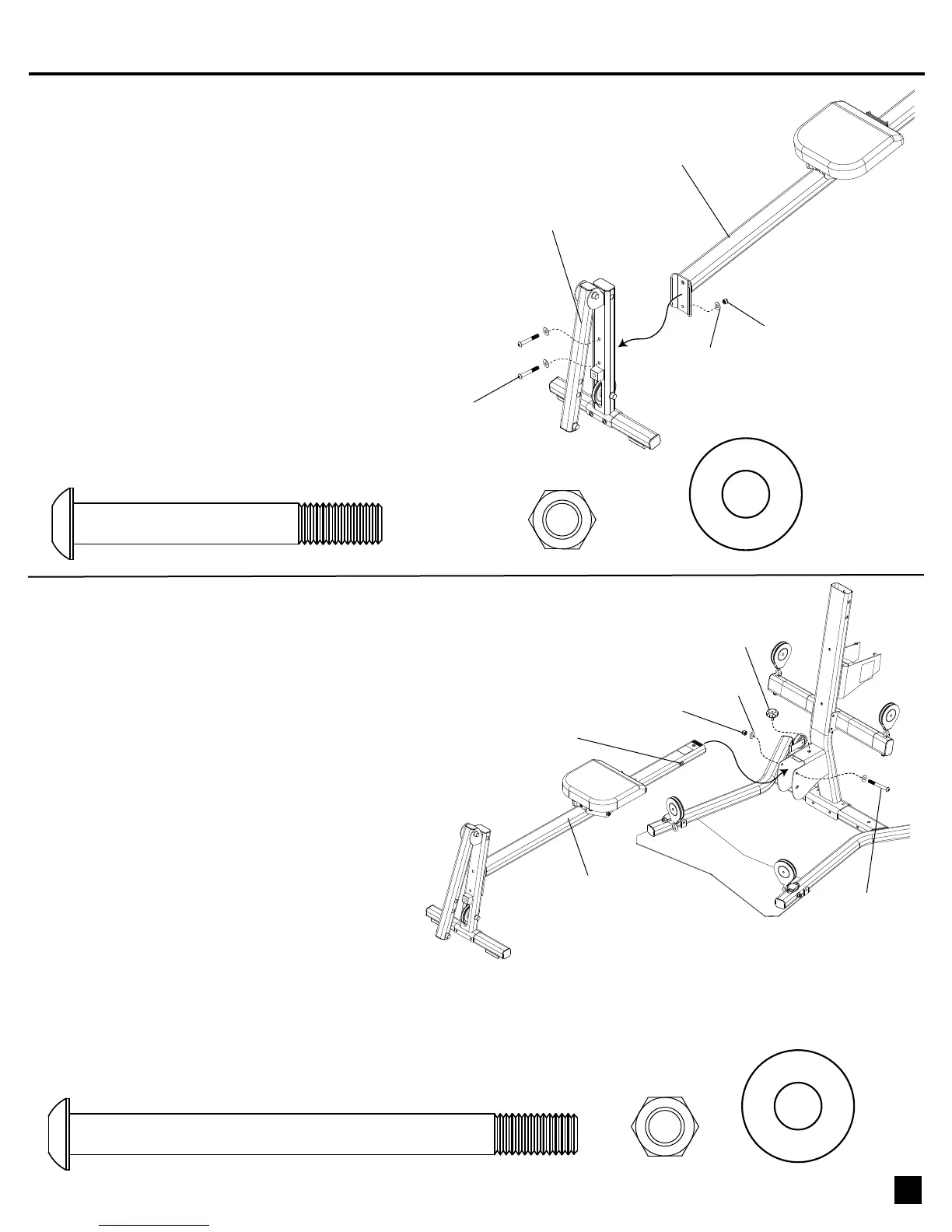

3/8” Nylock Nut
3/8”x 2 3/4”
Button Head
Screw
3/8” Washer
Seat Rail Assembly
Leg Extension Assembly
3/8”x 4 1/2”
Button Head
Screw
3/8” Washer
Seat Rail Assembly
3/8” Nylock Nut
Locking Knob
Bushing
