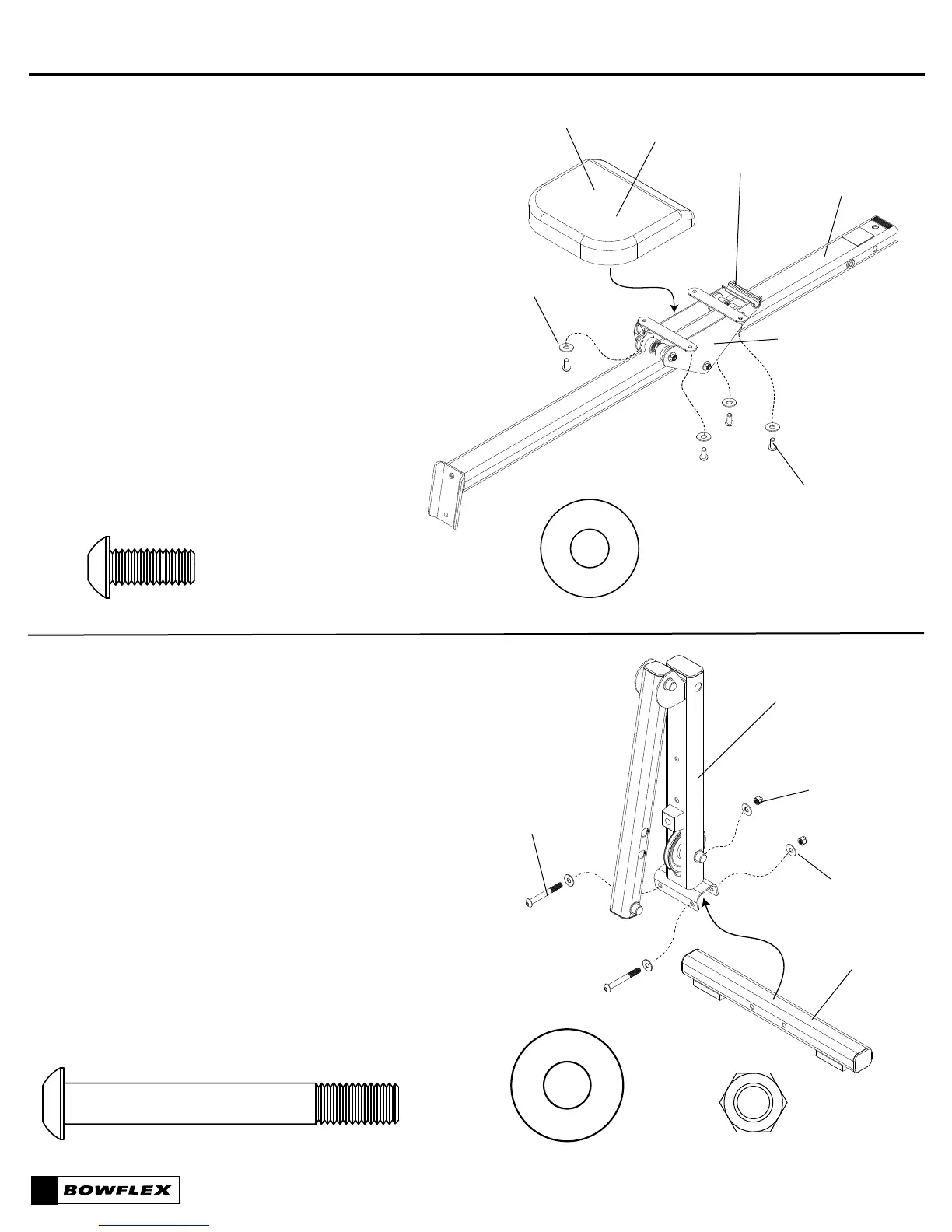

Step 5 Attach Seat to Seat Roller Bracket
Parts:
• Seat
• Seat Rail with Seat Roller Bracket
Tools:
• 3/16” Allen wrench
5-1 Align Seat with holes in Seat Roller Bracket.
Make sure the beveled edge of the Seat is
pointing toward the U shaped channel on
the Seat Roller Bracket.
5-2 Install and completely tighten hardware.
Step 6 Attach Front Stabilizer to Leg Extension Assembly
Parts:
• Leg Extension Assembly
• Front Stabilizer
Tools:
• 7/32” Allen Wrench
• 9/16” Wrench or Adjustable
6-1 Align the holes in the Front Stabilizer with
the holes in the Leg Extension Assembly.
6-2 Install and completely tighten hardware.
Seat
5/16”x 3/4” Button
Head Screw
Hardware (1:1):
4 Button Head Screw (5/16” X 3/4”)
4 Washer (5/16”)
2 Button Head Screw (3/8” X 3”)
4 Washer (3/8”)
2 Nylock Nut (3/8”)
Hardware (1:1):
Seat Rail
Seat Roller Bracket
5/16” Washer
Beveled Edge
U shaped Channel
3/8”x 3”
Button Head
Screw
3/8” Washer
3/8” Nylock Nut
Leg Extension Assembly
Front Stabilizer
Assembling Your Bowflex Conquest
™
Home Gym
