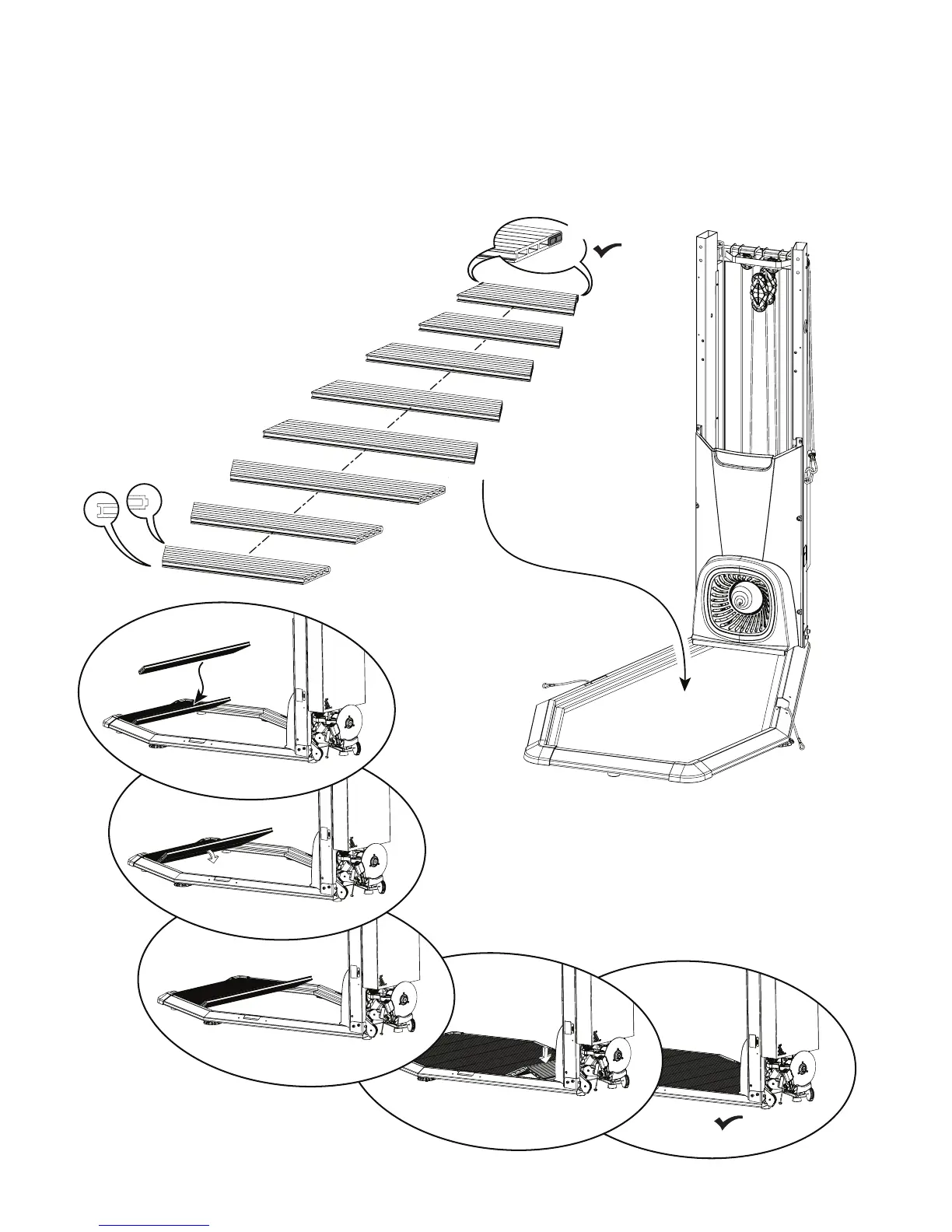

7. Pivot, Connect, and Place the Platform Decking into the Platform Frame Assembly
Note: Start with the piece marked “8” and work toward the Frame Assembly. With the initial piece pivoted up and toward the Frame
Assembly, insert the tab of the next piece and pivot the initial piece downward. With the last two pieces (marked “1” and “2”), place them so they form
a ‘v’ in the Platform Frame. With your foot centered on the piece marked ‘2’, push downward to set into place.
1
3
2
4
5
6
7
8
X2
