Bowflex HVT - Parts Identification

Owner’s Manual
7
Parts
( 2 BOXES )
BOX 1
11
9
10
9
1
2
3
4
5
6
7
8
27
40
39
12
14
15
16
38
17
42
34
25
14
35
33
23
22
26
21
32
20
19
13
36
24
30
29
18
41
28
31
37

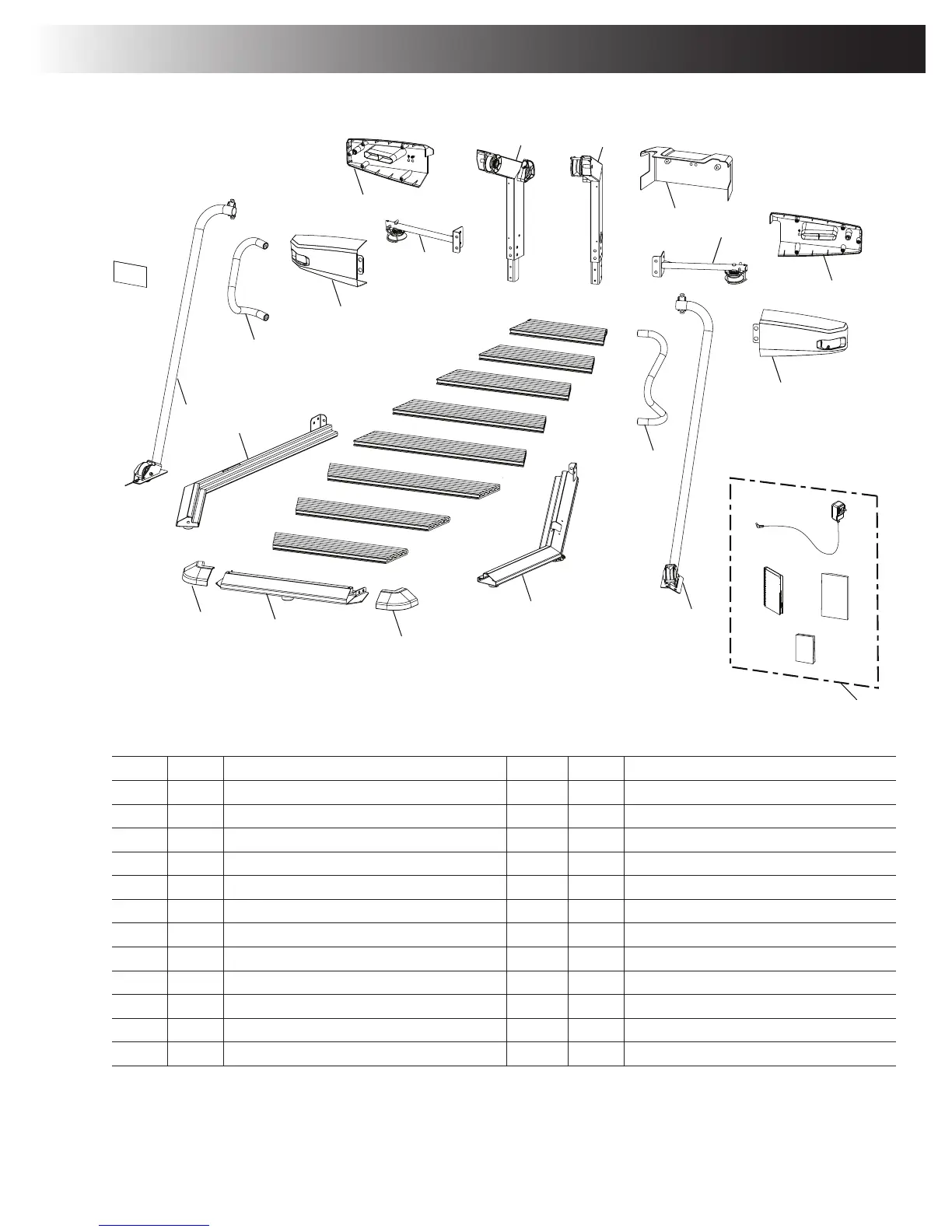

Item Qty Description Item Qty Description
1 - 8 1 each Platform Decking 20 1 Upper Pulley Arm, Left
9 2 Platform Corner Shroud 21 1 Middle Pulley Arm, Left
10 1 Platform Frame, Front 22 1 Middle Shroud, Left Back
11 1 Right Platform Frame 23 1 Middle Shroud, Left Front
12 1 Support Arm, Right 24 1 Hardware Card
13 1 AC Power Adapter 25 1 Support Arm, Left
14 2 Handlebar 26 1 Left Platform Frame
15 1 Middle Shroud, Right Front 27 1 Document Kit
16 1 Middle Shroud, Right Back 28 1 Quick Start Guide
17 1 Middle Pulley Arm, Right 29 1 Training Guide
18 1 Rear Shroud, Upper 30 1 Assembly / Owner’s Manual
19 1 Upper Pulley Arm, Right
