Bowflex Max Total 16/40 - Page 141

141

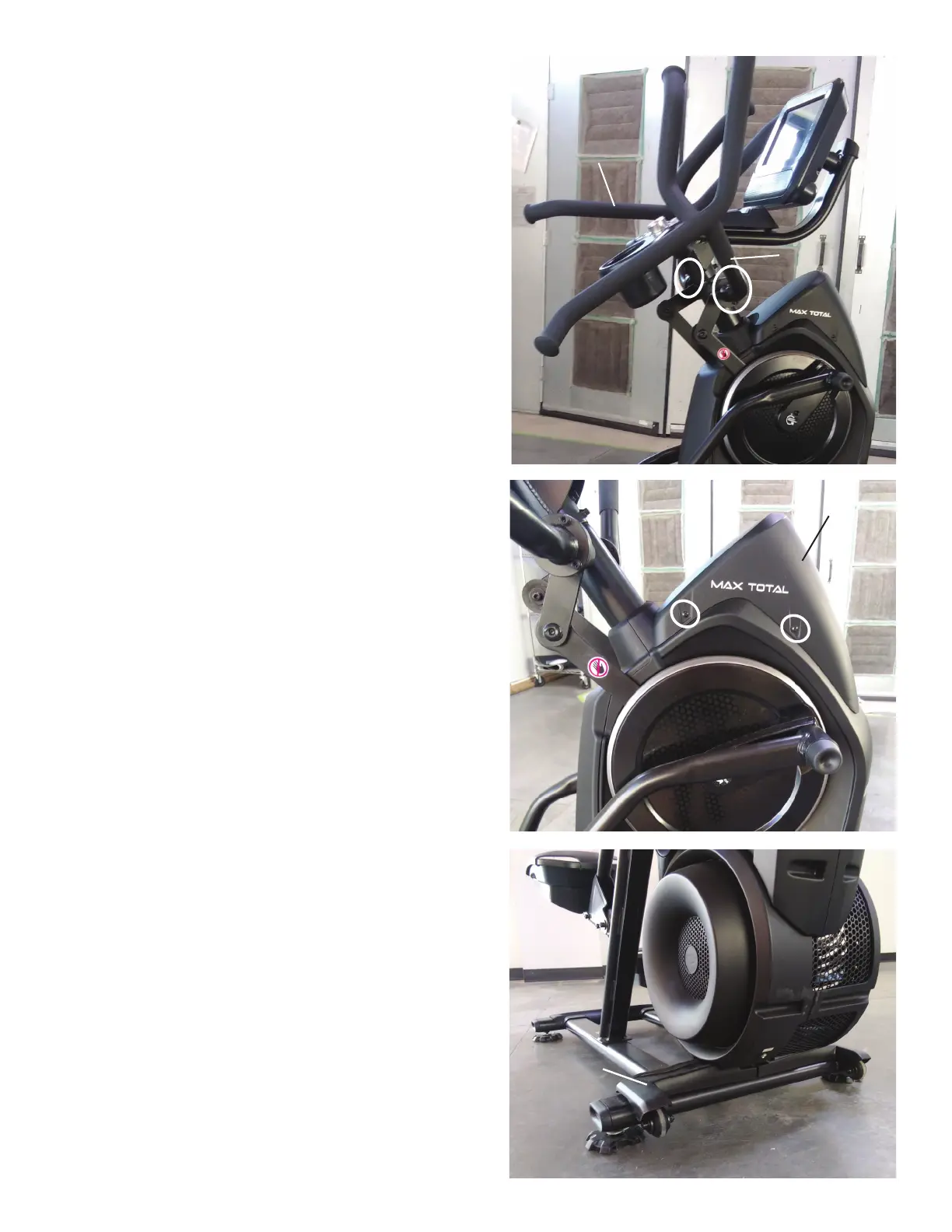

Note: Your machine may not match the images provided exactly.
1. Unplug the AC Adapter from the wall outlet and machine.
2. Using a 6mm hex wrench, remove the indicated hardware from the
Right and Left Upper Handlebar.
Note: Be aware that the Right and Left Upper Handlebar must be sup-
ported when removing the hardware.
3.Usinga#2Phillipsscrewdriver,removethe4screws(2indicatedon
one side) from the Upper Shroud.
4.RemovetheRightStabilizerShroudfromthemachine.
Right Stabilizer
Shroud
Upper Shroud
Left Upper
Handlebar
Right Upper
Handlebar
