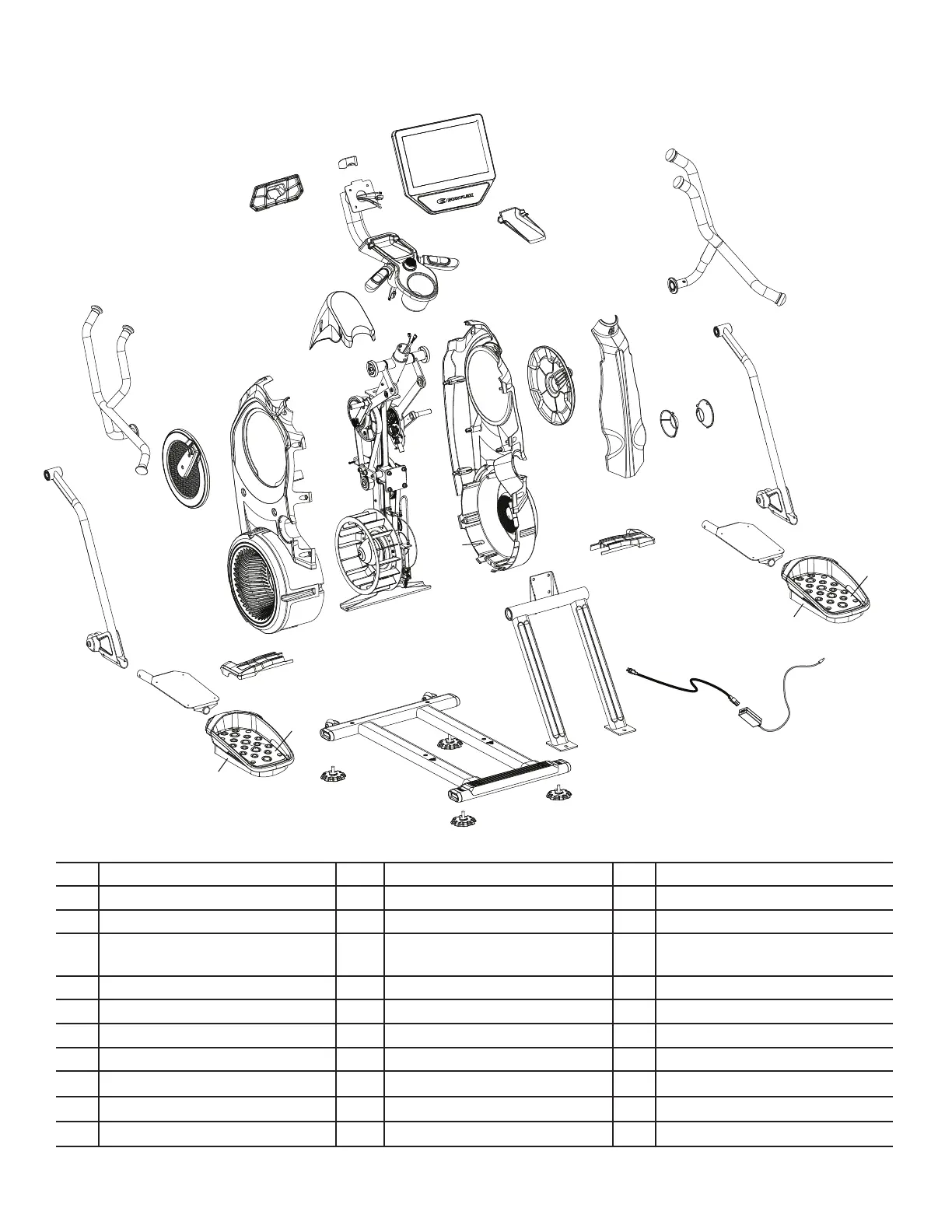

Bowflex Max Total 16/40 - Maintenance Parts Exploded View

9
Maintenance Parts
C
A
F
FF
CC
S
T
G
I
H
J
K
W
Y
BB
Z
O
O
Q
Q
O
O
L
R
H
DD
L
M
K
J
U
N
M
N
P
AA
X
EE
V
E
B
D
GG
KK
JJ
II
PP
OO
NN
LL
MM
QQ
HH
A Console Assembly L Pedal W Shroud, Right
B Static Handlebars Cap M Foot Pad X Power Inlet
C Console Rear Cover N Foot Pad Insert Y Shroud, Right Fan
D Upper Wiring Harness/Resistance
Cable/Heart Rate Cable
O Leveler Z Rail Assembly
E Static Handlebar P Stabilizer AA AC Adapter
F Upper Shroud Q Transport Wheel BB Stabilizer Shroud, Right
G Shroud, Left R Stabilizer Shroud, Left CC Cap
H Crank Cover S Shroud, Left Fan DD Shroud, Rear
I Dynamic Handlebar, Left T Fan Assembly Inserts EE Tray Insert
J Leg U Frame Assembly FF Dynamic Handlebar, Right
K Roller V Lower Wiring Harness
