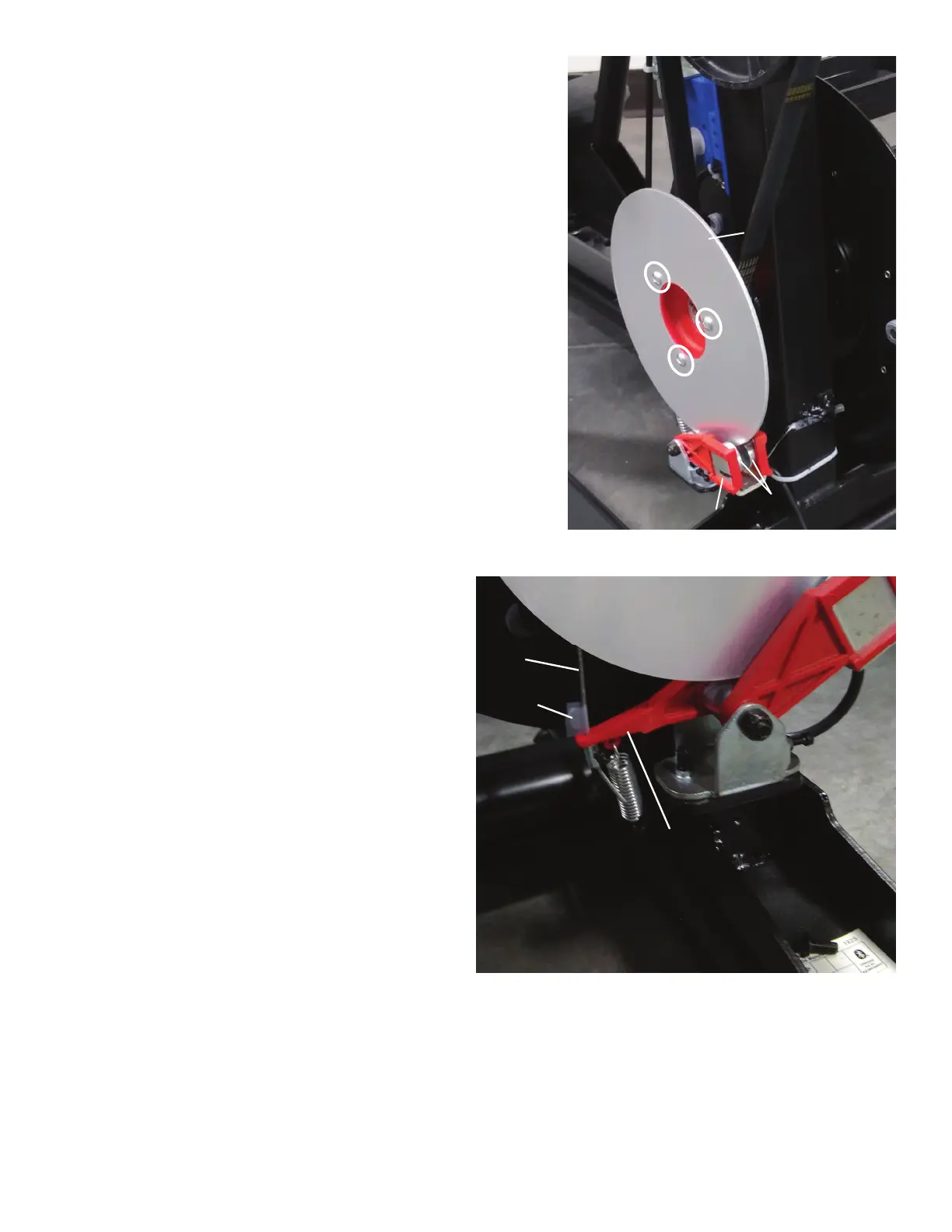

6.Usinga#2Phillipsscrewdriver,removethe3indicatedscrews
from the Brake Disc.
7. Carefully remove the Brake Disc from the machine.
8. Place a piece of tape (as a marker) on the Brake Cable immediate-
ly above the Brake Arm. During re-assembly, the tape will be a guide
for the placement of the new Brake Arm on the Brake Cable.
Brake Disc
Brake Assembly
Magnets
Brake Assembly
Brake Arm
Brake
Cable
Piece of tape
